APC | SKU:
AP6120A
6% off

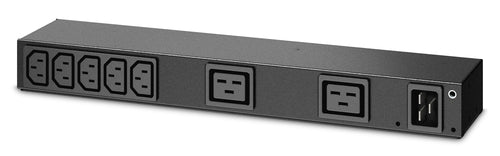

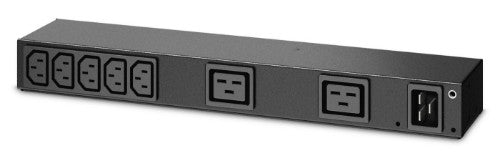

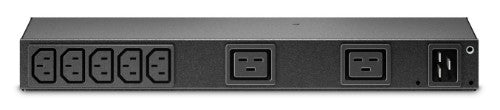

APC AP6120A power distribution unit (PDU) 7 AC outlet(s) 0U/1U Black
€107.83
€115.23
Unit price
/
Unavailable
Shipping calculated at checkout.
APC AP6120A power distribution unit (PDU) 7 AC outlet(s) 0U/1U Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19, Black
Description
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Basic |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | UL/C-UL, VDE, CE |
| Rack capacity | 0U/1U |
| Ports & interfaces | |
| AC outlets quantity | 7 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| Features | |
| Certification | UL/C-UL, VDE, CE |
| Power | |
| Maximum power | 3680 W |
| Nominal input voltage | 100-240 V |
| Nominal output voltage | 100-240 V |
| Maximum current | 20 A |
| Maximum input current per phase | 16 A |
| Load capacity | 3680 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL/C-UL, VDE, CE |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 1.56 kg |
| Width | 4.36 mm |
| Depth | 9.29 mm |
| Height | 38.8 mm |
| Technical details | |
| Compliance certificates | RoHS |
