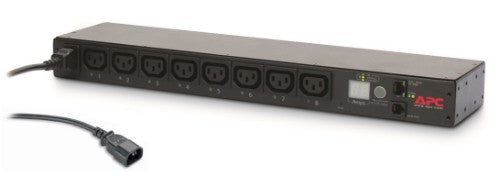

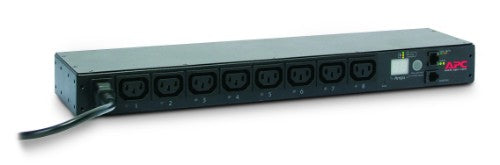

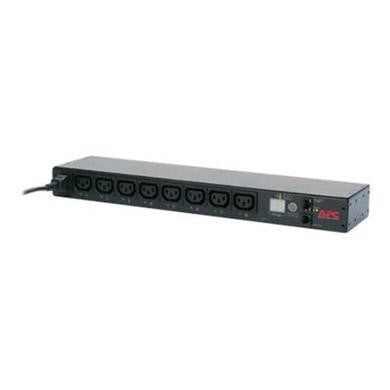

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord

NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord

Description

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Specifications

Design
PDU types	Metered, Switched
Mounting	Horizontal/Vertical
Product colour	Black
Certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Rack capacity	0U/1U
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Input connection type	IEC-320 C14
Features
Cable length	1.98 m
Certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Management features
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length	1.98 m
Power
Maximum power	2300 W
Nominal input voltage	200-230 V
Nominal output voltage	208-230 V
Maximum current	10 A
Maximum total current draw per phase	10 A
Maximum input current per phase	10 A
Load capacity	2300 VA
AC input frequency	50 - 60 Hz
Certificates
Certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	1 - 15000 m
Weight & dimensions
Weight	2.27 kg
Width	445 mm
Depth	108 mm
Height	44 mm
Package width	470 mm
Package depth	343 mm
Package height	70 mm
Package weight	3.45 kg
Packaging content
Packaging content	Installation Guide, Rack Mounting Brackets, User Manual
Packaging data
Package width	470 mm
Package depth	343 mm
Package height	70 mm
Package weight	3.45 kg
Technical details
Total carbon footprint (kg of CO2e)	915.89
Compliance certificates	RoHS
Logistics data
Total carbon footprint (kg of CO2e)	915.89
