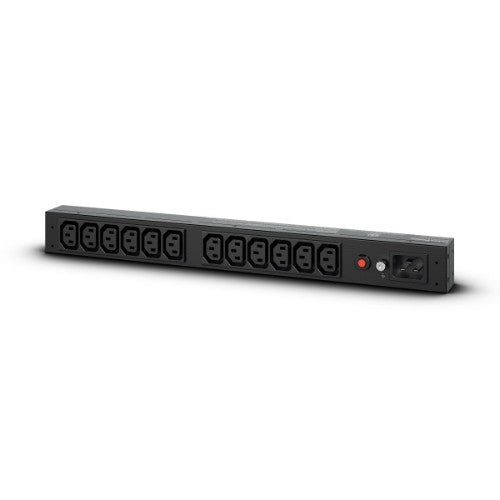

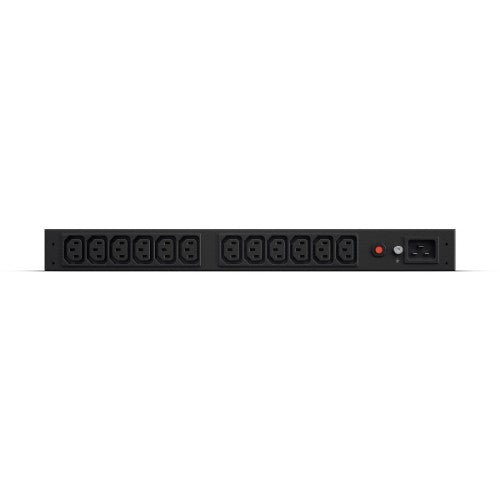

CyberPower PDU20BHVIEC12R power distribution unit (PDU) 12 AC outlet(s) 1U Black

Power Distribution Units

Key Features

• Overload Protection
• Adjustable Mounting Brackets
• Industrial-grade Metal Housing
• Cord Retention Tray

Description

The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

- 12 IEC-320 C13 output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 208/230V - 50/60Hz
- 1U rack mount
- 10-ft. power cord

Specifications

Design
Type	Single-phase
PDU types	Basic
Mounting	Horizontal/Vertical
Product colour	Black
Certification	UL60950_1 ETL, CSA C22.2
Rack capacity	1U
Housing material	Steel
Ports & interfaces
AC outlets quantity	12 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C20 coupler
Features
Cable length	3.05 m
Certification	UL60950_1 ETL, CSA C22.2
Surge protection	Yes
Ergonomics
Cable length	3.05 m
Power
Nominal input voltage	200 - 240 V
Nominal output voltage	200 - 240 V
Power protection features	Overload
Maximum current	16 A
Surge protection	Yes
AC input frequency	50 / 60 Hz
Circuit breaker	Yes
Certificates
Certification	UL60950_1 ETL, CSA C22.2
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-15 - 45 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	32 - 95 °F
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	900 g
Weight (imperial)	0.907 kg (2 lbs)
Dimensions (W x D x H) (imperial)	444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75")
Width	445 mm
Depth	38.1 mm
Height	44.5 mm
Package width	530 mm
Package depth	330 mm
Package height	233 mm
Package weight	15 kg
Packaging content
Packaging content	PDU20BHVIEC12R, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit
Packaging data
Package width	530 mm
Package depth	330 mm
Package height	233 mm
Package weight	15 kg
Technical details
Sustainability compliance	Yes
Warranty period	2 year(s)
Compliance certificates	RoHS
Logistics data
Warranty period	2 year(s)
