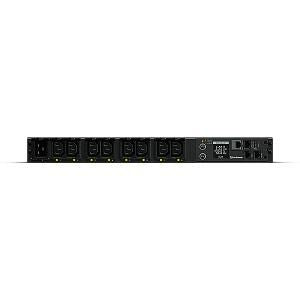

CyberPower PDU41005 power distribution unit (PDU) 8 AC outlet(s) 1U Black

Switched, 8 x C13 Out

Key Features

• Real-Time Local/Remote Monitoring and Switching
• Controllable Receptacles with Power Sequencing
• User Configurable Color LCD
• Digital Real-time Load Display
• Firmware Upgrade via USB
• PowerPanel® Management Software

Description

CyberPower PDU41005 Switched series power distribution unit provides output from a UPS unit, generator, or utility power to multiple connected devices in datacenter environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off.

The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.

Specifications

Design
Type	Single-phase
PDU types	Managed, Switched
Mounting	Horizontal
Display	LCD
Product colour	Black
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
Rack capacity	1U
Housing material	Steel
Ports & interfaces
USB ports quantity	1
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C20 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	4
Features
Cable length	3.05 m
LED indicators	Yes
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
Daisy chain	Yes
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Bundled software	PowerPanel Business, PowerPanel Enterprise
Management features
Supported network protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
Firmware upgradeable via	USB
Firmware upgradeable	Yes
Ergonomics
Cable length	3.05 m
LED indicators	Yes
Display	LCD
Power
Nominal input voltage	100 - 240 V
Nominal output voltage	100 - 240 V
Maximum current	16 A
AC input frequency	50 / 60 Hz
Certificates
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UL
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-15 - 60 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	32 - 140 °F
Operating altitude	0 - 3500 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	2.1 kg
Width	433 mm
Depth	112 mm
Height	44 mm
Package width	500 mm
Package depth	250 mm
Package height	65 mm
Package weight	3.9 kg
Packaging content
Packaging content	PDU41005, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable
Bundled software	PowerPanel Business, PowerPanel Enterprise
Packaging data
Package width	500 mm
Package depth	250 mm
Package height	65 mm
Package weight	3.9 kg
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UL
Security
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
