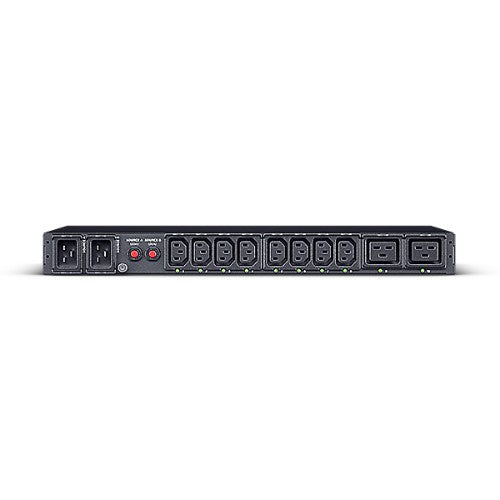

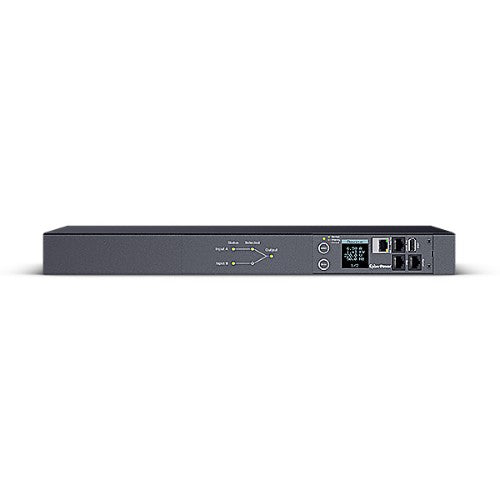

CyberPower PDU44005 power distribution unit (PDU) 10 AC outlet(s) 1U Black

Power Distribution Units

Key Features

• Real-time Local/Remote Monitoring and Switching
• Dual Inputs
• Industrial-grade Metal Housing
• User Configurable Color LCD
• LED Status Indicator
• Support Environmental Sensor
• PowerPanel Management Software
• Cord Retention Tray
• Controllable Receptacles with Power Sequencing
• Quick Transfer Time (Total ＜ 10 ms)
• Digital Real-time Load Display
• Hot-swappable LCD Design
• Firmware Upgrade via USB
• User-upgradeable Firmware
• Adjustable Mounting Brackets
• IEC Receptacle Locking

Description

CyberPower PDU44005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.

The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port also supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

Specifications

Design
Type	Single-phase
PDU types	Managed, Monitored, Switched
Mounting	Horizontal
Display	LCD
Product colour	Black
Certification	CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368
Rack capacity	1U
Housing material	Steel
Ports & interfaces
USB ports quantity	1
AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC 60320
Ethernet LAN (RJ-45) ports	4
Features
Cable length	3.05 m
LED indicators	Yes
Certification	CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368
Daisy chain	Yes
Management features
Supported network protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog
Firmware upgradeable	Yes
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	3.05 m
LED indicators	Yes
Display	LCD
Power
Nominal input voltage	200 - 240 V
Maximum current	16 A
AC input frequency	50 - 60 Hz
Certificates
Certification	CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368
Compliance certificates	CE, RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-15 - 55 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	3.4 kg
Width	433 mm
Depth	215 mm
Height	44 mm
Package width	500 mm
Package depth	398 mm
Package height	125 mm
Package weight	6 kg
Packaging content
Cables included	Serial
Manual	Yes
Rack mount kit	Yes
Packaging data
Package width	500 mm
Package depth	398 mm
Package height	125 mm
Package weight	6 kg
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Logistics data
Country of origin	China
