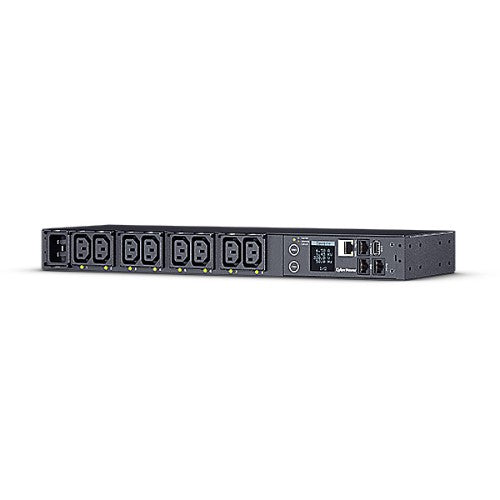

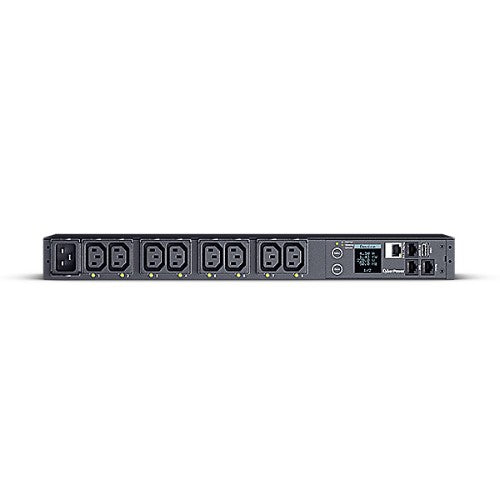

CyberPower PDU81005 power distribution unit (PDU) 8 AC outlet(s) 1U Black

Power Distribution Units

Key Features

• Real-time Local/Remote Monitoring and Switching of Individual Outlet
• Work under High Temperature
• ±1% Measurement Accuracy
• Digital Real-time Load Display
• Hot-swappable LCD Design
• LED Status Indicator
• Support Environmental Sensor
• PowerPanel Management Software
• Cord Retention Tray
• Controllable Receptacles with Power Sequencing
• Ultra Low Power Consumption
• Industrial-grade Metal Housing
• User Configurable Color LCD
• Rotatable LCD for Proper Display Orientation
• Firmware Upgrade via USB
• User-upgradeable Firmware
• Adjustable Mounting Brackets
• IEC Receptacle Locking

Description

Streamline capacity planning and power management with the CyberPower PDU81005 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, automated load shedding, controlled power-cycling and more.

The PDU81005 supports inputs between 100-240V and includes eight (8) IEC-320 C13 outlets and a single IEC-320 C20 input power plug. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81005 is protected by a three-year limited warranty.

Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design
Safeguards against accidental power shutdown.

Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

Per Outlet Power Metering
Provides information on the amount of power being drawn from each outlet, each circuit and the PDU as a whole.

CyberPower Management Console
A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.

Remote and Local Monitoring
Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.

Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU.

Digital Display
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

1U Mounting Brackets
Space-efficient 1U design allows PDU to be installed horizontally or vertically, under a counter or via wall mount.

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

Specifications

Design
Type	Single-phase
PDU types	Monitored, Switched
Mounting	Horizontal
Display	LCD
Product colour	Black
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
Rack capacity	1U
Housing material	Steel
Ports & interfaces
USB ports quantity	1
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C20 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	4
Features
Cable length	3.05 m
LED indicators	Yes
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
Daisy chain	Yes
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Bundled software	PowerPanel Business, PowerPanel Enterprise
Management features
Supported network protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
Firmware upgradeable via	USB
Firmware upgradeable	Yes
Ergonomics
Cable length	3.05 m
LED indicators	Yes
Display	LCD
Power
Nominal input voltage	100 - 240 V
Nominal output voltage	100 - 240 V
Maximum current	16 A
AC input frequency	50 / 60 Hz
Certificates
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-15 - 65 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	32 - 140 °F
Operating altitude	0 - 3500 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	2.1 kg
Width	433 mm
Depth	112 mm
Height	44 mm
Package width	500 mm
Package depth	250 mm
Package height	65 mm
Package weight	3.9 kg
Packaging content
Packaging content	PDU81004, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable
Bundled software	PowerPanel Business, PowerPanel Enterprise
Packaging data
Package width	500 mm
Package depth	250 mm
Package height	65 mm
Package weight	3.9 kg
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS
Security
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
