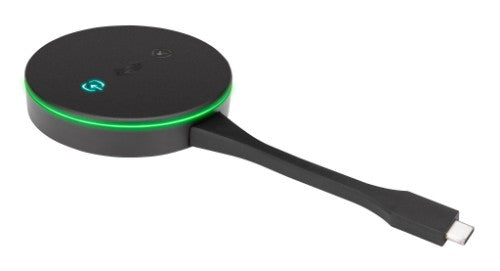

Crestron AM-TX3-100-I wireless display adapter USB Full HD Desktop

AirMedia Series 3 Connect Adaptor, WiFi 6, USB-C (v2.0)

Key Features

• Connects to a personal device using an integrated USB‑C® connector
• Shares content up to 4K30 resolution within seconds of connecting to a personal device
• Coming Soon: Provides access to Wireless Conferencing peripherals connected to a paired AM‑3100‑WF-I or AM‑3200‑WF-I AirMedia Series 3 Receiver1
• Wirelessly pairs with a Wi‑Fi® network capable AirMedia Series 3 Receiver
• Pair up to eight AirMedia Adaptors with a single Wi‑Fi® network capable AirMedia Series 3 Receiver
• Includes backlit capacitive touch buttons for convenient content sharing control
• No software or driver installation required

Description

The AirMedia® Connect Adaptor (AM-TX3-100-I) enables wireless presentation and conferencing1 when paired with a Wi-Fi® network capable AirMedia Series 3 Receiver. Deploy the AM-TX3-100-I alongside an AirMedia Series 3 Receiver in conference rooms, huddle rooms, lounges, lobbies, or almost any space to establish a productive meeting environment.

A System Solution
The AM-TX3-100-I works alongside a Wi-Fi network capable AirMedia Series 3 Receiver for a complete system solution. Built-in Wi-Fi network connectivity creates a point-to-point network between the adaptor and the receiver for seamless connectivity without interruption. Easily pair up to eight adaptors to a single receiver. Store up to four AM-TX3-100-I Connect Adaptors in the AM-TX3-100-CRADLE (sold separately).

Simple Connectivity
Using the integrated USB-C® cable, connect the AM-TX3-100-I to a personal device for seamless wireless presentation on an in-room display. Because USB-C offers native video communication, no software installation is required on the personal device.

Rapid, High‑Resolution Presentation
After connecting the AM-TX3-100-I to a personal device, share content with up to 4K30 resolution in seconds. Use the LED backlit, capacitive touch buttons to start, stop, or pause the presentation at any time.

Seamless Wireless Conferencing
When the AM-TX3-100 is connected to a personal device via USB-C, that device can access peripherals2 connected to a paired Wireless Conferencing-capable AirMedia Receiver (AM‑3100‑WF-I or AM‑3200‑WF-I). These peripherals can then be used on the personal device with Microsoft Teams® or Zoom™ software.

Enterprise-Grade Security
The AirMedia platform is an enterprise-grade solution that can be deployed across hundreds of spaces, and set up easily using just a web browser, Crestron Fusion® software, or the XiO Cloud® service. It employs standard network security protocols, including 802.1x network access control, Active Directory® authentication, and AES content encryption to protect privacy and ensure compliance with your organization’s IT policies.

Specifications

Features
Form factor	Desktop
Full HD	Yes
Output interface	Wi-Fi
Wi-Fi standards	Wi-Fi 6 (802.11ax)
USB version	USB 2.0
USB connector type	USB Type-C
Maximum video resolution	3840 x 2160 pixels
Frame rate	30 fps
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colour	Black
Device interface	USB
LED indicators	Yes
USB port	Yes
USB ports quantity	1
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Weight & dimensions
Width	17 mm
Depth	178 mm
Height	75 mm
Weight	90 g
