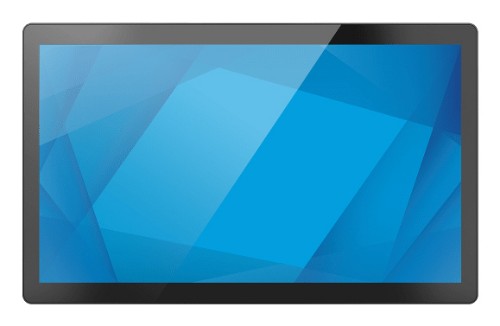

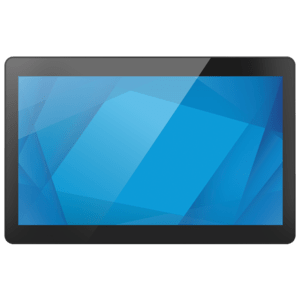

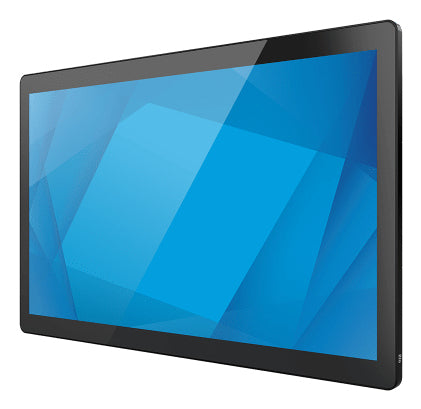

Elo Touch Solutions I-Series 3.0 Intel® Celeron® 7305L 43.2 cm (17") 1280 x 1024 pixels Touchscreen All-in-One PC 8 GB DDR5-SDRAM 128 GB SSD Wi-Fi 6 (802.11ax) Black

17-inch I-Series 3 with Intel Touchscreen Computer, 5:4 display, No OS, Celeron, 8GB RAM, 128GB SSD, Projected Capacitive 10-touch, Zero-Bezel, Antiglare, Wi-Fi, Ethernet, Bluetooth 5.3, with Stand, Black, Worldwide

Key Features

• 10-touch TouchPro PCAP
• Fanless, IP54 rated design
• Full HD IPS Touchscreen
• Easy to clean edge-to-edge glass
• 50,000 MTBF

Description

Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.

Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.

Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

Specifications

Display
Screen shape	Flat
HD type	Not supported
Display surface	Anti-glare
Panel type	TFT
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
LED backlight	Yes
Touchscreen	Yes
Touch technology	Multi-touch
Display brightness	250 cd/m²
Viewing angle, vertical	160°
Viewing angle, horizontal	170°
3D	No
Native aspect ratio	5:4
Response time	25 ms
Processor
Processor cache type	Smart Cache
Processor frequency	1.1 GHz
Processor boost frequency	1.1 GHz
Processor family	Intel® Celeron®
Processor model	7305L
Processor cores	5
Processor threads	5
Processor cache	8 MB
Processor manufacturer	Intel
Processor base power	15 W
Efficient-core Max Turbo Frequency	1.1 GHz
Performance-core Max Turbo Frequency	1.1 GHz
Performance cores	1
Efficient cores	4
Memory
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	4800 MHz
Hard drive
Number of storage drives installed	1
Storage media	SSD
Total storage capacity	128 GB
Storage
Number of storage drives supported	1
Number of storage drives installed	1
Storage media	SSD
Total storage capacity	128 GB
Optical drive type	No
SSD interface	M.2
SSD capacity	128 GB
Number of SSDs installed	1
SSD form factor	M.2
Total SSDs capacity	128 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
Audio
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	4 W
Camera
Built-in camera	No
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
Technical details
Power cord included	Yes
Product type	All-in-One PC
Product colour	Black
Wall mountable	Yes
Sustainability certificates	ENERGY STAR
Warranty period	33 year(s)
Compliance certificates	CB, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, RoHS, State Radio Regulation of China (SRRC), UKCA, VCCI
Security
Trusted Platform Module (TPM)	Yes
Design
Product colour	Black
Wall mountable	Yes
Panel mounting interface	75 x 75 mm
VESA mounting	Yes
Performance
Market positioning	Business
Product type	All-in-One PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	No
Power
Power consumption (off)	0.5 W
Autonomy mode	No
AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	24 V
Power consumption (typical)	33 W
Power consumption (standby)	5 W
Multimedia
Built-in camera	No
Pen
Pen included	No
Weight & dimensions
Package width	497 mm
Package depth	487 mm
Package height	345 mm
Package weight	7.9 kg
Width (with stand)	359.5 mm
Depth (with stand)	197.5 mm
Height (with stand)	356 mm
Weight (with stand)	6.7 kg
Packaging data
Package width	497 mm
Package depth	487 mm
Package height	345 mm
Package weight	7.9 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	UL/cUL, FCC, IC, CE, CB
Compliance certificates	CB, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, RoHS, State Radio Regulation of China (SRRC), UKCA, VCCI
Sustainability
Sustainability certificates	ENERGY STAR
Packaging content
Power cord included	Yes
Quick start guide	Yes
Other features
Autonomy mode	No
On-board graphics card	Yes
Viewing angle, vertical	160°
Viewing angle, horizontal	170°
SSD interface	M.2
SSD capacity	128 GB
Processor manufacturer	Intel
Power consumption (typical)	33 W
Power consumption (standby)	5 W
Number of SSDs installed	1
3D	No
Mean time between failures (MTBF)	50000 h
Warranty period	33 year(s)
