Axis | SKU:
5801-693

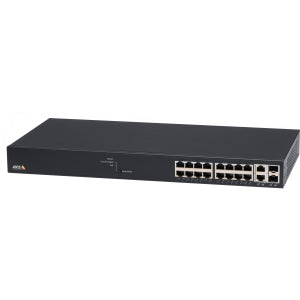

Axis 5801-693 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
€749.14
Unit price
/
Unavailable
Shipping calculated at checkout.
Axis 5801-693 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
16xRJ-45, 2xSFP, 8K MAC, 36 Gbit/s, 26.8 Mpps, 100-240V, 50/60Hz, 442x211x44mm, 3kg, Black
Key Features
- 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 240 W; Gigabit switch; Intuitive graphic topology for system overview
Description
AXIS T8516 PoE+ Network Switch is an easy to install 16-port managed Gigabit switch - a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. AXIS T8516 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 16 PoE cameras.Specifications
| Virtual LAN features | |
|---|---|
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Optical fiber | |
| Fiber optic connector | SFP |
| Technical details | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Network | |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| VLAN support | Yes |
| 10G support | No |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Jumbo frames | 9216 |
| Throughput | 26.8 Mpps |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| DHCP features | DHCP server, DHCP snooping |
| Protocols | |
| Supported network protocols | IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU |
| Certificates | |
| Certification | EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, VCCI Class A, ICES-003 Class A, KCC, RCM, IEC/EN/UL 60950-1, S-mark (Argentina), EAC, CE, ANATEL, JATE |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Certification | EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, VCCI Class A, ICES-003 Class A, KCC, RCM, IEC/EN/UL 60950-1, S-mark (Argentina), EAC, CE, ANATEL, JATE |
| Rack mounting | Yes |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 211 mm |
| Height | 44 mm |
| Weight | 3 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
