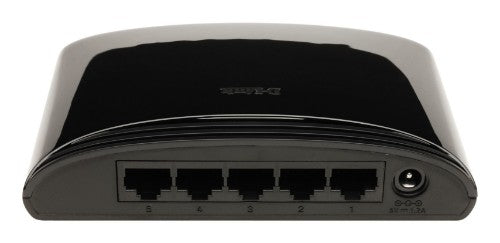

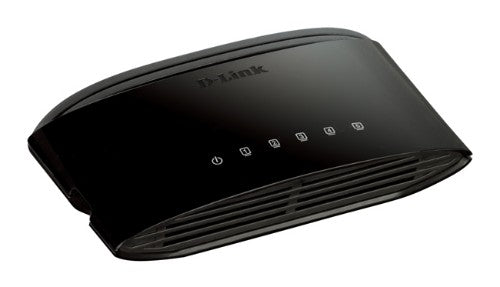

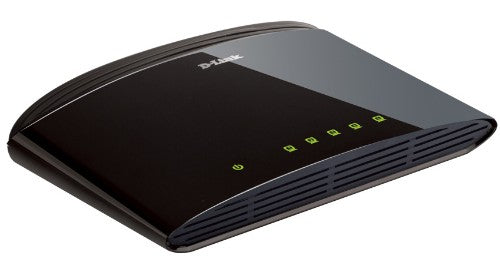

D-Link 5-Port Fast Ethernet Unmanaged Desktop Switch

Unmanaged, Fast Ethernet, Duplex, 5x RJ-45, IEEE 802.3x, 2K MAC, Auto-MDIX, RoHS, Black

Description

The DES-1005D 5-Port Fast Ethernet Unmanaged Desktop Switch is a five port fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-1005D to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.

Auto-Sensing 10/100 Ports
The DES-1005D 5-Port Fast Ethernet Unmanaged Desktop Switch uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

Auto MDI/MDIX Crossover
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces

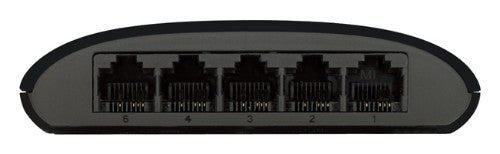

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0

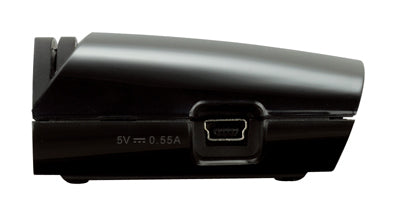

Power connector	DC-in jack
Copper ethernet cabling technology	100Base-TX, 10Base-T
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
MAC address auto-learning supported	Yes
Copper ethernet cabling technology	100Base-TX, 10Base-T
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Packet buffer memory	0.046875 MB
MAC address table	2000 entries
Supported data transfer rates	10/20/100/200 Mb/s
Switching capacity	1 Gbit/s
Store-and-forward	Yes
Maximum data transfer rate	0.2 Gbit/s
Forwarding rate	0.1488 Mpps
Protocols
Switching protocols	CSMA/CD
Data link protocols	Ethernet, Fast Ethernet
Design
Product colour	Black
Stackable	No

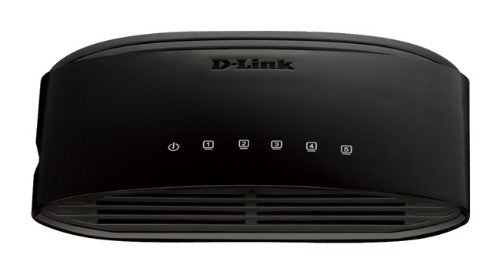

LED indicators	Activity, Link, Power
Housing material	Plastic
Rack mounting	No
Certification	FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Performance
Plug and Play	Yes
Fanless	Yes
Packet buffer memory	0.046875 MB
Stackable	No
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	3.8 W
Power supply included	Yes
Power consumption (typical)	2.5 W
Input voltage	5 V
Input current	1.2 A
Power source	AC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Power LED	Yes
Packet transfer speed	14880 - 148800 p/s
Input voltage	5 V
Ethernet LAN data rates	10,100 Mbit/s
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	8.528 BTU/h
Weight & dimensions
Width	125.3 mm
Depth	83.4 mm
Height	29.1 mm
Packaging content
User guide	Yes
Manual	Yes
Cables included	AC
Packaging data
Package width	65 mm
Package depth	105 mm
Package height	98 mm
Package weight	170 g
User guide	Yes
Manual	Yes
Cables included	AC
Technical details
Product colour	Black
Stackable	No
Housing material	Plastic
Rack mounting	No
Memory
Packet buffer memory	0.046875 MB
Certificates
Certification	FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Indication
Power LED	Yes
LED indicators	Activity, Link, Power
Logistics data
Harmonized System (HS) code	85176990
