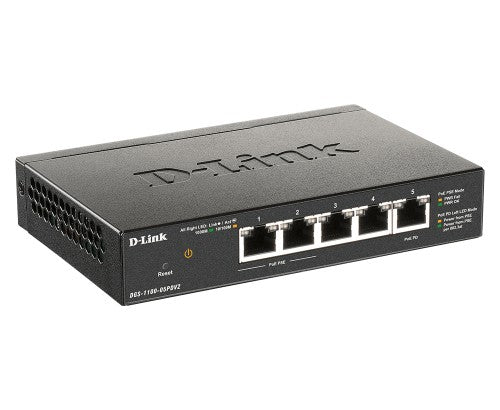

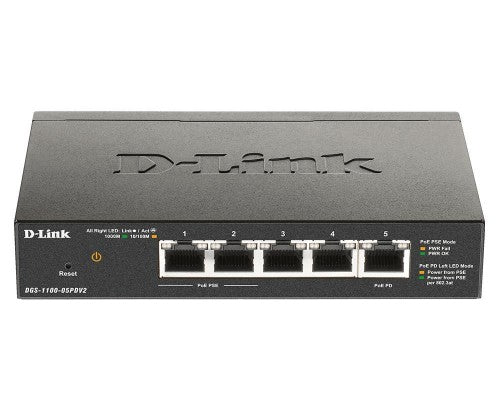

D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port

2 x 10/100/1000 Mbps (PoE) RJ-45, 3 x 10/100/1000 Mbps RJ-45, 10 Gbps, 7.44 Mpps, 2K MAC, 150 x 97 x 28 mm

Key Features

• 5 x 10/100/1000BASE-T ports
• Powered by IEEE 802.3af/at PoE through port 5
• Supports PoE Pass-through (ports 1 and 2 only)
• Compact design for convenient placement
• Fanless design for silent operation
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management

Description

Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities

Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	4094
Flow control support	Yes
Ethernet LAN data rates	10000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
Virtual LAN features	Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping	Yes
IGMP entries	128
Data transmission
Jumbo frames	9216
Packet buffer memory	1 MB
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Number of trunks	1
Number of queues	4
Forwarding rate	7.44 Mpps
Number of VLANs	4094
Security
Static port security	Yes
SSH/SSL support	Yes
IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
MAC address entries	Static MAC address entries
IGMP entries	128
DHCP features	DHCP client
Design
Product colour	Black
Rack mounting	No
Performance
Noise level	0 dB
Mean time between failures (MTBF)	2357475 h
Flash memory	2 MB
Fanless	Yes
Packet buffer memory	1 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	24.08 W
Power supply included	No
Power consumption (typical)	3.24 W
Power source	PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	18 W
Power over Ethernet (PoE) ports quantity	2
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Virtual LAN features
VLAN support	Yes
Number of VLANs	4094
Virtual LAN features	Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width	150 mm
Depth	97 mm
Height	28 mm
Weight	380 g
Technical details
Product colour	Black
Noise level	0 dB
Mean time between failures (MTBF)	2357475 h
Rack mounting	No
Compliance certificates	BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI
Memory
Packet buffer memory	1 MB
Flash memory	2 MB
Certificates
Compliance certificates	BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI
Other features
Ethernet LAN data rates	10000 Mbit/s
Logistics data
Harmonized System (HS) code	85176990
