HPE Aruba Networking Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

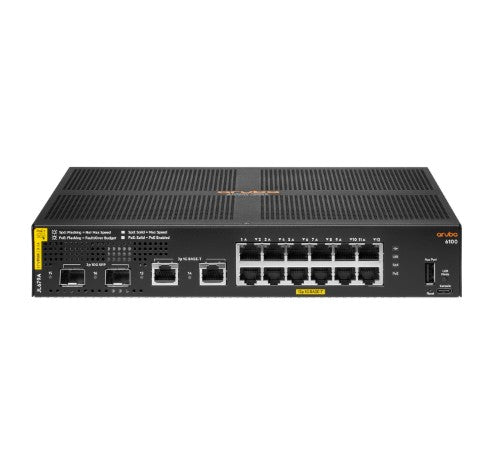

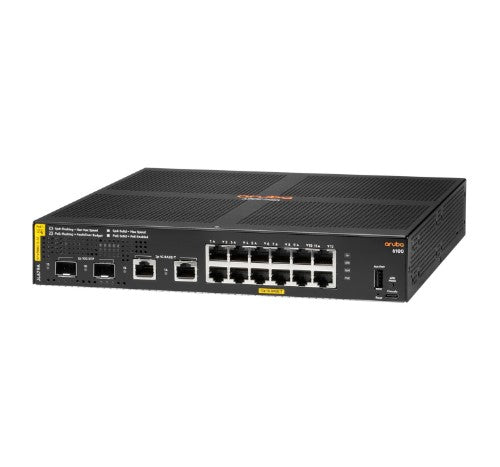

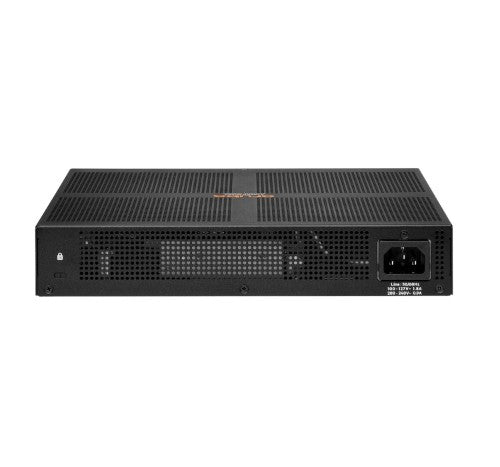

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch

Description

The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a
convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.

Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.

Features

Entry Level Aruba CX Access Layer Switches
- The Aruba CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
- Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
- Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
- Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 370W of Class 4 PoE.
- Simplifies ownership with no switch software licensing or subscriptions required.

Performance and Power
- The Aruba CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
- Deploy wireless access points and IoT devices with Aruba CX 6100 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
- Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.

Simplified Configuration and Management
- The Aruba CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
- Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
- Software-defined ready with REST APIs for fine-grained programmability of network tasks.
- Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	12.38 MB
Stackable	Yes
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Processor frequency	1016 MHz
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	USB
Data transmission
Throughput	45.1 Mpps
Latency (1 Gbps)	2.3 µs
Latency (10 Gbps)	2.6 µs
Packet buffer memory	12.38 MB
MAC address table	8192 entries
Switching capacity	68 Gbit/s
Jumbo frames support	Yes
Security
Authentication	MAC-based authentication
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Memory
Packet buffer memory	12.38 MB
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16 MB
Design
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Power
Power consumption (max)	21.9 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	139 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	254 mm
Depth	255 mm
Height	44 mm
Weight	2.8 kg
