Kingston Technology | SKU:
KVR32S22S8/8

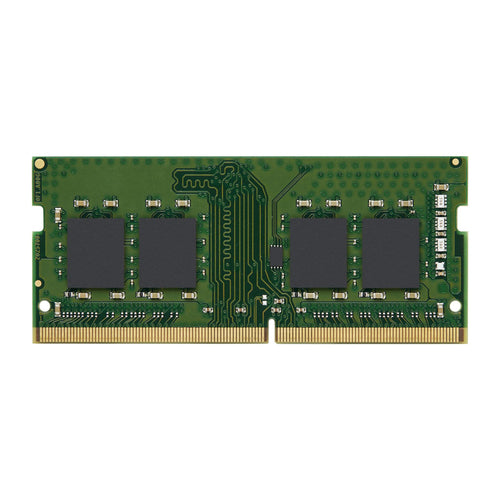

Kingston Technology ValueRAM memory module 8 GB 1 x 8 GB DDR4 3200 MT/s
€50.48
Unit price
/
Unavailable
Shipping calculated at checkout.
Kingston Technology ValueRAM memory module 8 GB 1 x 8 GB DDR4 3200 MT/s is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
8GB, DDR4, 3200MT/s, Non-ECC, CL22, 1.2V
Key Features
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
Description
ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.Specifications
| Power | |
|---|---|
| Memory voltage | 1.2 V |
| Technical details | |
| Country of origin | Taiwan |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Memory | |
| Buffered memory type | Unregistered (unbuffered) |
| Memory layout (modules x size) | 1 x 8 GB |
| Internal memory | 8 GB |
| Component for | Laptop |
| Memory form factor | 260-pin SO-DIMM |
| CAS latency | 22 |
| Memory voltage | 1.2 V |
| Lead plating | Gold |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| ECC | No |
| Internal memory type | DDR4 |
| Features | |
| Buffered memory type | Unregistered (unbuffered) |
| Memory layout (modules x size) | 1 x 8 GB |
| Internal memory | 8 GB |
| Component for | Laptop |
| Memory form factor | 260-pin SO-DIMM |
| CAS latency | 22 |
| Memory voltage | 1.2 V |
| Lead plating | Gold |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Country of origin | Taiwan |
| ECC | No |
| Internal memory type | DDR4 |
| Harmonized System (HS) code | 84733020 |
| Memory data transfer rate | 3200 MT/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Sustainability | |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width | 69.6 mm |
| Height | 30 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 84733020 |
