StarTech.com Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)

StarTech.com Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters) (RS232EXTC1GB)

Key Features

• Extend RS232 up to 1000m / 3300ft
• Data transfer rates of up to 230 Kbps
• Compatible with all RS232 communications
• Employ existing Cat5, 5e, 6 or better Ethernet infrastructure to remotely connect serial devices
• Supports full-duplex data communication
• Compact design
• No driver software required for easy Plug-and-Play installation

Description

Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling

The RS232EXTC1GB Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling. Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Technical details
Type	Console transmitter & receiver
Data transfer rate	0.23 Mbit/s
Cable types supported	Cat5, Cat5e, Cat6
Maximum transfer distance	1000 m
Product colour	Silver
Plug and Play	Yes
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Ports & interfaces

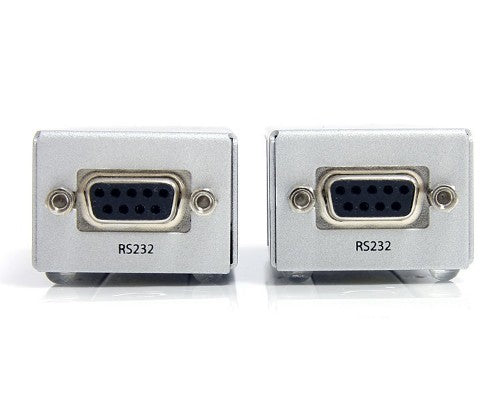

RS-232 ports	2

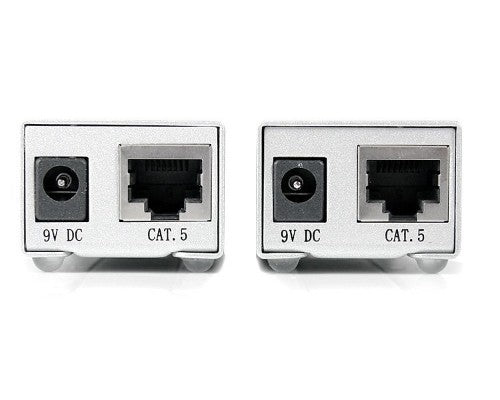

RJ-45 ports quantity	2
DC-in jack	Yes
Weight & dimensions
Package width	57 mm
Package depth	315 mm
Package height	138 mm
Package weight	1 kg
Width	34 mm
Depth	92 mm
Height	22 mm
Weight	65 g
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	0 - 85 °C
Operating relative humidity (H-H)	0 - 95%
Colour
Product colour	Silver

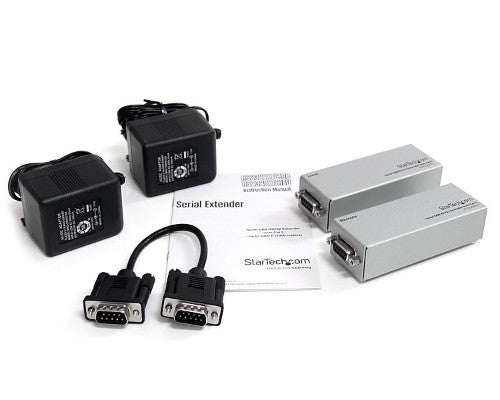

Packaging content
AC adapter included	Yes
Manual	Yes
Cables included	Serial
Power
Input voltage	100 - 240 V
Output voltage	9 V
Output current	0.3 A
Power plug type	Type M
Input current	0.055 A
Logistics data
Master (outer) case width	326 mm
Master (outer) case length	328 mm
Master (outer) case height	300 mm
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	84733020
