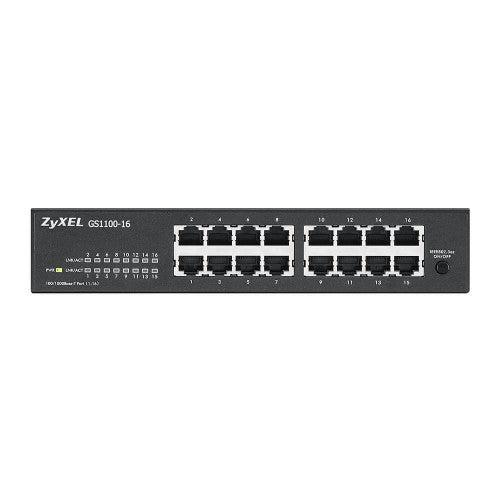

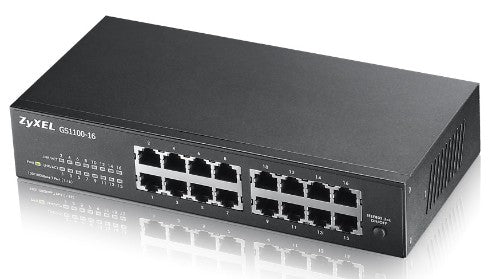

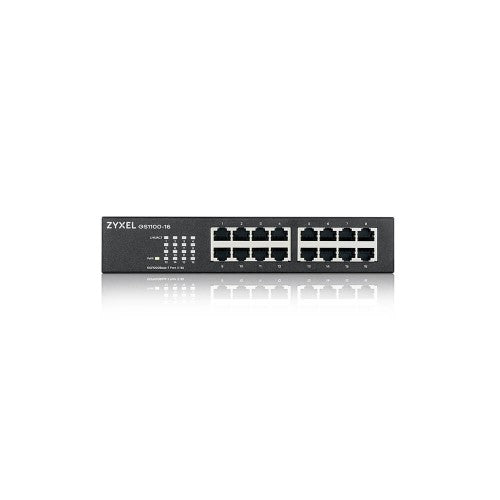

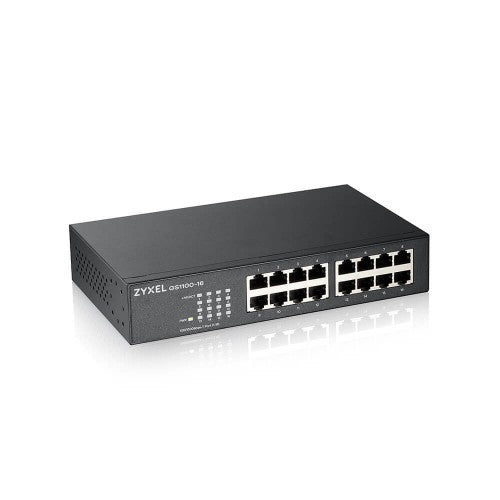

Zyxel GS1100-16 Unmanaged Gigabit Ethernet (10/100/1000)

GS1100-16 Revision B1 - 16-port GbE Unmanaged, GB

Key Features

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab 1000BASE-T Ethernet
• IEEE 802.3az EEE support
• IEEE 802.3x flow control
• IEEE 802.3z 1000BASE-X
• IEEE 802.1p CoS

Description

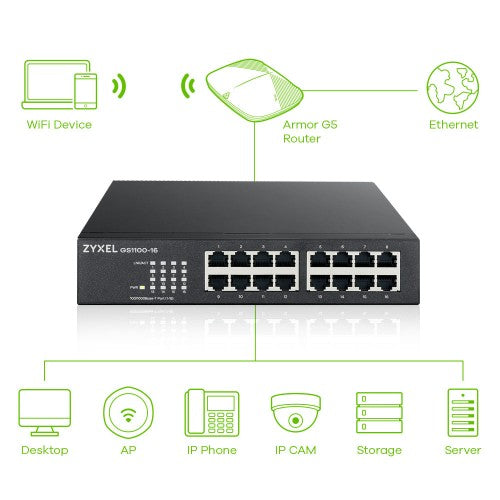

Plug and play connectivity
Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.

Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.

Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces

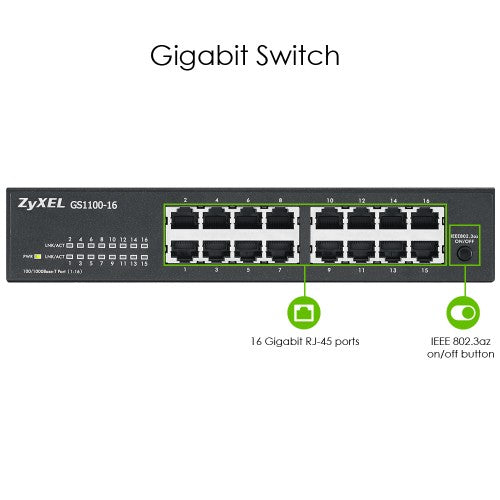

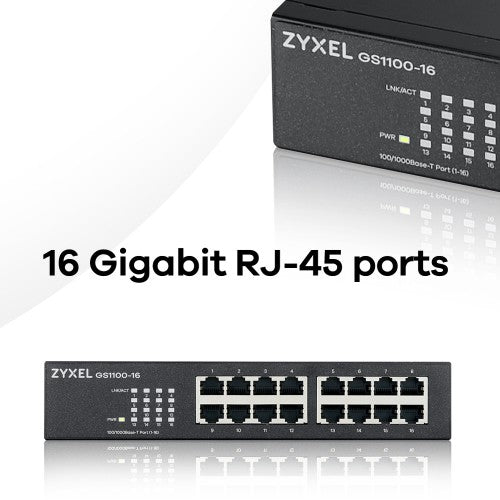

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Active link detection	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames	9216
Packet buffer memory	0.5 MB
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Jumbo frames support	Yes
Forwarding rate	23.8 Mpps
Design
Wall mountable	Yes
LED indicators	Activity, Link, Power
Electromagnetic compatibility	CE, FCC, RCM, ICES-003, BSMI
Rack mounting	Yes
Certification	LVD, BSMI RoHS, REACH
Performance
Mean time between failures (MTBF)	1156942 h
Fanless	Yes
Packet buffer memory	0.5 MB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	10 W
Power supply included	Yes

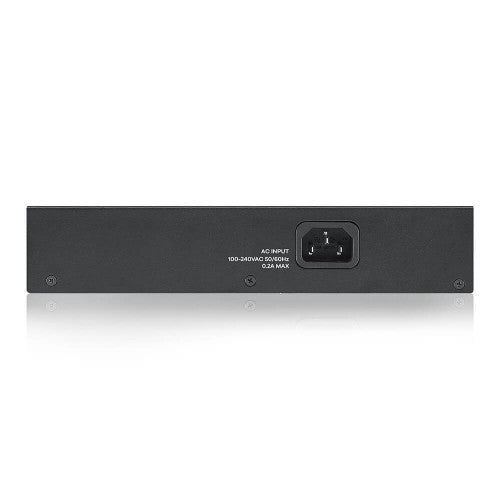

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	32.86 BTU/h
Weight & dimensions
Width	215 mm
Depth	133 mm
Height	42 mm
Weight	19.8 kg
Packaging content
Rack mount kit	Yes
Cables included	AC
Packaging data
Package type	Box
Rack mount kit	Yes
Cables included	AC
Technical details
Mean time between failures (MTBF)	1156942 h
Rack mounting	Yes
Certificates
Electromagnetic compatibility	CE, FCC, RCM, ICES-003, BSMI
Certification	LVD, BSMI RoHS, REACH
Memory
Packet buffer memory	0.5 MB
Indication
LED indicators	Activity, Link, Power
Logistics data
Harmonized System (HS) code	85176990
