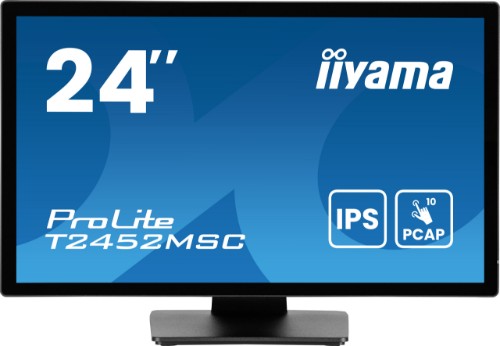

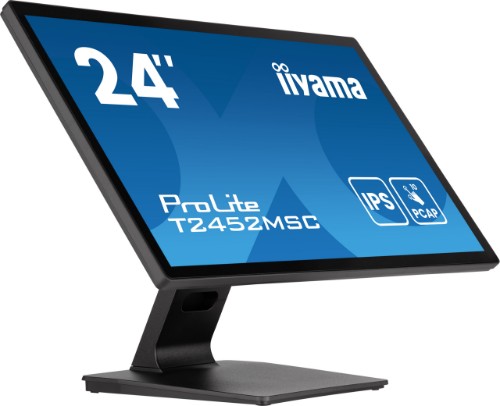

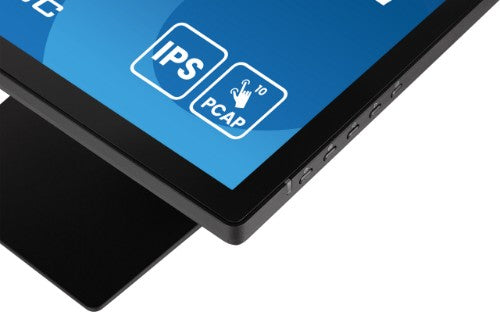

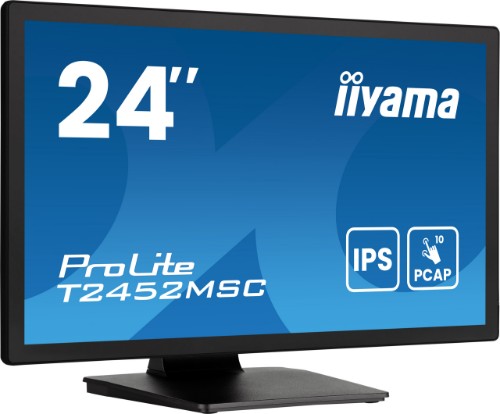

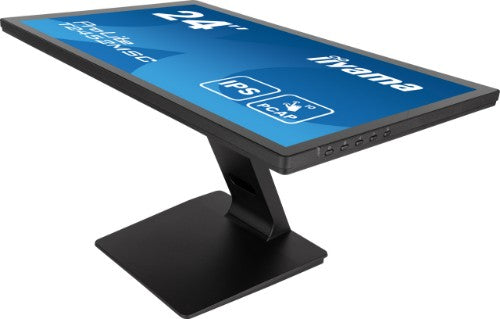

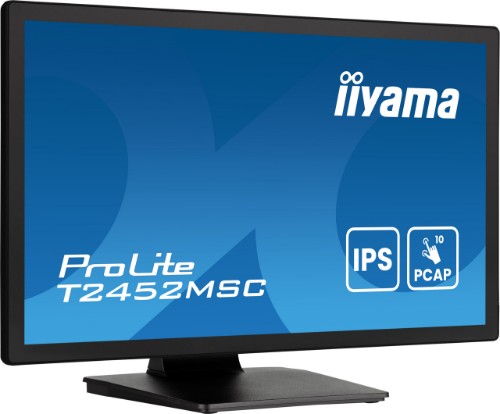

iiyama ProLite 23.8” PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti Anti Glare coating

23.8” PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti Anti Glare coating

Reasons To Buy

IPS Technology

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Anti-fingerprint coating

This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

Scratch resistance

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Speakers

This LED monitor is equipped with two high quality stereo speakers.

Description

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2452MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The ProLite T2452MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

Specifications

Audio
Built-in speaker(s)	Yes
RMS rated power	2 W
Performance
Built-in speaker(s)	Yes
RMS rated power	2 W
Mean time between failures (MTBF)	50000 h
Low Blue Light technology	Yes
Flicker-free technology	Yes
Display
Display brightness (typical)	400 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Colour gamut	86%
Maximum refresh rate	60 Hz
HD type	Full HD
Display technology	LED
Pixel pitch	0.274 x 0.274 mm
Horizontal scan range	30 - 83 kHz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Display resolution	1920 x 1080 pixels
Response time	5 ms
Display diagonal	60.5 cm (23.8")
Contrast ratio (typical)	1000:1
Surface hardness	7H
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	IPS
Colour depth	8 bit
Display diagonal (metric)	60.5 cm
Touchscreen technology	Projected capacitive system
Positional accuracy	2 mm
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Management features
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Plug and Play	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	2 W
Design
Market positioning	Business
Product colour	Black
Front bezel colour	Black
Mean time between failures (MTBF)	50000 h
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
HDMI ports quantity	1
DisplayPorts quantity	1
Audio output	Yes
HDMI	Yes
USB Touch port	Yes
Technical details
Cable lock slot	Yes
Mean time between failures (MTBF)	50000 h
HDMI	Yes
Product colour	Black
Front bezel colour	Black
Power supply type	Internal
Weight (with stand)	5.6 kg
Surface hardness	7H
Touchscreen	Yes
Number of simultaneous touchpoints	10
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	5 - 90°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Plug and Play	Yes
Height adjustment	No
Cable lock slot type	Kensington
Tilt adjustment	Yes
Power
Power supply type	Internal
AC input voltage	100 - 240 V
Power consumption (standby)	1.5 W
Power consumption (typical)	16 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	16 kWh
Weight & dimensions
Width (with stand)	567 mm
Depth (with stand)	253.5 mm
Height (with stand)	385 mm
Weight (with stand)	5.6 kg
Package width	635 mm
Package depth	635 mm
Package height	405 mm
Package weight	7.2 kg
Packaging data
Package width	635 mm
Package depth	635 mm
Package height	405 mm
Package weight	7.2 kg
Package type	Box
Quick start guide	Yes
Packaging content
Quick start guide	Yes
Other features
Mean time between failures (MTBF)	50000 h
Positional accuracy	2 mm
Quick start guide	Yes
HDMI	Yes
Surface hardness	7H
Energy efficiency scale	A to G
Power supply type	Internal
Touchscreen	Yes
Number of simultaneous touchpoints	10
Package type	Box
Front bezel colour	Black
