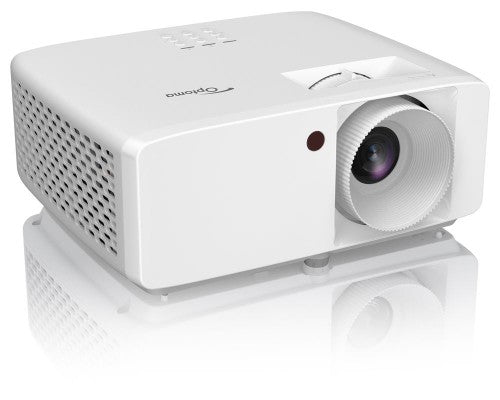

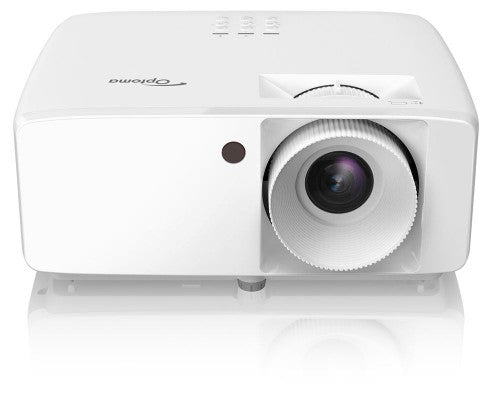

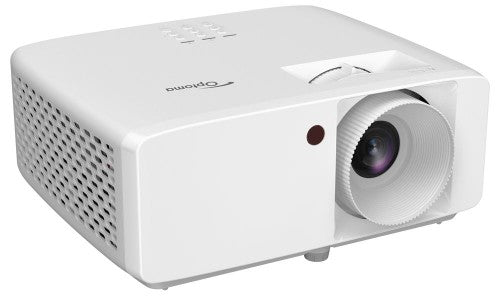

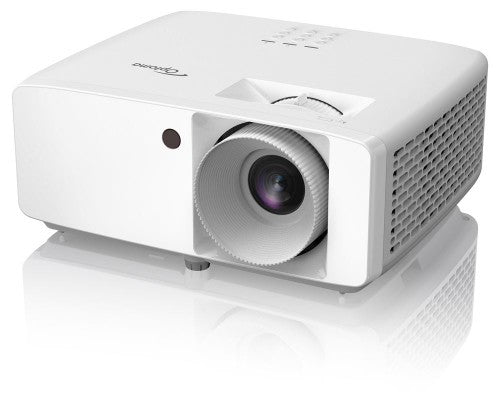

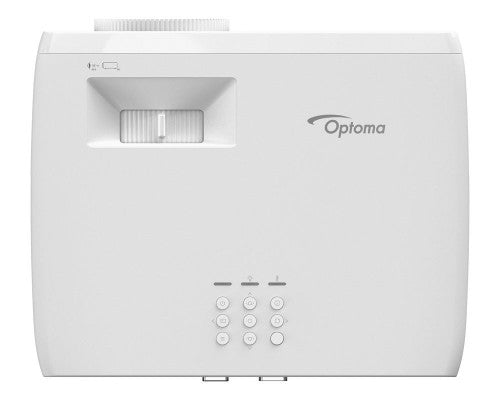

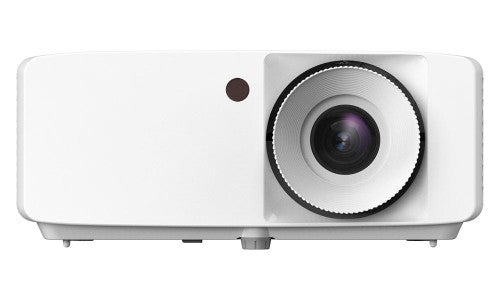

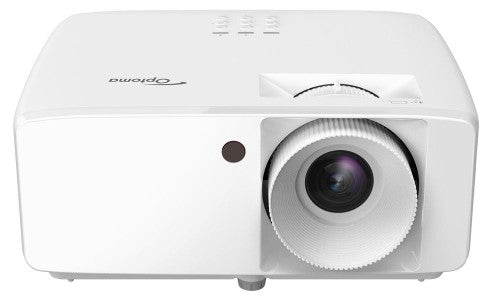

Optoma ZW340e data projector Standard throw projector 3600 ANSI lumens DLP WXGA (1280x800) 3D White

Compact high brightness laser projector, DLP, 3600 lumens, WXGA (1280x800), 16:10

Description

Compact high brightness laser projector

The ZW340e is one of Optoma's most compact and hassle-free WXGA DuraCore laser projectors to date. Designed for maintenance-free continuous operation, this 3600-lumen projector delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.

To support Optoma’s commitment to sustainability, the ZW340e cuts power consumption by up to 45% compared to Optoma’s lamp-based projectors. Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint.

An added benefit, the ZW340e features an external power supply offering more reliability, portability and energy efficiency. Designed with the environment in mind, the eco-friendly packaging contains up to 97% recyclable materials. In addition, the compact product and packaging size of the ZW340e projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.

Specifications

Projector
Number of colours	1.073 billion colours
Projector native resolution	WXGA (1280x800)
Native aspect ratio	16:10
Supported aspect ratios	4:3, 16:10, 16:9
Screen size compatibility	508 - 7620 mm (20 - 300")
Projection distance	1 - 10 m
Contrast ratio (typical)	300000:1
Contrast ratio (dynamic)	2000000:1
Zoom ratio	1.1:1
Zoom capability	Yes
Vertical scan range	24 - 120 Hz
Horizontal scan range	15 - 140 kHz
Uniformity	75%
Keystone correction, vertical	-40 - 40°
Projection technology	DLP
Projector brightness	3600 ANSI lumens
Zoom type	Manual
Lamps
Light source type	Laser
Service life of light source	30000 h
Light source
Light source type	Laser
Service life of light source	30000 h
Lens system
Zoom ratio	1.1:1
Zoom capability	Yes
Focal length range	21.85 - 24 mm
Throw ratio	1.54 - 1.72:1
Offset	112%
Zoom type	Manual
Scanning frequency
Vertical scan range	24 - 120 Hz
Horizontal scan range	15 - 140 kHz
Video
Analog signal format system	NTSC 3.58, NTSC 4.43, NTSC J, NTSC M, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM 4.25/4.4, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Full HD	No
3D	Yes
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080)
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	15 W
Ports & interfaces
HDMI version	1.4a
VGA (D-Sub) ports quantity	0
HDMI ports quantity	2
USB 2.0 ports quantity	1
Composite video in	0
Audio (L/R) in	0
Headphone outputs	1
Serial interface type	RS-232
DVI port	No
Component video (YPbPr/YCbCr) in	0
USB 2.0 Type-A ports quantity	1
Network
Smart TV	No
Storage
Card reader integrated	No
Sound emission
Noise level	31 dB
Technical details
Product colour	White
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish, Vietnamese
Performance
Market positioning	Business
Password protection	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish, Vietnamese
Vertical scan range	24 - 120 Hz
Horizontal scan range	15 - 140 kHz
Noise level	31 dB
Number of OSD languages	26
Features
Interactive	No
Password protection	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish, Vietnamese
Noise level	31 dB
Certification	IP6X
Number of OSD languages	26
Multimedia
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	15 W
Design
Market positioning	Business
Product type	Standard throw projector
Cable lock slot type	Kensington
Product colour	White
Cable lock slot	Yes
Display
Built-in display	No
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	139 W
Power source	AC
Power consumption (standby)	0.5 W
Power consumption (economy mode)	88 W
Packaging data
Package weight	4.2 kg
Security
Cable lock slot type	Kensington
Cable lock slot	Yes
Other features
Remote control type	IR
Power consumption (economy mode)	88 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating altitude	0 - 3000 m
Certificates
Certification	IP6X
Weight & dimensions
Weight	3 kg
Width	274 mm
Depth	216 mm
Height	114 mm
Package weight	4.2 kg
Packaging content

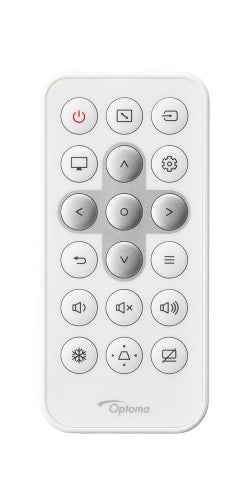

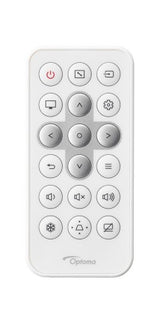

Remote control included	Yes
Remote control type	IR
Manual	Yes
Cables included	AC
Batteries included	Yes
AC adapter included	Yes
