Viewsonic PA700W data projector Standard throw projector 4500 ANSI lumens WXGA (1280x800) White

WXGA, 4500 ANSI, 12500:1, 1.07 B, 240W UHP, 1.1x, 3W, HDMI, Audio-in/out, VGA, RS232, USB, 100-240 V, 2.70 kg

Key Features

• 4,500 ANSI Lumens, offering clear images in any environment​
• Up to 300" ultra large screen with lower cost-per-inch ​
• Easy and flexible connection: dual HDMI ports, USB Type-A port​
• Vivid colors with ViewSonic's SuperColor™ Technology​
• Convenient software updates for projectors via USB connection​

Description

The PA700W is ViewSonic’s high brightness WXGA business/education projector. With 4,500 ANSI Lumens of highbrightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or anyother bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switchingbetween content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless contentstreaming more convenient. The projector also allows software updates via USB cable connection with simply yourlaptops, skipping trips to service centers.

High Brightness for Business & Education Environments​
Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.

Ultra-Large Screen with Lower Cost-per-inch​​
The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.

Easy and Flexible Connection​
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.​

Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentationwith a true-to-life color experience.

A Simpler Way to Update Projector Software​
Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.​​​

​​​*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.​

USB Type A Power Supply​
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	WXGA (1280x800)
Screen size compatibility	762 - 7620 mm (30 - 300")
Projection distance	1 - 11.11 m
Contrast ratio (typical)	12500:1
Zoom capability	Yes
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Keystone correction, vertical	-40 - 40°
Projector brightness	4500 ANSI lumens
Smart projector	No
Lamps
Lamp type	UHP
Lamps quantity	1 lamp(s)
Lamp power	240 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	12000 h
Light source
Lamp type	UHP
Lamps quantity	1 lamp(s)
Lamp power	240 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	12000 h
Lens system
Zoom capability	Yes
Focus	Manual
Focal length range	21.85 - 24 mm
Aperture range (F-F)	2.41 - 2.53
Throw ratio	1.544 - 1.72
Optical zoom	1.1x
Offset	112.4%
Digital zoom	2x
Scanning frequency
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Video
Analog signal format system	NTSC, PAL, SECAM
Full HD	Yes
3D	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	3 W

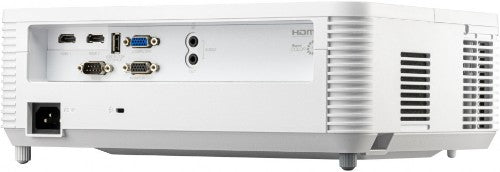

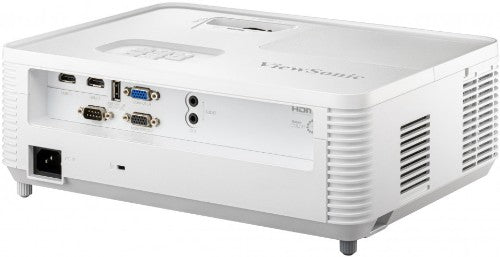

Ports & interfaces
HDMI connector type	Full-size
PC in (D-Sub)	Yes
HDMI version	1.4
VGA (D-Sub) ports quantity	2
HDMI ports quantity	2
USB 2.0 ports quantity	1
Serial interface type	RS-232
PC Audio out	Yes
PC Audio in	Yes
DVI port	No
AC (power) in	Yes
Service port type	USB Type-A
Network
Smart TV	No
Ethernet LAN	No
Wi-Fi	No
Storage
Card reader integrated	No
Sound emission
Noise level	34 dB
Noise level (economic mode)	25 dB
Technical details
PC in (D-Sub)	Yes
Product colour	White
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese
Air filter	Yes
Lamp power	240 W
Image lag time	33.2 ms
Performance
Market positioning	Education
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Noise level	34 dB
Noise level (economic mode)	25 dB
Air filter	Yes
Number of OSD languages	22
Features
Interactive	No
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese
Noise level	34 dB
Noise level (economic mode)	25 dB
Air filter	Yes
Number of OSD languages	22
HDCP version	1.4
Multimedia
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	3 W
Design
Market positioning	Education
Product type	Standard throw projector
Cable lock slot type	Kensington
Product colour	White
LED indicators	Yes
Cable lock slot	Yes
Display
Built-in display	No
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	295 W
Power consumption (standby)	0.5 W
Packaging data
Package width	400 mm
Package depth	337 mm
Package height	168 mm
Package weight	3.8 kg
Security
Cable lock slot type	Kensington
Cable lock slot	Yes
Indication
LED indicators	Yes
Other features
Remote control type	IR
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Package width	400 mm
Package depth	337 mm
Package height	168 mm
Weight	2.7 kg
Width	309 mm
Depth	234 mm
Height	115 mm
Package weight	3.8 kg
Packaging content
Remote control included	Yes
Warranty card	Yes
Remote control type	IR
Quick start guide	Yes
Cables included	AC, VGA
