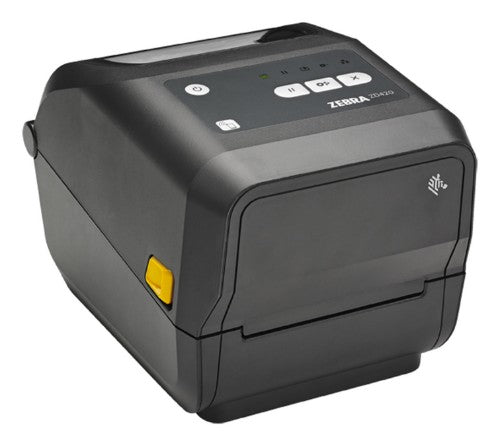

Zebra ZD420t label printer Direct thermal / Thermal transfer 300 x 300 DPI 102 mm/sec Wired

4", 300 x 300 DPI, 102 mm/sec, USB, Black

Description

ZD420 4-Inch Desktop Printers
A new level of ease of use, application flexibility, management simplicity and TCO

The ZD420 leads its printer class in deployment and management simplicity, ease-of-use, application flexibility and total cost of ownership (TCO). The next generation in Zebra’s advanced desktop line, the ZD420 replaces Zebra’s popular GK420 Series. You get an easy to use clamshell design and an intuitive interface. Field-installable connectivity and media handling options allow you to purchase what you need today, yet easily add new features on site to meet tomorrow’s needs. Link-OS® supports our powerful Print DNA suite of applications, utilities and developer tools that deliver a superior printing experience through better performance, simplified remote manageability and easier integration. Available in direct thermal and thermal transfer and healthcare-specific models, the ZD420 is ideal for a wide range of applications. The ZD420 — easy, flexible and simple to manage.

Deployment and Application Flexibility
Backwards Compatibility with Virtually Any Existing Printer
With the ZD420, whether you are currently using a Zebra or competitive printer, you’ll be able to use the same label formats and applications you’re using today. The ZD420 supports both EPL and ZPL printer languages. And with on printer Virtual Devices, part of Zebra’s Print DNA suite of tools and utilities, the ZD420 can use languages normally associated with other printer brands.

Multiple Connectivity Options
With multiple connection options, you can connect the ZD420 to your existing wired and wireless networks, or directly to any PC. The ZD420 comes standard with USB and USB Host. You can also choose optional Ethernet or serial and a dual wireless radio that offers the very latest wireless options, Wi-Fi 802.11ac and MFi certified Bluetooth 4.1, which enables printing from any iOS device. And using the included Print Touch tag (NFC), users can simply tap a compatible mobile device on the ZD420 to pair and print.

Easy To Use — Practically No Training Required
New at-a-Glance Five LED Icons Take the Guesswork Out of Printer Status
A three-button user interface with five LED status icons replaces the typical single button/single light interface common in desktop printers. There’s no guesswork involved — users can instantly see what’s needed to keep printers up and running, from replenishing media to resolving printer issues.
Movable Sensor for Comprehensive Media Compatibility
While Zebra Certified Printer Supplies provide optimal printer performance, the ZD420’s movable media sensor lets you use virtually any media from any manufacturer, giving you the flexibility to utilize supplies you may have on hand or continue to utilize any existing supplies provider.

Easy to Manage
Easily Manage All Your Printers — All From a Single Location
The ZD420 supports Zebra Link-OS, a one-of-a-kind enterprise printer operating system that makes it easier than ever to manage and troubleshoot your networked printers from one remote location. With optional Printer Profile Manager Enterprise, you can manage one printer, a group of specific printers or all printers anywhere in the world. Instantly discover every ZD420 printer on your network — there’s no need to walk through the facility to locate, configure or troubleshoot printers. And an intuitive browser-based interface lets you see printer status at a glance, complete with information that allows you to quickly triage printer issues to prevent or minimize downtime.

Seamless Integration with Your Device Management System
With our MDM Connectors, you can easily integrate networked ZD420 printers into your AirWatch or SOTI MobiControl device management system.

Easily Configure Non-Networked Printers
The USB Host port makes it easy to connect to all your external devices, including keyboards and scanners, and can also be utilized to upgrade printer firmware automatically and set up new printer configurations.

Innovative Features for the Lowest TCO
Zebra Print DNA — Transforming Printers From the Inside
Print DNA is the genetic code that injects business-catalytic capabilities into our Link-OS printers through its unique combination of innovative applications, utilities and developer tools. The result is a superior printing experience through better performance, simplified remote manageability and easier integration. And it is easy to configure your printers to use secure connections, block unwanted access and ensure your data and infrastructure are protected.

Add New Features Right on Site for Superior Future-Proofing
If you need new communication or media handling options in the future, no problem — the printer you buy today can support tomorrow’s needs. The modular, field upgradable design allows you to add serial or Ethernet connectivity, 300 dpi support, plus a peeler or a cutter, right on site — no need to send the ZD420 to a service depot.

Lower Your Costs With a High Capacity Ribbon
Intelligent dual-ribbon handling allows the ZD420t to accept either 74 m/244 ft. or high capacity 300 m/984 ft. ribbons. The 300 m ribbon reduces ribbon changes by 75 percent for fewer workflow disruptions. And since the high capacity ribbon costs less per meter than the standard ribbon, you’ll also save on the cost of supplies.

Easy to Clean and Sanitize Healthcare Model
The ZD420 is available in a healthcare model with disinfectant-ready, UV-resistant plastics and a sealed button interface that makes it easy to clean and disinfect. It also comes with a healthcare compliant power supply and an optional locking media cabinet to block unauthorized access to high value media like blank prescription forms.

Tidier and Safer Installations
When you choose the optional power supply accessory, the power supply and all but one power cord are hidden from view, improving aesthetics as well as worker and customer safety.

Consistently Exceptional Zebra Certified Supplies
Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design, produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer — and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.

Backed by Zebra’s Worldwide Service and Support
Access repair support services, live-agent technical support and software support quickly anywhere around the globe through Zebra and its trusted network of more than 10,000 partners. Zebra OneCare™ provides enhanced coverage that exceeds standard warranty for normal wear and tear, priority repair turnaround times at the depot and more—all for a tiny fraction of the cost of a single repair.

Specifications

Print quality
Maximum resolution	300 x 300 DPI
Maximum printing width	10.8 cm
Printing
Colour	No
Print speed	102 mm/sec
Maximum resolution	300 x 300 DPI
Maximum printing width	10.8 cm
Print technology	Direct thermal / Thermal transfer
Number of printable dots	12 dot
Design
LED indicators	Yes
Housing material	Plastic
Product colour	Black, Grey
Built-in display	No
Network
Wi-Fi	No
Ethernet LAN	No
Memory
Internal memory	256 MB
Flash memory	512 MB
Paper handling
Ribbon width	10.9 cm
Ribbon length	300 m
Media thickness	0.08 - 0.1905 mm
Maximum roll diameter	12.7 cm
Maximum label width	11.8 cm
Maximum label length	0.991 m
Core diameter	1.27 cm
Ports & interfaces
USB 2.0 ports quantity	2
Connectivity technology	Wired
Bluetooth	No
Wi-Fi	No
Ethernet LAN	No
USB port	Yes
Performance
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Ribbon width	10.9 cm
Ribbon length	300 m
Internal memory	256 MB
Flash memory	512 MB
Built-in RFID module	No
Page description languages	EPL2, XML, ZBI, ZPL II
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source type	AC
Technical details
Product colour	Black, Grey
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Ribbon width	10.9 cm
Ribbon length	300 m
Maximum label width	11.8 cm
Maximum label length	0.991 m
LED indicators	Yes
Built-in RFID module	No
Sustainability certificates	ENERGY STAR
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	4.4 - 41 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	202 mm
Depth	267 mm
Height	192 mm
Weight	2.4 kg
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Other features
Quantity per pack	1 pc(s)
LED indicators	Yes
