CyberPower | SKU:
PDU24005

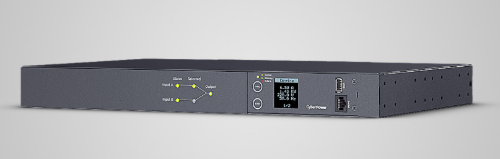

CyberPower PDU24005 power distribution unit (PDU) 10 AC outlet(s) 1U Black
€414.35
Unit price
/
Unavailable
Shipping calculated at checkout.
CyberPower PDU24005 power distribution unit (PDU) 10 AC outlet(s) 1U Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
IEC C19, IEC C13, IEC C20, 1U, 16A, 200 - 240 Vac, 50/60 Hz, RJ45, 433 x 44 x 215 mm, Black
The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
The product can be connected to a PC through the serial port to perform local control of the ATS PDU.
Key Features
- Real-time Local Monitoring
- Industrial-grade Metal Housing
- User Configurable Color LCD
- LED Status Indicator
- User-upgradeable Firmware
- Cord Retention Tray
- Dual Inputs
- Digital Real-time Load Display
- Hot-swappable LCD Design
- Firmware Upgrade via USB
Description
CyberPower PDU24005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation.The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
The product can be connected to a PC through the serial port to perform local control of the ATS PDU.
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Metered |
| Mounting | Horizontal |
| Display | LCD |
| Product colour | Black |
| Certification | FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
| Rack capacity | 1U |
| Housing material | Steel |
| Ports & interfaces | |
| USB ports quantity | 1 |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Cable length | 3.05 m |
| LED indicators | Link, Status |
| Certification | FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
| Management features | |
| Firmware upgradeable | Yes |
| Ergonomics | |
| Cable length | 3.05 m |
| LED indicators | Link, Status |
| Display | LCD |
| Power | |
| Nominal input voltage | 200 - 240 V |
| Nominal output voltage | 200 - 240 V |
| Power protection features | Overload |
| Maximum current | 12 A |
| AC input frequency | 50 / 60 Hz |
| Circuit breaker | Yes |
| Certificates | |
| Certification | FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RoHS, UL |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 95 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 32 - 113 °F |
| Operating altitude | 0 - 4000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 3.2 kg |
| Width | 433 mm |
| Depth | 215 mm |
| Height | 44 mm |
| Package width | 550 mm |
| Package depth | 398 mm |
| Package height | 125 mm |
| Package weight | 6 kg |
| Packaging content | |
| Packaging content | PDU24005, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable |
| Packaging data | |
| Package width | 550 mm |
| Package depth | 398 mm |
| Package height | 125 mm |
| Package weight | 6 kg |
| Technical details | |
| Sustainability compliance | Yes |
| Warranty period | 2 year(s) |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RoHS, UL |
| Logistics data | |
| Warranty period | 2 year(s) |
