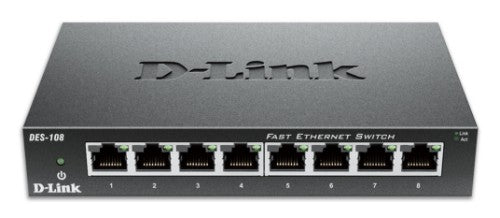

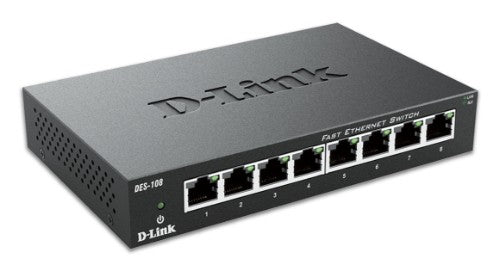

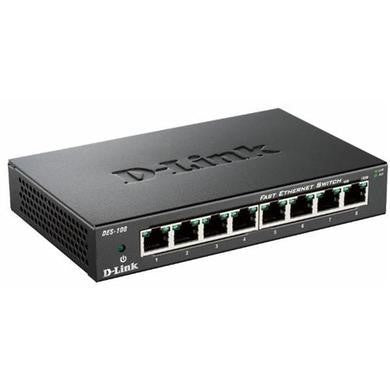

D-Link 8-Port Fast Ethernet Unmanaged Desktop Switch

Unmanaged, Fast Ethernet, Duplex, 8x RJ-45, 1.6 Gbps, IEEE 802.3x, 1K MAC, Auto MDI/MDIX, RoHS, 412 g

Description

D-Link’s DES-108 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DES-108 completely silent so it is ideal for offices, libraries or meeting rooms.

The DES-108 8-Port Fast Ethernet Unmanaged Desktop Switch is a 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-108 to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.

Auto-Sensing 10/100 Ports

The DES-108 uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

Auto MDI/MDIX Crossover

All of the ports on the DES-108 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DES-108 features multiple front, easy-to-access Ethernet ports with two colour LED indicators per port to easily distinguish link status.

Flow Control for Secure Transmission

When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.

Think Green

The DES-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, in which the switch will proceed to power down the idle port, saving a substantial amount of power.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8

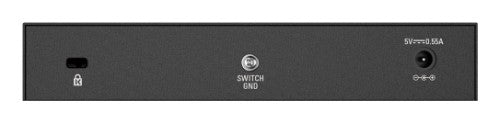

Power connector	DC-in jack
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Network
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Half duplex	Yes
Data transmission
Packet forwarding rate (100 Mbps)	148.8 pps
Jumbo frames	1536
Packet buffer memory	0.768 MB
MAC address table	1000 entries
Supported data transfer rates	10/100 Mbps
Switching capacity	1.6 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Maximum data transfer rate	0.1 Gbit/s
Security
MAC address filtering	Yes
Design
Product colour	Black
Stackable	No
LED indicators	Link, Power
Housing material	Metal
Rack mounting	No
Performance
Mean time between failures (MTBF)	511.323 h
Packet buffer memory	0.768 MB
Stackable	No
Harmonized System (HS) code	85176990
Power
Power consumption (max)	2.8 W
Input voltage	5 V
Input current	1 A
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Data transfer rate	200 Mbit/s
Input voltage	5 V
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	9.548 BTU/h
Weight & dimensions
Width	162 mm
Depth	102 mm
Height	28 mm
Weight	412 g
Packaging data
Package width	208 mm
Package depth	250 mm
Package height	68 mm
Package weight	610 g
Technical details
Product colour	Black
Stackable	No
Mean time between failures (MTBF)	511.323 h
Housing material	Metal
Rack mounting	No
Shipping (inner) case width	26 cm
Shipping (inner) case net weight	6.1 kg
Shipping (inner) case length	37 cm
Shipping (inner) case height	44.3 cm
Products per shipping (inner) case	10 pc(s)
Products per pallet (sea)	480 pc(s)
Products per pallet (air)	480 pc(s)
Pallet gross width	122 cm
Pallet gross length	102 cm
Pallet height (sea)	2.07 m
Pallet height (air)	2.07 m
Pallet gross weight (sea)	357.5 kg
Pallet gross weight (air)	357.5 kg
Master (outer) cases per pallet (sea)	48 pc(s)
Master (outer) cases per pallet (air)	48 pc(s)
Shipping (inner) case gross weight	7 kg
Compliance certificates	C-TICK, CB, CE, Federal Communications Commission (FCC), ICES, RoHS, VCCI, cUL
Memory
Packet buffer memory	0.768 MB
Certificates
Compliance certificates	C-TICK, CB, CE, Federal Communications Commission (FCC), ICES, RoHS, VCCI, cUL
Indication
LED indicators	Link, Power
Logistics data
Harmonized System (HS) code	85176990
