QNAP | SKU:
TS-h2483XU-RP-E2236-128G
Sold out

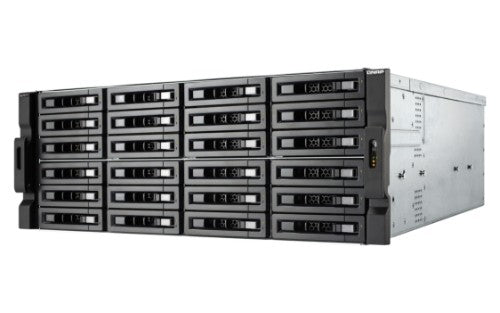

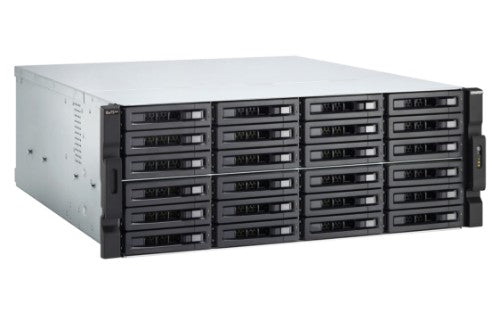

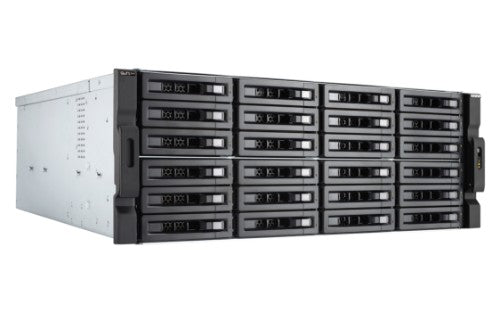

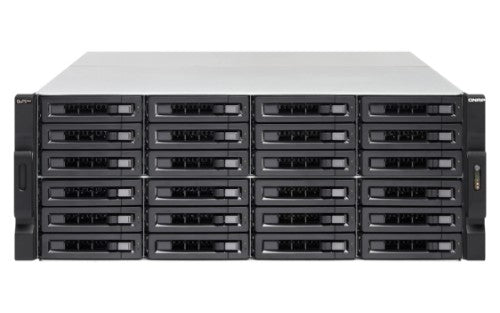

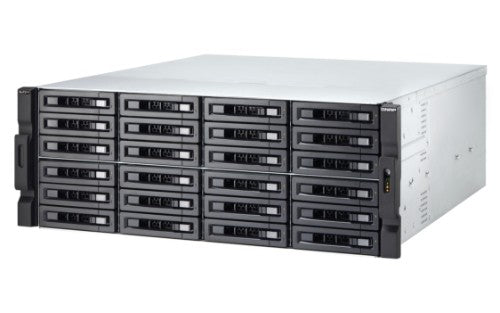

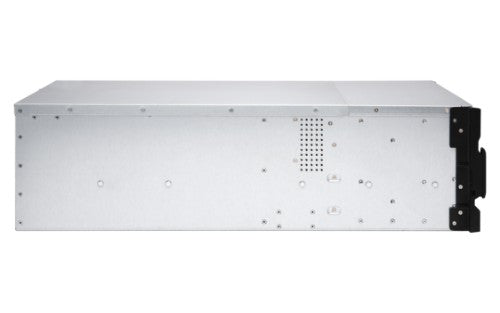

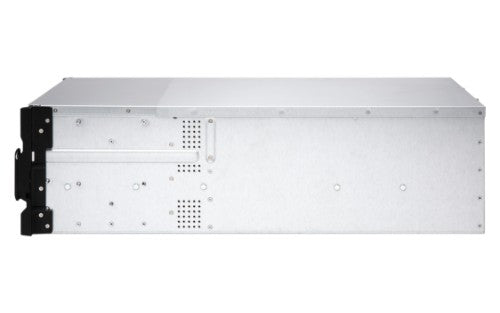

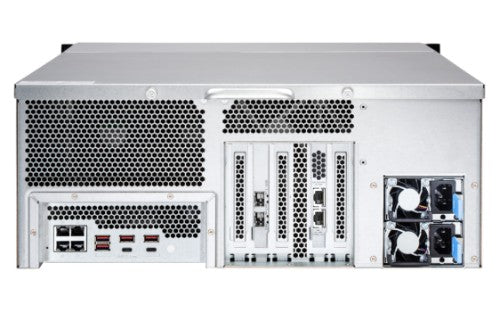

QNAP TS-h2483XU-RP NAS Rack (4U) Ethernet LAN Black E-2236
€7,343.25
Unit price
/
Unavailable
Shipping calculated at checkout.
QNAP TS-h2483XU-RP NAS Rack (4U) Ethernet LAN Black E-2236 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
24 x 3.5", Intel Xeon E-2236, 128 GB UDIMM DDR4 ECC, 5GB Flash, LAN, 2 x 800W, 100-240V, 176.15 × 481.04 × 672.02 mm, 20.67 kg
Intel® Xeon® E processors deliver extraordinary performance
Powered by an Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz), the TS-h2483XU-RP has enormous processing power to drive virtual machine performance. Combined with 128 GB DDR4 ECC memory and a redundant power supply, the TS-h2483XU-RP delivers cost-effective server-grade performance for complex multitasking and dependable reliability in enterprise IT environments.
10GbE connectivity for high-speed data transfer
The TS-h2483XU-RP provides four Gigabit RJ45 ports, and also supports 10GbE connectivity with a pre-installed dual-port 10GBASE-T network expansion card and a dual-port 10GbE SFP+ SmartNIC to satisfy bandwidth-demanding applications (including virtualization, large file sharing, and high-speed backup and recovery). QNAP also offers numerous options of managed and unmanaged 10GbE switches with 10GbE SFP+/RJ45 and Multi-Gigabit NBASE-T™ support, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Data integrity is key
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.
Data reduction improves storage efficiency and performance
Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.
Multi-level cache technology
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.
QSAL (QNAP SSD Antiwear Leveling) enhances data protection
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.
App Center ecosystem extends NAS functionality
Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h2483XU-RP.
Inline data deduplication, compression, and compaction drives Big Data storage efficiency
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h2483XU-RP optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h2483XU-RP to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
License-free VMware® and Hyper-V backup appliance
With Hyper Data Protector, the TS-h2483XU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 service operation.
Move business data to the cloud and enjoy low latency access to cloud-based data
The TS-h2483XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-h2483XU-RP, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.
HybridMount file-based cloud gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
High-performance, reliable storage solution for virtualization
- Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.
- Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h2483XU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Switch operating systems to upgrade current storage
The TS-h2483XU-RP can also switch to using QTS - QNAP’s standard NAS operating system. This allows you to migrate drives from your current QTS-based NAS to the more powerful TS-h2483XU-RP to upgrade your storage infrastructure.
More productivity applications
Boxafe
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the TS-h2483XU-RP.
Security Counselor
A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Key Features
- DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications
- SSD cache acceleration improves random read/write performance to meet IOPS-demanding applications
- Pre-installed with a dual-port 10GbE RJ45 adapter and a dual-port 10GbE SFP+ SmartNIC for bandwidth-demanding applications
- Supports virtualization storage for VMware®, Microsoft® Hyper-V®, Windows Server® 2019, and can natively host virtual machines and containers
- PCIe expandability allows for installing 10/25/40 adapters, QM2 cards, or Fibre Channel cards to increase application performance
- Built-in App Center includes feature-rich apps for expanding potential NAS applications
Reasons To Buy
HybridMount file-based cloud gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.Description
Embrace the Big Data era with Intel® Xeon® E and ZFS storage featuring inline data deduplication, compression, and compactionIntel® Xeon® E processors deliver extraordinary performance
Powered by an Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz), the TS-h2483XU-RP has enormous processing power to drive virtual machine performance. Combined with 128 GB DDR4 ECC memory and a redundant power supply, the TS-h2483XU-RP delivers cost-effective server-grade performance for complex multitasking and dependable reliability in enterprise IT environments.
10GbE connectivity for high-speed data transfer
The TS-h2483XU-RP provides four Gigabit RJ45 ports, and also supports 10GbE connectivity with a pre-installed dual-port 10GBASE-T network expansion card and a dual-port 10GbE SFP+ SmartNIC to satisfy bandwidth-demanding applications (including virtualization, large file sharing, and high-speed backup and recovery). QNAP also offers numerous options of managed and unmanaged 10GbE switches with 10GbE SFP+/RJ45 and Multi-Gigabit NBASE-T™ support, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Data integrity is key
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.
Data reduction improves storage efficiency and performance
Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.
Multi-level cache technology
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.
QSAL (QNAP SSD Antiwear Leveling) enhances data protection
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.
App Center ecosystem extends NAS functionality
Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h2483XU-RP.
Inline data deduplication, compression, and compaction drives Big Data storage efficiency
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h2483XU-RP optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h2483XU-RP to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
License-free VMware® and Hyper-V backup appliance
With Hyper Data Protector, the TS-h2483XU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 service operation.
Move business data to the cloud and enjoy low latency access to cloud-based data
The TS-h2483XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-h2483XU-RP, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.
HybridMount file-based cloud gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
High-performance, reliable storage solution for virtualization
- Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.
- Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h2483XU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Switch operating systems to upgrade current storage
The TS-h2483XU-RP can also switch to using QTS - QNAP’s standard NAS operating system. This allows you to migrate drives from your current QTS-based NAS to the more powerful TS-h2483XU-RP to upgrade your storage infrastructure.
More productivity applications
Boxafe
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the TS-h2483XU-RP.
Security Counselor
A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Specifications
| Storage | |
|---|---|
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4 |
| RAID levels | 0, 6, 1, 50, JBOD, 5, 60, 10 |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID rebuild | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 80 W |
| Tcase | 73 °C |
| Scalability | 1S |
| Processor threads | 12 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor package size | 37.5 x 37.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Processor cache | 12 MB |
| Processor boost frequency | 4.8 GHz |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| On-board graphics card model | Not available |
| CPU configuration (max) | 1 |
| Maximum internal memory supported by processor | 128 GB |
| Processor ARK ID | 191040 |
| Processor frequency | 3.4 GHz |
| Processor family | Intel Xeon E |
| Processor model | E-2236 |
| Processor cores | 6 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 128 GB |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Flash memory | 5000 MB |
| Memory form factor | UDIMM |
| ECC | Yes |
| Network | |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Supported network protocols | IPv4, IPv6 |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Ports & interfaces | |
| USB port | Yes |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Ethernet LAN (RJ-45) ports | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Concurrent connections | 10000 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4 |
| RAID levels | 0, 6, 1, 50, JBOD, 5, 60, 10 |
| Graphics | |
| On-board graphics card model | Not available |
| Design | |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| LED indicators | HDD, LAN, Status |
| Chassis type | Rack (4U) |
| Technical details | |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Product colour | Black |
| Noise level | 28.7 dB |
| LED indicators | HDD, LAN, Status |
| Chassis type | Rack (4U) |
| Buzzer | Yes |
| Number of fans | 3 fan(s) |
| Harmonized System (HS) code | 84714100 |
| Performance | |
| Built-in FTP server | Yes |
| System log | Yes |
| Share folder access right management | Yes |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Disk scan | Yes |
| Browser supported | Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Linux operating systems supported | CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Web-based management | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH |
| Reset button | Yes |
| Operating system version | h5.0.0 |
| Operating system installed | QuTS hero |
| Noise level | 28.7 dB |
| Buzzer | Yes |
| Access Control List (ACL) | Yes |
| Snapshot | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Fan voltage | 12 V |
| Number of fans | 3 fan(s) |
| Security | |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH |
| Access Control List (ACL) | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Linux operating systems supported | CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Operating system version | h5.0.0 |
| Operating system installed | QuTS hero |
| Management features | |
| On/off switch | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 800 W |
| Fan voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 168.97 W |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 481 mm |
| Depth | 672 mm |
| Height | 176.2 mm |
| Weight | 20.7 kg |
| Package weight | 28.6 kg |
| Packaging content | |
| Number of screws | 192 |
| Quick installation guide | Yes |
| Cables included | AC, Fiber, LAN (RJ-45) |
| Power cables quantity | 2 |
| Processor special features | |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 16 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Secure Key | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® OS Guard | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Clear Video Technology | No |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Memory types supported by processor | DDR4-SDRAM |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Linux operating systems supported | CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Packaging data | |
| Package weight | 28.6 kg |
| Cables included | AC, Fiber, LAN (RJ-45) |
| Other features | |
| Processor ARK ID | 191040 |
| Fibre Channel | Yes |
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
