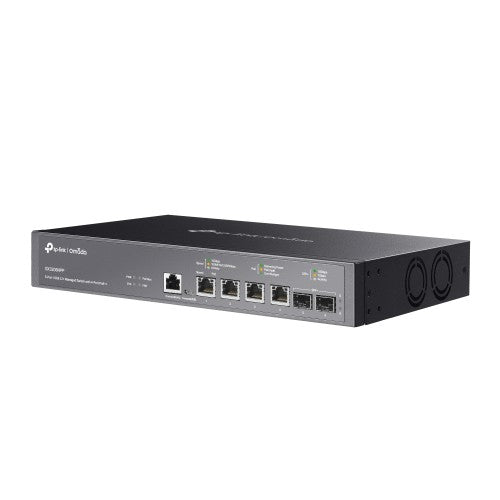

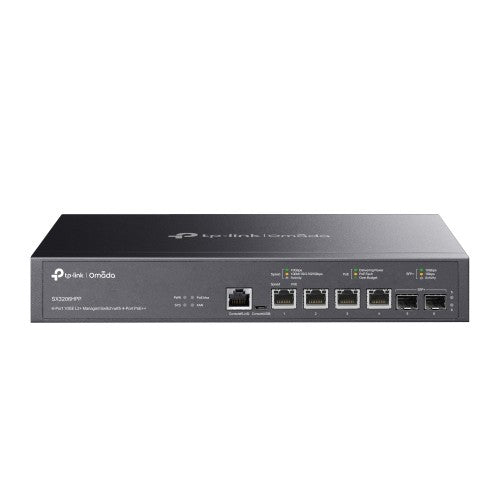

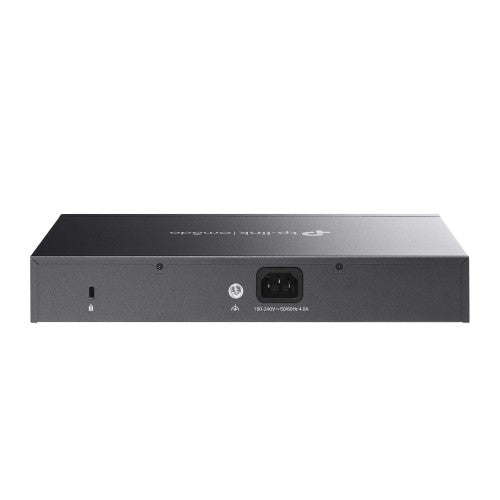

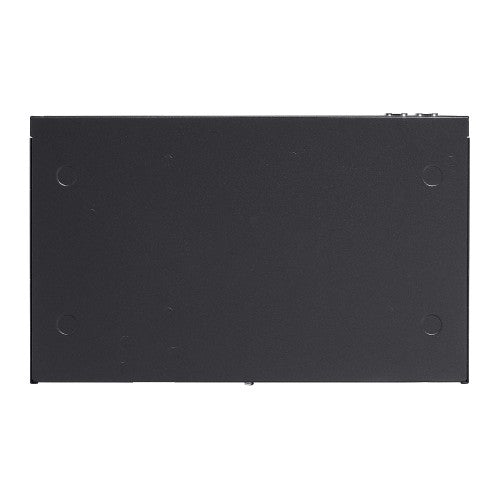

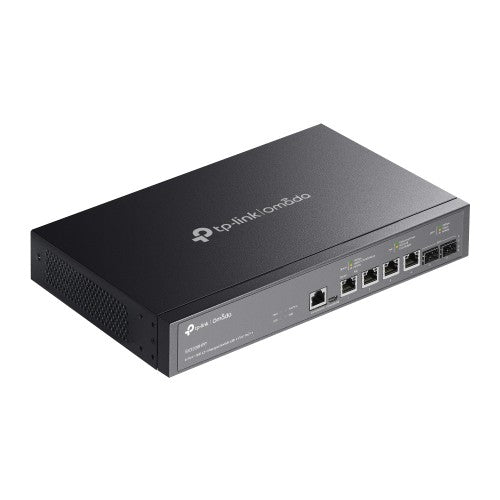

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

4× 100/1000/2500/5000/10000 Mbps RJ45, 2× 10G SFP+ Slots, RJ45/Micro-USB, 120 Gbps, 32 K MAC, 9 KB Jumbo, 294×180×44 mm

Key Features

• 4× 10G PoE++ ports with up to 60 W PoE output per port**
• 2× 10G SFP+ slots
• 200 W total PoE budget*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Desktop / Rack Mounting

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Switch layer	L2+
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Routing entries	512
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
Number of static routes	48
Packet buffer memory	16 MB
MAC address table	32000 entries
Switching capacity	120 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	89.28 Mpps
Number of VLANs	4000
Multicast Listener Discovery (MLD) snooping	MLD v1/v2
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN
SSH/SSL support	Yes
Security algorithms	HTTPS, SSL/TLS
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	AAA, RADIUS, TACACS+
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1/v2
Protocols
Management protocols	SNMP v1/v2c/v3
Design
Product colour	Black
LED indicators	Yes
Rack mounting	Yes
Number of fans	2 fan(s)
Certification	CE, FCC, RoHS
Performance
Minimum system requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Packet buffer memory	16 MB
Power
Power consumption (max)	244.9 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	60 W
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	200 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	835.67 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4000
Virtual LAN features	Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Technical details
Product colour	Black
Rack mounting	Yes
Memory
Packet buffer memory	16 MB
Certificates
Certification	CE, FCC, RoHS
Indication
LED indicators	Yes
System requirements
Minimum system requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
