Axis | SKU:
5801-141
Axis 5801-141 security camera accessory
€137.37
Unit price
/
Unavailable
Shipping calculated at checkout.
Axis 5801-141 security camera accessory is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Security Relay
Key Features
- Fits in standard installation boxes; Support for 12 V and 24 V door strikes; Tamper controlled
Description

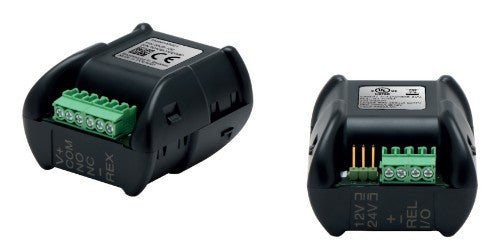

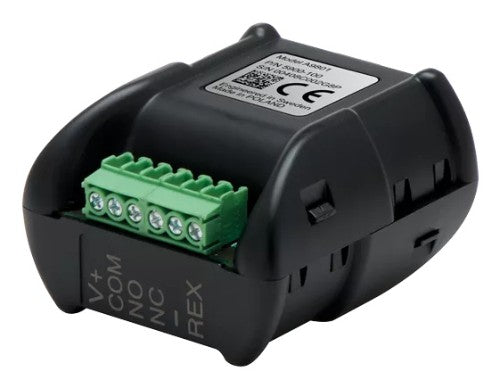

AXIS A9801 Security Relay improves security for doors controlled by Axis network video door stations. The small relay, easily placed in most standard installation boxes, is installed on the secure side of the door. If anyone attempts to dismount or vandalize the door station, AXIS A9801 cuts the connection to the door strike and the door remains securely locked. Normal function can be restored using the relay’s reset button. AXIS A9801 also acts as a power transformer and can double the 12 V output from a door station, thus enabling control of 24 V locks without any extra wiring or power supplySpecifications
| Features | |
|---|---|
| Housing material | Plastic |
| Placement supported | Indoor |
| Product colour | Black |
| Certification | EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, C-tick AS/NZS CISPR 22 Class A, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, IEC/EN/UL 60950-1 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Technical details | |
| Placement supported | Indoor |
| Harmonized System (HS) code | 85299020 |
| Weight & dimensions | |
| Width | 48 mm |
| Weight | 100 g |
| Height | 30 mm |
| Depth | 45 mm |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 100% |
| Operating temperature (T-T) | -20 - 50 °C |
| Certificates | |
| Certification | EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, C-tick AS/NZS CISPR 22 Class A, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, IEC/EN/UL 60950-1 |
| Logistics data | |
| Harmonized System (HS) code | 85299020 |
