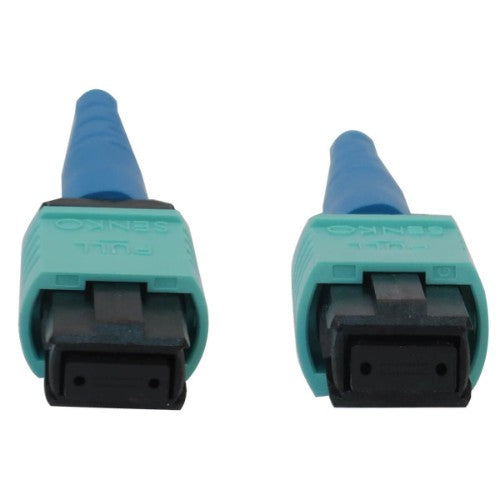

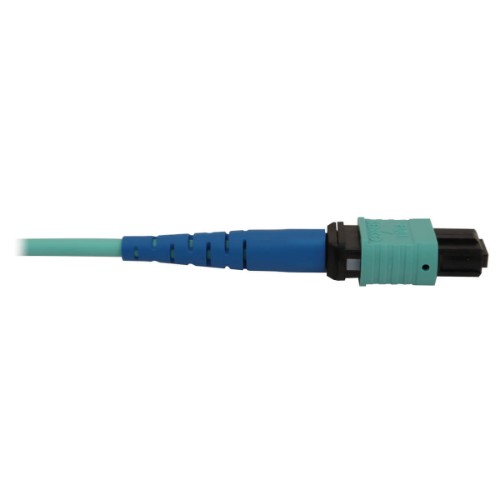

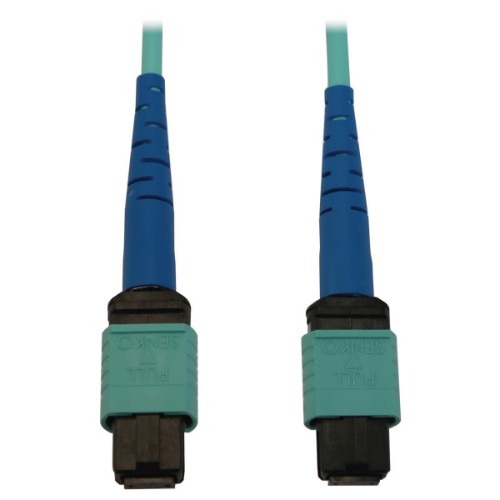

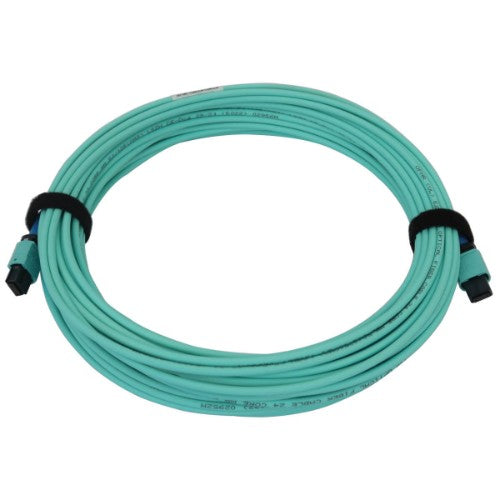

Tripp Lite N846B-15M-24-P 40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (24F MTP/MPO-PC F/F), LSZH, Aqua, 15 m (49.2 ft.)

40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (24F MTP/MPO-PC F/F), LSZH, Aqua, 15 m (49.2 ft.)

Key Features

• OM3-rated cable recommended for 400 Gb speeds up to 100 meters (@ 850 nm)
• Backward compatible with 10/25/40/100 Gb networks to facilitate future-proofing
• Tested for low insertion loss and attenuation loss that meets or exceeds current standards
• Aqua LSZH jacket allows fast, easy identification in a crowded switch or patch panel

Description

40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking
The N846B-15M-24-P is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM3 cable is an ideal choice for 400 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb, 25 Gb, 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

100% Tested for Low Insertion Loss and Attenuation Loss
The cable is tested for low insertion loss on the factory-terminated 24-fiber MTP/MPO connectors and attenuation loss that meets or exceeds current standards. The connectors’ slim boots allow easy one-handed installation and removal of the cable.

Aqua-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM3-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

Specifications

Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	MPO/MTP
Connector 2	MPO/MTP
Cable type	OFNR
Cable length	15 m
Core diameter	50 µm
Cladding diameter	125 µm
Insertion loss	0.35 dB
Sustainability compliance	Yes
Sustainability certificates	UL ECOLOGO
Master (outer) case GTIN (EAN/UPC)	10037332271720
Compliance certificates	RoHS, CE, REACH
Features
Bending radius	2 cm
Fibre optic type	OM3
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	MPO/MTP
Connector 2	MPO/MTP
Cable type	OFNR
Cable length	15 m
Core diameter	50 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-10 - 60 °C
Insertion loss	0.35 dB
Data transfer rate	400 Gbit/s
Country of origin	China
Ethernet interface type	40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet
Wavelengths supported	850,1300 nm
Harmonized System (HS) code	8544.70.0000
Product colour	Aqua colour, Black, Blue
Connector 2 gender	Female
Connector 1 gender	Female
Connector polish type	PC
Data transmission
Data transfer rate	400 Gbit/s
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-10 - 60 °C
Weight & dimensions
Bending radius	2 cm
Cable length	15 m
Package width	266.7 mm
Package depth	12.7 mm
Package height	304.8 mm
Cable diameter	3 mm
Package weight	150 g
Packaging data
Package width	266.7 mm
Package depth	12.7 mm
Package height	304.8 mm
Package weight	150 g
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	375.9 mm
Master (outer) case length	154.9 mm
Master (outer) case height	149.9 mm
Master (outer) case gross weight	1.56 kg
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	8544.70.0000
Quantity per pack	1 pc(s)
