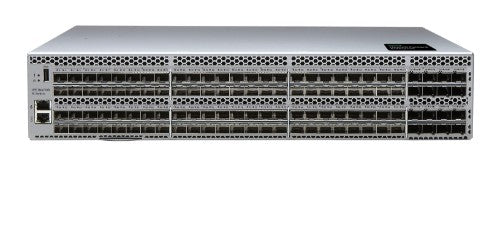

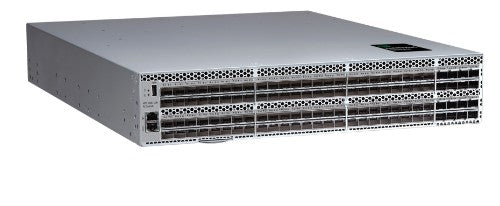

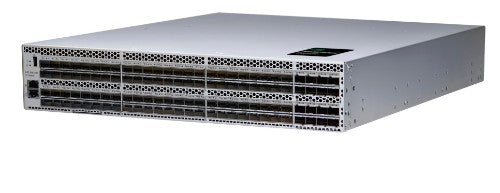

HPE SN6750B 64Gb 48/128 48-port 64Gb Short Wave SFP56 Integrated Fibre Channel Switch

SN6750B 64Gb 48/128 48-port 64Gb Short Wave SFP56 Integrated Fibre Channel Switch

Reasons To Buy

Enhanced Security

With enhanced security and autonomous SAN technology, the HPE Storage Fibre Channel Switch B-series SN6750B takes the guesswork out of protecting and managing a network.
It enables a cyber-resilient network that protects against security threats, enables nonstop operations, and increases management automation.

Increase Performance for Application and Solid State Storage Architectures

The HPE Storage Fibre Channel Switch B-series SN6750B delivers increased performance through a combination of improved throughput and low latency across 64Gb links in hyper-scale virtualization, large cloud infrastructures, and growing flash-based storage environments.
Improved performance of NVMe storage with 50% lower switching latency than 32Gb. Latency for locally switched ports is 460 ns including forward error correction (FEC). ^[1]
With 96 SFP+ ports and 16 DD ports, it can scale up to 128 device ports for an aggregate throughput of 8.192Tbps. ^[1]

Ultra-dense and Highly Scalable

The HPE Storage Fibre Channel Switch B-series SN6750B scales up to 128 device ports in an efficiently designed 2U form factor, delivering increased port density and space utilization for simplified scalability.
Each of the 96 SFP+ ports and 16 DD ports supports 8, 10, 16, 32, and 64Gb FC speeds.
Provides flexibility to utilize high-speed 64Gb, 64Gb DD, 32Gb, 10Gb optics on demand to meet growing data center needs and provide backward compatibility to older infrastructures.

Description

Are you struggling to meet the I/O demands of hyper-scale virtualization, large cloud infrastructures, and growing flash-based storage environments? The HPE Storage Fibre Channel Switch B-series SN6750B is an ultra-dense, high-performance, highly scalable, enterprise-class storage networking switch delivering Gen7 64Gb Fibre Channel capabilities. It is designed to support data growth, demanding workloads, and data center consolidation in large scale enterprise infrastructures. Delivering 64Gb performance and high port density, it accelerates data access, adapts to evolving requirements, and drives 24x7 businesses. It can scale from 48 to 128 ports with Port On Demand (POD) upgrades in a 2U package enabling organizations to create high-scale fabrics in less space. In addition, with a 50% latency reduction compared to the previous generation and no oversubscription, the switch improves performance of NVMe storage and high-transaction workloads.^[1]

What is new supporting point:
Features switch offerings with 64Gb optics as well as Port-on-Demand upgrade kits bundled with 64Gb optics or 64Gb double-density (DD) optics, enabling scaling from 48 to 128 ports.
HPE Storage SN6750B Gen7 64Gb fibre channel switch technology enables organizations to realize a self-learning, self-optimizing, and self-healing autonomous SAN.
HPE Storage SN6750B Gen7 64Gb fibre channel switch technology enables organizations to realize a self-learning, self-optimizing, and self-healing autonomous SAN.

Specifications

Protocols
Supported protocols	Fibre Channel
Design
Form factor	2U
Performance
Media types supported	Supports 64Gb, 32Gb SFP and 64Gb DD transceivers
Power
Redundant power supply (RPS) support	Yes
Other features
Weight (imperial)	18.9 kg (41.7 lbs)
Upgrade type	Activate additional ports using 24 port SFP and 32 port DD POD Kit upgrades
Technical features	Hot code load, ports on demand with no downtime; hot-swappable redundant power supplies with integrated cooling fans
Port speed rating	64Gb
Optional software	SANnav, All offerings include HPE Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric, Integrated Routing, and FICON CUP)
Dimensions (W x D x H) (imperial)	439.9 x 86.6 x 609.6 mm (17.3 x 3.41 x 24")
Supported protocols	Fibre Channel
Weight & dimensions
Width	440 mm
Depth	86.7 mm
Height	609.6 mm
Weight	18.9 kg
Weight (imperial)	18.9 kg (41.7 lbs)
Dimensions (W x D x H) (imperial)	439.9 x 86.6 x 609.6 mm (17.3 x 3.41 x 24")
Technical details
Form factor	2U
Upgrade type	Activate additional ports using 24 port SFP and 32 port DD POD Kit upgrades
Technical features	Hot code load, ports on demand with no downtime; hot-swappable redundant power supplies with integrated cooling fans
Supported protocols	Fibre Channel
Port speed rating	64Gb
Optional software	SANnav, All offerings include HPE Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric, Integrated Routing, and FICON CUP)
System requirements
Media types supported	Supports 64Gb, 32Gb SFP and 64Gb DD transceivers
