Netgear | SKU:
AGM731F
9% off

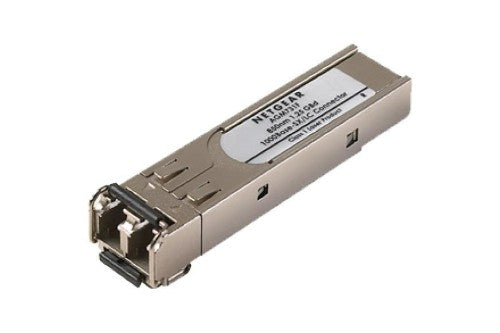

NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches
€116.68
€127.96
Unit price
/
Unavailable
Shipping calculated at checkout.
NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
LC, SFP, 1000Base-SX, 1000m, 850nm, 500 mW, RoHS
Key Features
- Gigabit Ethernet “short-reach” fiber connectivity
- LC duplex connector
- Fits into SFP interfaces of all Fully Managed Switches
- Fits into SFP interfaces of all Smart Switches
- Fits into SFP interfaces of JGS524F
- Drives Gigabit Ethernet up to 1,000 m distances with 50/125µm laser-optimized OM4 multimode fiber cables
- Drives Gigabit Ethernet up to 550 m distances with 50/125µm laser-optimized OM3 multimode fiber cables
- Drives Gigabit Ethernet up to 275 m distances with 62.5/125ìm OM1 multimode fiber cables
Description
The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Ethernet LAN | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 1000 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Duplex system | Full |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Fiber ethernet cabling technology | 1000BASE |
| Product colour | Silver |
| Housing material | Metal |
| Mean time between failures (MTBF) | 87658 h |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Housing material | Metal |
| Mean time between failures (MTBF) | 87658 h |
| Safety | UL 1950, CSA 22.2 No.60 950 |
| Power | |
| Input voltage | 3.3 V |
| Power consumption (typical) | 0.5 W |
| Certificates | |
| Safety | UL 1950, CSA 22.2 No.60 950 |
| Compliance certificates | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 13.8 mm |
| Height | 8.5 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Maximum transfer distance | 1000 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Duplex system | Full |
| Ethernet LAN | Yes |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
