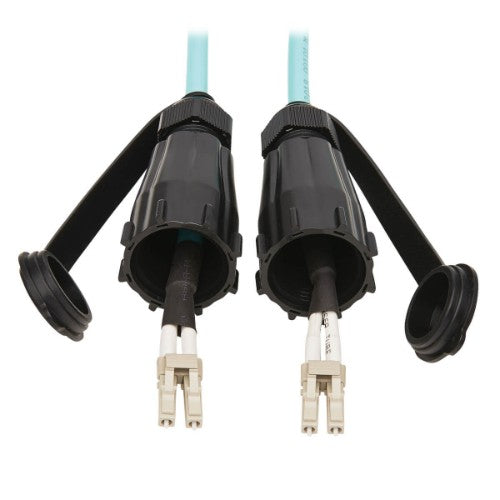

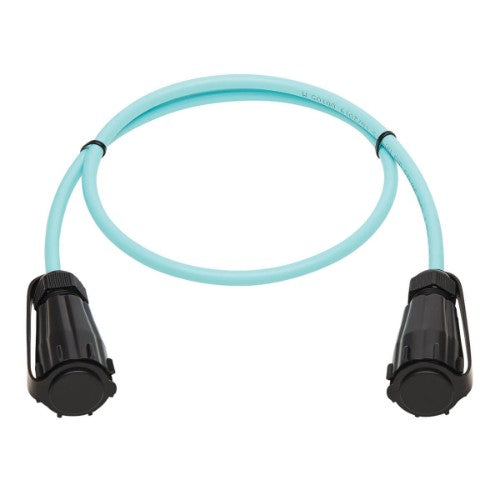

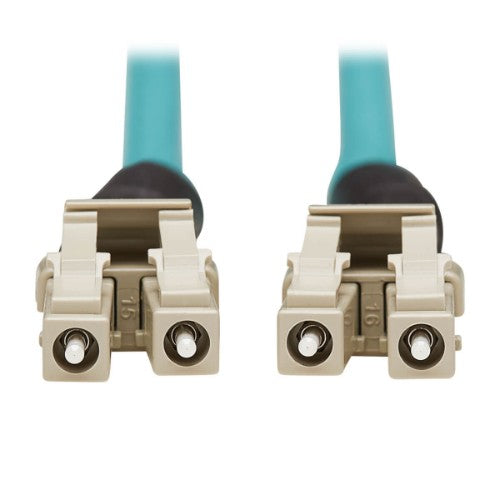

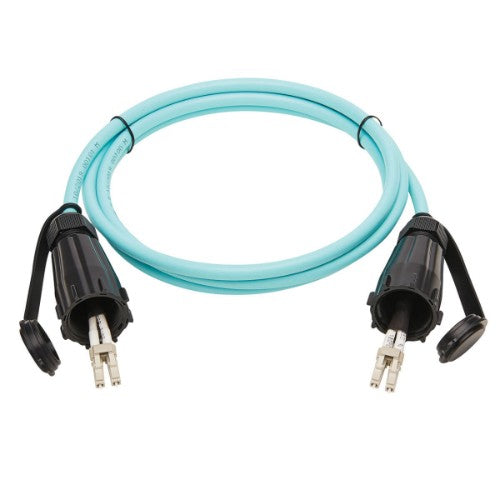

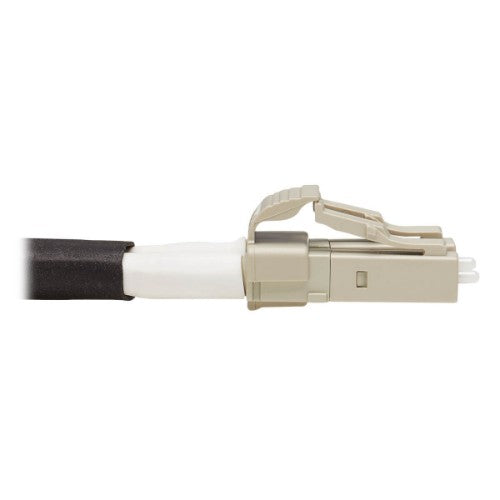

Tripp Lite N820-02M-IND 10Gb Rigid Industrial Duplex Multimode 50/125 OM3 Fiber Patch Cable (LC/LC) - IP68, Aqua, 2 m (6.6 ft.)

10Gb Rigid Industrial Duplex Multimode 50/125 OM3 Fiber Patch Cable (LC/LC) - IP68, Aqua, 2 m (6.6 ft.)

Key Features

• Protects 10Gb fiber Ethernet applications in outdoor or harsh environments
• Resists dust and endures immersion in 1.5 m of water up to 60 min.
• Low insertion loss of >0.10 db ensures a strong signal through your network
• Color-coded aqua for fast, easy OM3 identification in a crowded rack or patch panel

Description

10G Duplex Multimode Cable Designed for Outdoor or Harsh Indoor Environments
This 6.6-foot (two-meter) 50/125 OM3 LC/LC IP68-rated outdoor cable is ideal for connecting 10G Ethernet fiber networks in outdoor applications and other areas where protection from harsh elements is essential, such as factories, warehouses, recycling plants, machine shops and other dusty environments. The rigid, durable cable and small-form-factor LC duplex connectors withstand dust, debris and moisture that could threaten your IT infrastructure. Included dust caps are located at both ends for protection from dust and debris when the connectors are not in use.

IP68 Rating Denotes Resistance to Dust and Water

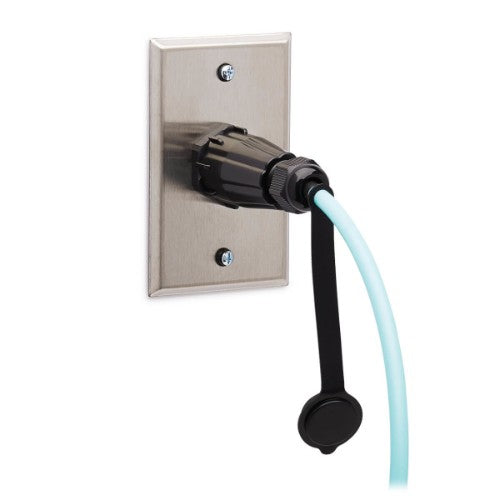

The fiber cable is 100% protected against dust and able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance. Concentration of water moisture in fiber connectors will lead to glass damage and can severely disrupt or halt performance of optical cables. For applications that require IP68 protection, use the industrial cable with a N206-SB01-IND surface-mount box and an N455-BC01-IND bulkhead coupler. If only IP44 protection against splashing water from all directions is required, pair the cable with a N206-FP01-IND, N206-FP02-IND or N206-FP04-IND metal wall plate and an N455-BC01-IND bulkhead coupler.

Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
This fiber cable features an aqua PVC jacket with LC duplex ends. The color-coding allows easy, fast OM3 identification in a crowded rack, patch panel or workstation and helps prevent the cable from becoming inadvertently disconnected.

Specifications

Features
Fibre optic type	OM3
Jacket material	Polyvinyl chloride (PVC)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	LC
Cable length	2 m
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Insertion loss	0.1 dB
Data transfer rate	10 Gbit/s
Product colour	Aqua colour
Connector 2 gender	Male
Connector 1 gender	Male
Bending radius	15 cm
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-15 - 60 °C
Certification	UL, IP68
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Certificates
Certification	UL, IP68
Compliance certificates	REACH, RoHS
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-15 - 60 °C
Weight & dimensions
Bending radius	15 cm
Cable diameter	7.5 mm
Cable length	2 m
Package width	203.2 mm
Package depth	12.7 mm
Package height	9.8 mm
Package weight	170 g
Packaging data
Package width	203.2 mm
Package depth	12.7 mm
Package height	9.8 mm
Package weight	170 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Jacket material	Polyvinyl chloride (PVC)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	LC
Cable length	2 m
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Insertion loss	0.1 dB
Master (outer) case GTIN (EAN/UPC)	10037332252736
Compliance certificates	REACH, RoHS
Data transmission
Data transfer rate	10 Gbit/s
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	457.2 mm
Master (outer) case length	25.4 mm
Master (outer) case height	508 mm
Master (outer) case gross weight	1.77 kg
Products per master (outer) case	10 pc(s)
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Master (outer) case GTIN (EAN/UPC)	10037332252736
