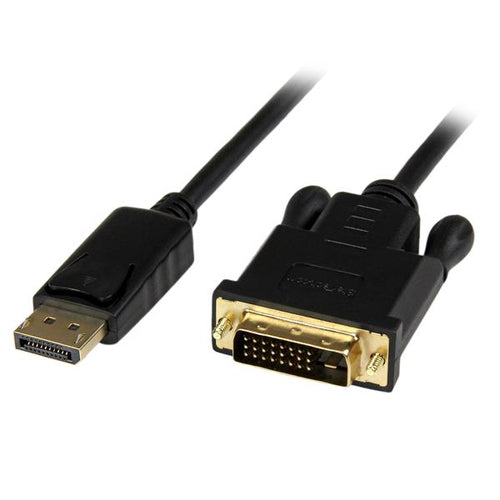

StarTech.com 6ft (1.8m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to DVI Adapter Cable - DisplayPort to DVI-D Cable Single Link - DP 1.2 to DVI Monitor Cable Converter

StarTech.com 6ft (1.8m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to DVI Adapter Cable - DisplayPort to DVI-D Cable Single Link - DP 1.2 to DVI Monitor Cable Converter (DP2DVIMM6BS)

Description

Connect a DisplayPort-equipped PC to a DVI display, with an active 6ft cable

The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older DVI monitor or projector.

For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.

The DP2DVIMM6BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

This adapter is not compatible for use with the Apple Cinema Display.

The StarTech.com Advantage

Specifications

Features
Converter type	Active
Chipset	Parade - PS171
Audio connector	No
DisplayPort version	1.2
Product colour	Black
Cable length	1.8 m
Connector 1	DisplayPort
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	1920 x 1200 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Plug and Play	Yes
Certification	CE, FCC, REACH
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	40 - 85%
Other features
Width	40 mm
Height	15 mm
Depth	1900 mm
Weight & dimensions
Width	40 mm
Height	15 mm
Depth	1900 mm
Weight	105.2 g
Package width	194 mm
Package depth	220 mm
Package height	15 mm
Package weight	123 g
Packaging data
Package width	194 mm
Package depth	220 mm
Package height	15 mm
Package weight	123 g
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	415 mm
Master (outer) case height	435 mm
Products per master (outer) case	150 pc(s)
Harmonized System (HS) code	84733080
