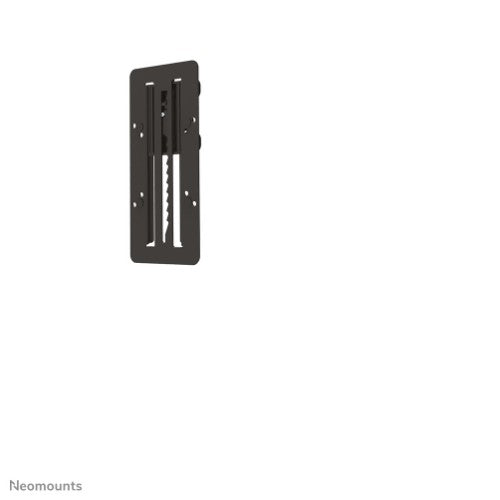

Neomounts FPMA-LIFT100BLACK Height adjustable VESA adapter - universal

Neomounts FPMA-LIFT100BLACK Height adjustable VESA adapter - max 8 kg - VESA 75x75-100x100 - universal - black

Description

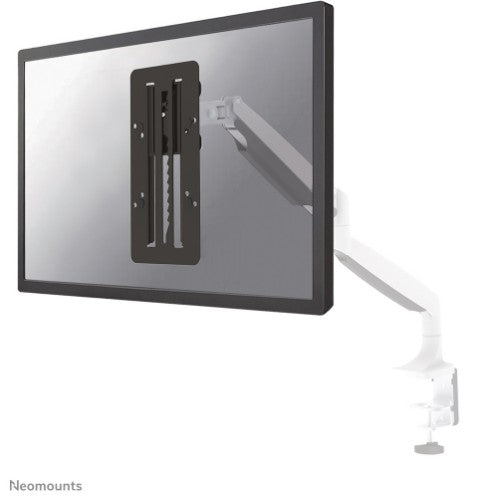

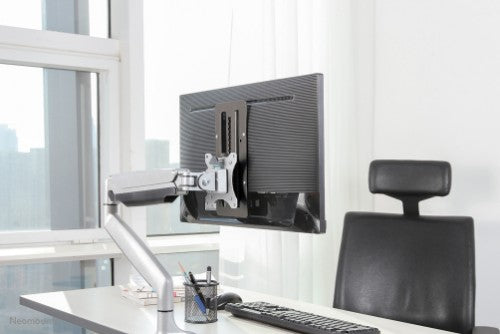

The Neomounts adapter, model FPMA-LIFT100BLACK, allows to adjust the height of a flatscreen. This adapter fits to all mounts with VESA75 or VESA100. Ideal to combine with wall mounts, desk mounts, and ceiling mounts. Combinations with the keyboard tray are also possible.

The height is adjustable from 0 to 17,7 cm. This offers maximum height range for the best viewing position.

The FPMA-LIFT100BLACK is suitable for screens up to 27" (68 cm). Weight capacity is 8 kg per screen. This product is suitable for screens with a VESA hole pattern 75x75 or 100x100 mm. Do you have a different (larger) hole pattern, you can solve this with one of our VESA conversion plates.

All installation material is included with the product.

Specifications

Mounting
Mounting type	Desk

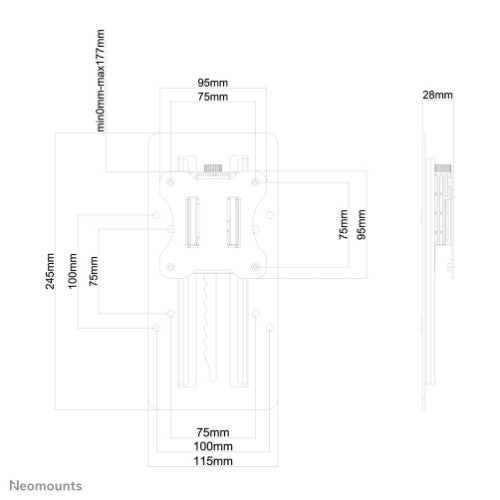

Height adjustment range	0 - 177 mm
Height adjustment	Yes
Maximum screen size	68.6 cm (27")
Number of displays supported	1
Maximum weight capacity	8 kg
Panel mounting interface	100 x 100,75 x 75 mm
Product colour	Black
Features
Mounting type	Desk
Height adjustment range	0 - 177 mm
Height adjustment	Yes
Maximum screen size	68.6 cm (27")
Number of displays supported	1
Maximum weight capacity	8 kg
Panel mounting interface	100 x 100,75 x 75 mm
Product colour	Black
Housing material	Steel
Maximum VESA mount	100 x 100 mm
Technical details
Mounting type	Desk
Height adjustment range	0 - 177 mm
Height adjustment	Yes
Product colour	Black
Package net weight	660 g
Package weight	700 g
Package depth	33 mm
Package width	117 mm
Package height	261 mm
Maximum weight capacity	8 kg
Panel mounting interface	100 x 100,75 x 75 mm
Master (outer) case net weight	15.8 kg
Country of origin	China
Weight & dimensions
Weight	660 g
Height	177 mm
Package weight	700 g
Package depth	33 mm
Package width	117 mm
Package height	261 mm
Colour
Product colour	Black
Packaging data
Package weight	700 g
Package depth	33 mm
Package width	117 mm
Package height	261 mm
Package net weight	660 g
Logistics data
Master (outer) case width	375 mm
Master (outer) case length	160 mm
Master (outer) case height	240 mm
Master (outer) case gross weight	18.1 kg
Products per master (outer) case	24 pc(s)
Master (outer) case net weight	15.8 kg
Products per pallet (EU)	576 pc(s)
Harmonized System (HS) code	7326909890
