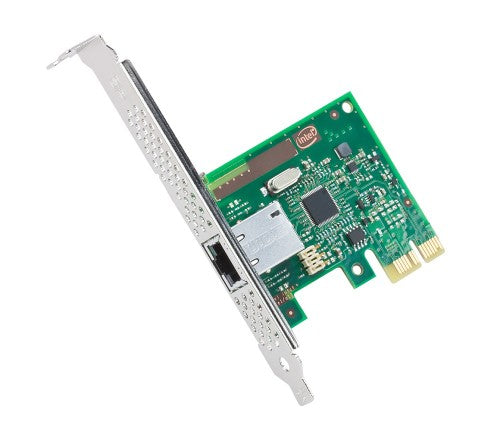

Intel I210T1BLK network card Internal Ethernet 1000 Mbit/s

Intel Ethernet Server Adapter I210T1

Key Features

• Low-halogen1 single-port PCI-Express 10/100/1000 Ethernet adapter
• Innovative power management features including Energy Efficient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased efficiency and reduced power consumption
• IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization buffering, and reservation
• High-performing design supporting PCI Express Gen 2.1 2.5GT/s
• Reliable and proven Gigabit Ethernet technology from Intel Corporation

Description

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Specifications

Ports & interfaces
Internal	Yes
PCI version	2.1
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Technical details
Interface type	PCIe v2.1 (2.5 GT/s)
Thermal power	1 W
Speed & slot width	2.5 GT/s, x1 Lane
PCI-SIG* SR-IOV Capable	No
On-chip QoS and Traffic Management	No
Low halogen options available	No
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtual Machine Device Queues (VMDq)	No
Intel Flexible Port Partitioning	No
Intel Ethernet Power Management	Yes
Intel Data Direct I/O Technology	No
Fiber Channel over Ethernet	No
Harmonized System (HS) code	85176990
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Thermal Design Power (TDP)	1 W
Product type	Network Interface Card
Processor family	Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Status	Launched
Product brief URL	http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html
Network interface card type	Server
Network interface card cable medium	Copper
Market segment	Server
Launch date	Q1'13
Last change	63903513
Network
Ethernet LAN	Yes
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Maximum operating distance	100 m
LAN controller	Intel I210
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Design
Internal	Yes
Conflict-Free	Yes
Product family	Intel Gigabit server adapter
Product series	Intel I210
Performance
Conflict-Free	Yes
Ethernet adapter ARK ID	68668
Thermal power	1 W
Speed & slot width	2.5 GT/s, x1 Lane
PCI-SIG* SR-IOV Capable	No
On-chip QoS and Traffic Management	No
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtual Machine Device Queues (VMDq)	No
Intel Flexible Port Partitioning	No
Intel Ethernet Power Management	Yes
Intel Data Direct I/O Technology	No
Fiber Channel over Ethernet	No
Logistics data
Harmonized System (HS) code	85176990
Other features
Conflict-Free	Yes
Thermal Design Power (TDP)	1 W
Product type	Network Interface Card
Processor family	Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Ethernet adapter ARK ID	68668
Interface type	PCIe v2.1 (2.5 GT/s)
Cable type	RJ45 Category 5, up to 100 m
Thermal power	1 W
Speed & slot width	2.5 GT/s, x1 Lane
PCI-SIG* SR-IOV Capable	No
On-chip QoS and Traffic Management	No
Low halogen options available	No
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtual Machine Device Queues (VMDq)	No
Intel Flexible Port Partitioning	No
Intel Ethernet Power Management	Yes
Intel Data Direct I/O Technology	No
Fiber Channel over Ethernet	No
Status	Launched
Product brief URL	http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html
Network interface card type	Server
Network interface card cable medium	Copper
Market segment	Server
Launch date	Q1'13
Last change	63903513
Product family	Intel Gigabit server adapter
Product series	Intel I210
Harmonized System (HS) code	85176990
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Controller type	Intel I210
Cabling type	RJ45 Category 5, up to 100 m
Bracket height	Low-Profile (LP) / Full-Height (FH)
