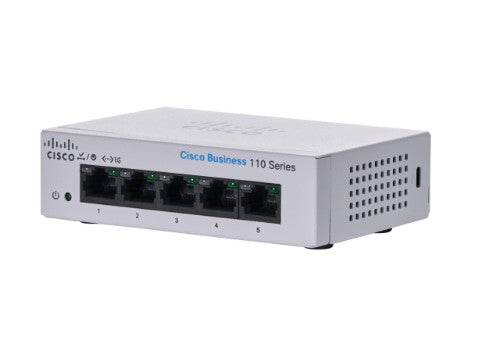

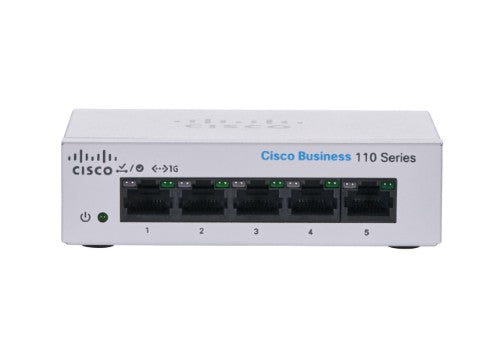

Cisco Business CBS110-5T-D Unmanaged Switch | 5 Port GE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-5T-D)

Business CBS110-5T-D Unmanaged Switch | 5 Port GE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-5T-D)

Key Features

• SWITCH PORTS: 5 -Port 10/100/1000
• SIMPLE: Plug-and-play without a need for IT know-how or support.

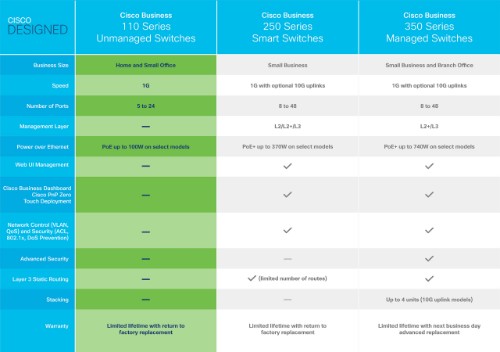

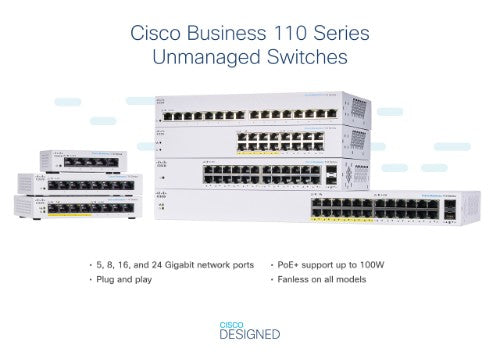

• FLEXIBLE: Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations
• PERFORMANCE: Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
• INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
• ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in all models
• PEACE OF MIND: Limited-lifetime warranty with return to factory replacement and one-year technical support

Description

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Technical details
Product colour	Grey
Mean time between failures (MTBF)	4243002 h
Rack mounting	No
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Switch layer	L2
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Head-of-line (HOL) blocking	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Half duplex	Yes
Data transmission
Jumbo frames	9216
MAC address table	2048 entries
Switching capacity	10 Gbit/s
Number of queues	4
Jumbo frames support	Yes
Forwarding rate	7.4 Mpps
Security
Queue scheduling algorithms	Weighted Round Robin (WRR)
Certificates
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Design
Country of origin	China
Product colour	Grey
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Rack mounting	No
Performance
Mean time between failures (MTBF)	4243002 h
Harmonized System (HS) code	85176990
Packaging content
Packaging content	Switch, Power cord or adapter, Mounting hardware and Quick Start Guide
Quick start guide	Yes
Power
Power supply included	Yes
Redundant power supply (RPS) support	No
Number of power supply units	1
DC input voltage	12 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	9.34 BTU/h
Weight & dimensions
Width	74.9 mm
Depth	110 mm
Height	30 mm
Weight	240 g
Packaging data
Quick start guide	Yes
Package width	144.8 mm
Package depth	222 mm
Package height	55.9 mm
Package weight	440 g
Logistics data
Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
Other features
Packaging content	Switch, Power cord or adapter, Mounting hardware and Quick Start Guide
Ethernet LAN data rates	10,100,1000 Mbit/s
Country of origin	China
