Intellinet | SKU:
513579

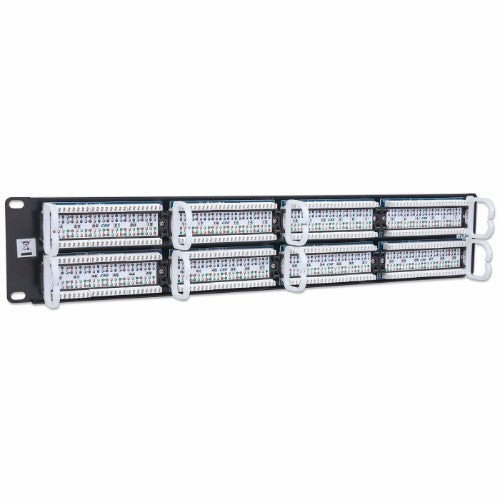

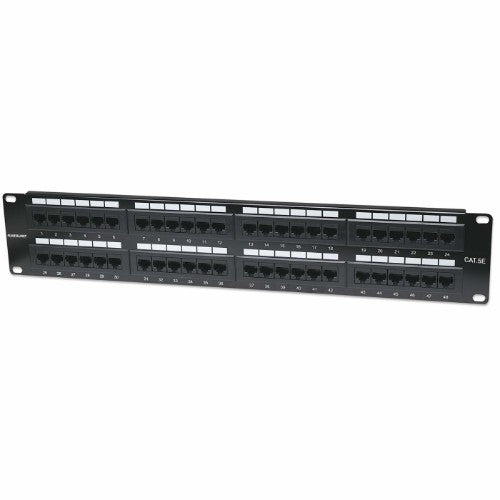

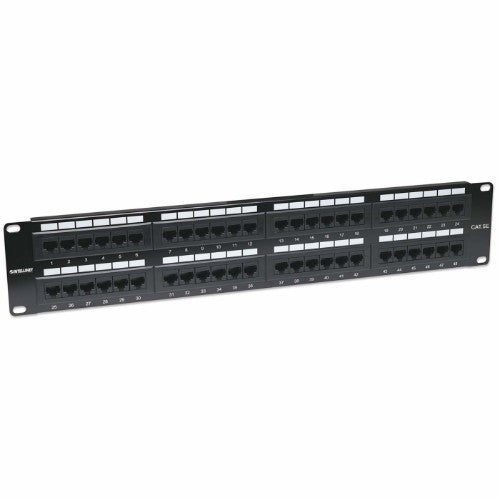

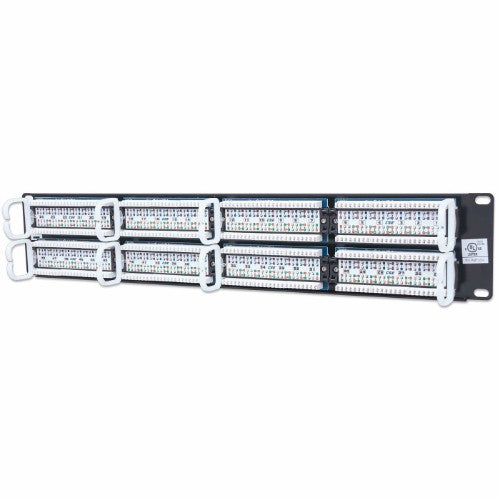

Intellinet Patch Panel, Cat5e, UTP, 48-Port, 2U, Black
€36.01
Unit price
/
Unavailable
Shipping calculated at checkout.
Intellinet Patch Panel, Cat5e, UTP, 48-Port, 2U, Black is backordered and will ship as soon as it is back in stock.
Order Delivery Notice: Thursday 18th December is the last day for orders before Christmas.
Any orders placed after Thursday 18th December will be despatched on Monday 5th January 2026.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Patch Panel, Cat5e, UTP, 48-Port, 2U, Black
Key Features
- Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 50 micro-inch gold-plated jack contacts
- Compatible with both 110 and Krone punch-down tools
- Supports 22 to 26 AWG stranded and solid wire
- For use with unshielded twisted pair (UTP) Cat5e network cable
- Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
- Connects 48 RJ45 ports to a network
- Occupies 2U rack height
- Meets 19" rackmount standards
- Lifetime Warranty
Description
The backbone of your network is central to your organisation's success. Trust Intellinet Network Solutions to provide Patch Panels that maintain the integrity of your data. The Patch Panel enables you to quickly change the port assignment of any piece of equipment that's attached to your network. Our range of Patch Panels feature varying port densities across a complete range of specifications–from Cat5e to Cat6a in both Unshielded and Shielded varieties. All Patch Panels comply with current industry standards and are 19”-rack compliant.Specifications
| Network | |
|---|---|
| Connector contacts plating | Gold |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Cable types supported | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Ports quantity | 48 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Connector(s) | RJ-45 |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 2U |
| Product colour | Black |
| Certification | UL E313857 |
| Certificates | |
| Certification | UL E313857 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Width | 88 mm |
| Weight | 1.37 kg |
| Height | 48 mm |
| Depth | 482 mm |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 2U |
| Product colour | Black |
| Certification | UL E313857 |
| Technical details | |
| Mounting | Rack mounting |
| Operating temperature (T-T) | -40 - 80 °C |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Harmonized System (HS) code | 85371098 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 85371098 |
