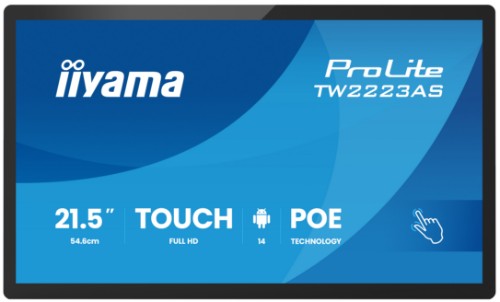

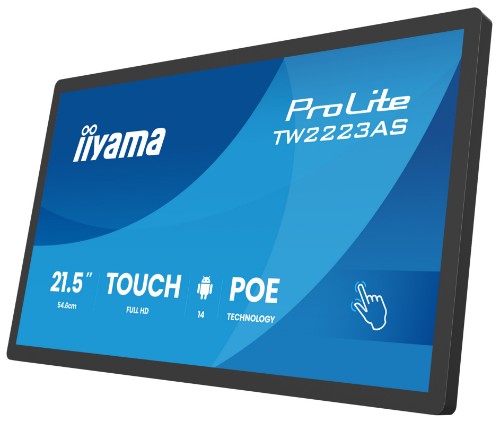

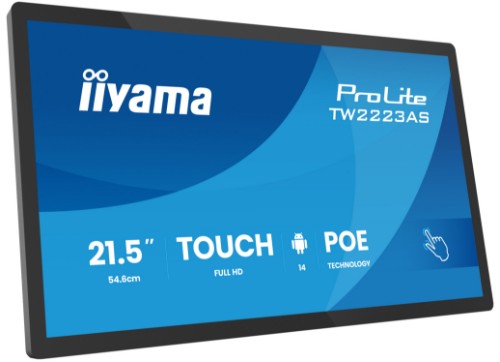

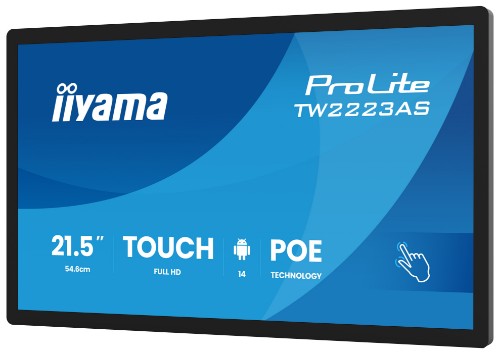

iiyama TW2223AS-B3P Signage Display Interactive flat panel 54.6 cm (21.5") Wi-Fi 450 cd/m² Full HD Black Touchscreen Built-in processor Android 24/7

21.5” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology, anti glare coating, PoE Technology and iiSignage²

Reasons To Buy

Connectivity

The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Description

The ProLite TW2223AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.

Specifications

Display
Panel type	IPS
Display number of colours	16.7 million colours
Number of simultaneous touchpoints	10
Touchscreen	Yes
Active display area (W x H)	476.1 x 267.8 mm
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Display brightness	450 cd/m²
HD type	Full HD
Response time	14 ms
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.248 x 0.248 mm
Display diagonal (metric)	54.6 cm
Native aspect ratio	16:9
Horizontal scan range	31 - 83 kHz
Colour depth	8 bit
Touchscreen technology	Projected capacitive system
Surface hardness	6H
Glass thickness	2.9 mm
Ports & interfaces
USB connector type	USB Type-C
USB port	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-Fi	Yes
Microphone in	Yes
Compatible memory cards	SD
Card reader integrated	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
DVI port	No
Audio (L/R) in	2
Ethernet LAN (RJ-45) ports	1
USB ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Audio
RMS rated power	4 W
Built-in speaker(s)	Yes
Design
Product design	Interactive flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black

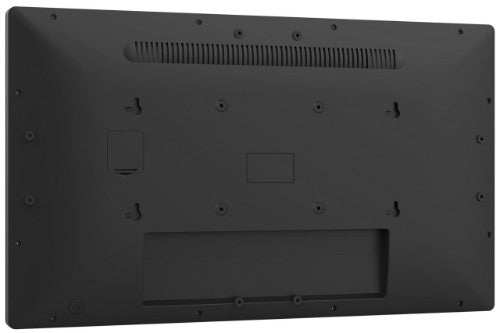

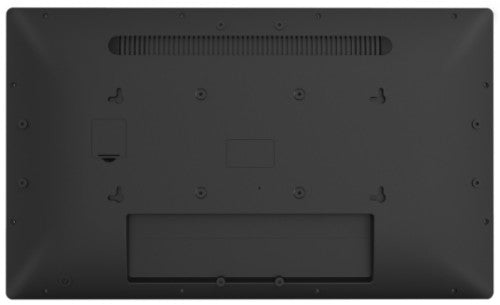

Panel mounting interface	100 x 100 mm
VESA mounting	Yes
Screen shape	Flat
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
HDCP	Yes
Wi-Fi	Yes
Power
Power consumption (off)	0.3 W
Power consumption (typical)	15.4 W
Power consumption (standby)	0.5 W
Power over Ethernet (PoE)	Yes
Computer system
Computer system	Yes
Processor family	ARM Rockchip
Processor model	Rockchip RK3576
Operating system installed	Android
Built-in processor	Yes
Google applications	Google Chrome, Gmail, Google Calendar
Operating system version	14
Weight & dimensions
Width (with stand)	504.5 mm
Height (with stand)	302 mm
Depth (with stand)	32 mm
Width	504.5 mm
Depth	32 mm
Height	302 mm
Weight	3.64 kg
Weight (with stand)	3.64 kg
Packaging data
Package width	580 mm
Package depth	375 mm
Package height	126 mm
Package weight	6 kg
Quick start guide	Yes
Cables included	AC
Packaging content
Quick start guide	Yes
Cables included	AC
Technical details
VESA mounting	Yes
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
USB connector type	USB Type-C
Power supply type	External
Panel type	IPS
Cable management	Yes
Brightness	450 cd/m²
Number of simultaneous touchpoints	10
Weight (with stand)	3.64 kg
User controls	Power switch, volume/ button +, volume/ button -
Sustainability certificates	ErP
Compliance certificates	CE, EAC, REACH, RoHS, UKCA, WEEE
Network
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Thin Client
Processor family	ARM Rockchip
Processor model	Rockchip RK3576
Operating system installed	Android
Other features
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
USB connector type	USB Type-C
Power supply type	External
Panel type	IPS
Cable management	Yes
Brightness	450 cd/m²
Number of simultaneous touchpoints	10
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-Fi	Yes
Width (with stand)	504.5 mm
Viewable size, vertical	26.8 cm
Viewable size, horizontal	47.6 cm
Microphone in	Yes
Mean time between failures (MTBF)	50000 h
Height (with stand)	302 mm
Depth (with stand)	32 mm
Compatible memory cards	SD
Card reader integrated	Yes
Bluetooth version	5.3
Bluetooth	Yes
Quick start guide	Yes
AC adapter included	Yes
Weight (with stand)	3.64 kg
