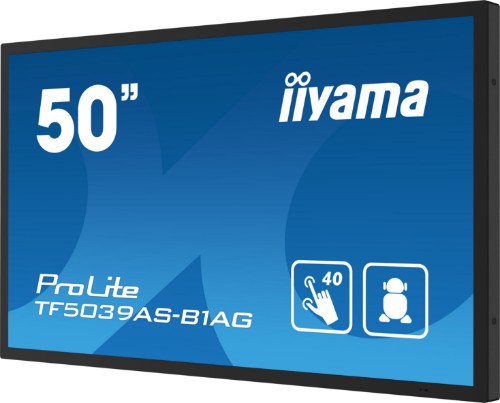

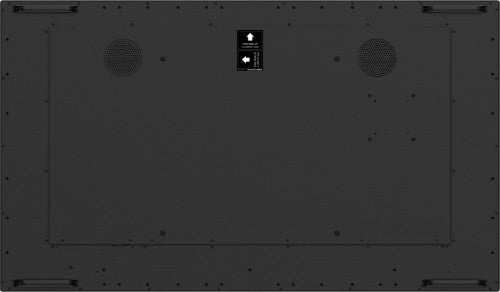

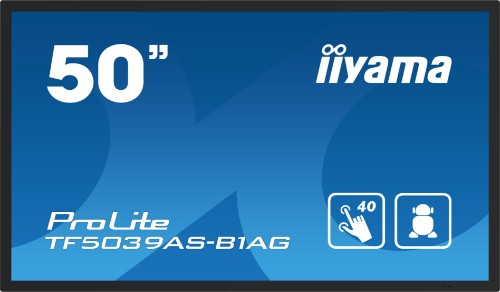

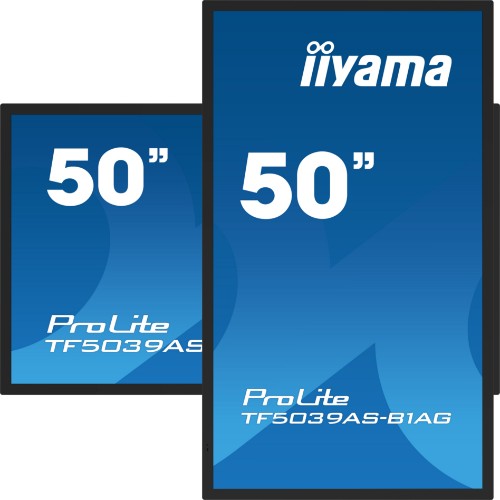

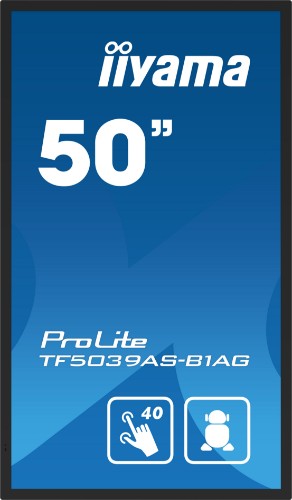

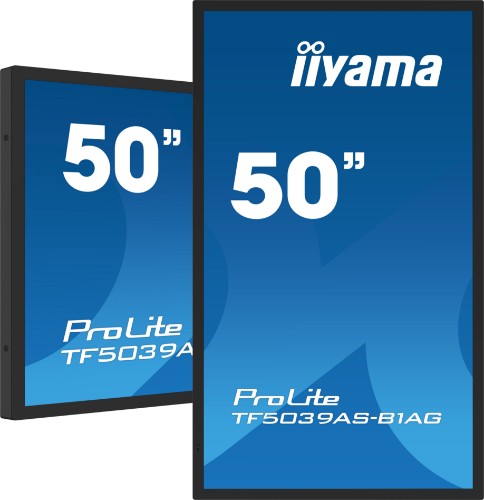

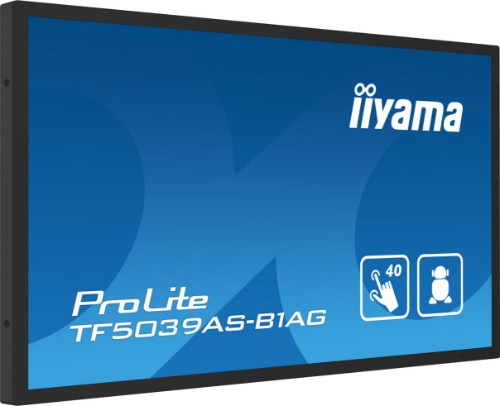

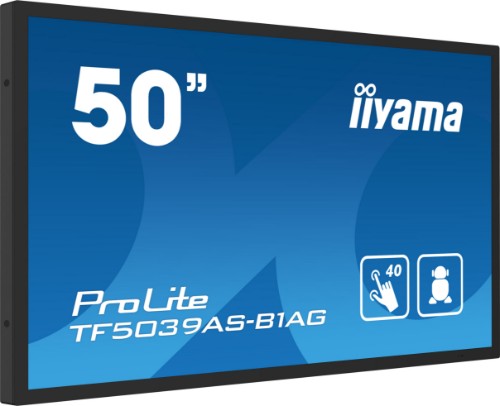

iiyama TF5039AS-B1AG computer monitor 125.7 cm (49.5") 3840 x 2160 pixels 4K Ultra HD LED Touchscreen Black

50" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing

Reasons To Buy

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Signal FailOver

FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Touch Through-Glass

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Retail Instalations

The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.

Huddle Spaces

Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

Description

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF5039AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before. For ease of integration, the TF5039AS-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ).

Specifications

Display
HDCP	Yes
Display brightness (typical)	500 cd/m²
Screen shape	Flat
Display number of colours	1.07 billion colours
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Display surface	Matt
HD type	4K Ultra HD
Display technology	LED
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.285 x 0.285 mm
Horizontal scan range	28 - 160 kHz
Viewable size, horizontal	109.6 cm
Viewable size, vertical	61.6 cm
Display resolution	3840 x 2160 pixels
Response time	9.5 ms
Display diagonal	125.7 cm (49.5")
Contrast ratio (typical)	5000:1
Surface hardness	7H
Touchscreen	Yes
Number of simultaneous touchpoints	40
Panel type	VA
Display diagonal (metric)	125.7 cm
Touchscreen technology	Projected capacitive system
Haze rate	25%
LED backlight	Yes
Display brightness	435 cd/m²
Positional accuracy	2.5 mm
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Audio
Built-in speaker(s)	Yes
RMS rated power	20 W
Performance
Built-in speaker(s)	Yes
RMS rated power	20 W
Mean time between failures (MTBF)	50000 h
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Operating system installed	Android 11
Operating system version	11
Palm rejection	Yes
Operating hours (hours/days)	24/7
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	13
On Screen Display (OSD) languages	Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Network
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	20 W
Power
Power cable length	1.8 m
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	137 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	68 kWh
Design
Certification	TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP65
Glass thickness	3 mm
Mean time between failures (MTBF)	50000 h
Ports & interfaces
DVI port	No
HDMI ports quantity	2
DisplayPorts quantity	1
HDCP	Yes
HDMI version	2.0
DisplayPort version	1.2
HDCP version	2.2
USB Touch port	Yes
RS-232C	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Technical details
USB connector type	USB Type-A, USB Type-B
Placement supported	Indoor
Mean time between failures (MTBF)	50000 h
Product colour	Black
User controls	picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset)
Front bezel colour	Black
Sustainability certificates	ErP
Compliance certificates	CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	435 cd/m²
Built-in processor	Yes
Power supply type	Internal
Active display area (W x H)	1095.8 x 616.4 mm
Multi-touch	Yes
Weight (with stand)	28.6 kg
Touch method	stylus, finger, glove (latex)
Surface hardness	7H
Touchscreen	Yes
Number of simultaneous touchpoints	40
RS-232C	Yes
Ergonomics
VESA mounting	Yes
Panel mounting interface	400 x 400 mm
On Screen Display (OSD)	Yes
Number of OSD languages	13
On Screen Display (OSD) languages	Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Width (with stand)	1149.4 mm
Depth (with stand)	64 mm
Height (with stand)	670 mm
Bezel width (side)	2.4 cm
Bezel width (top)	2.4 cm
Bezel width (bottom)	2.4 cm
Weight (with stand)	28.6 kg
Package width	1297 mm
Package depth	174 mm
Package height	798 mm
Package weight	35.9 kg
Width	1149.4 mm
Weight	28.6 kg
Height	670 mm
Depth	64 mm
Packaging data
Package width	1297 mm
Package depth	174 mm
Package height	798 mm
Package weight	35.9 kg
USB cable length	1.8 m
Power cable length	1.8 m
Remote control included	Yes
Quick start guide	Yes
Cables included	AC, USB, HDMI
HDMI cable length	1.8 m
Remote control batteries included	Yes
Package volume	35900 cm³
Packaging content
Power cable length	1.8 m
Remote control included	Yes
Quick start guide	Yes
Cables included	AC, USB, HDMI
HDMI cable length	1.8 m
Batteries included	Yes
Remote control batteries included	Yes
USB cable length	1.8 m
Sustainability
Sustainability certificates	ErP
Thin Client
Operating system installed	Android 11
Processor architecture	ARM Cortex-A73
Other features
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	435 cd/m²
Built-in processor	Yes
Active display area (W x H)	1095.8 x 616.4 mm
Multi-touch	Yes
USB ports quantity	2
USB connector type	USB Type-A, USB Type-B
Placement supported	Indoor
Mean time between failures (MTBF)	50000 h
Certification	TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Ethernet LAN (RJ-45) ports	1
User controls	picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset)
Touch method	stylus, finger, glove (latex)
Package volume	35900 cm³
International Protection (IP) code	IP65
Width	1149.4 mm
Weight	28.6 kg
Height	670 mm
Depth	64 mm
Positional accuracy	2.5 mm
Compliance certificates	CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Control panel	Power
Remote control included	Yes
Quick start guide	Yes
Surface hardness	7H
Energy efficiency scale	A to G
Power supply type	Internal
Power cable length	1.8 m
Ethernet LAN	Yes
Touchscreen	Yes
Number of simultaneous touchpoints	40
Front bezel colour	Black
Certificates
Certification	TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
