iiyama TW1625LASC-B3PNR meeting room display 39.6 cm (15.6") 1920 x 1080 pixels LED Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b Black Bluetooth

15.6” PCAP 10pt touchscreen PC with Android, Power over Ethernet Technology, NFC/RFID reader and a RGB LED bar around the screen

Reasons To Buy

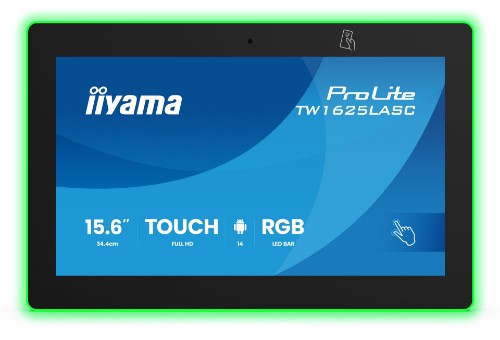

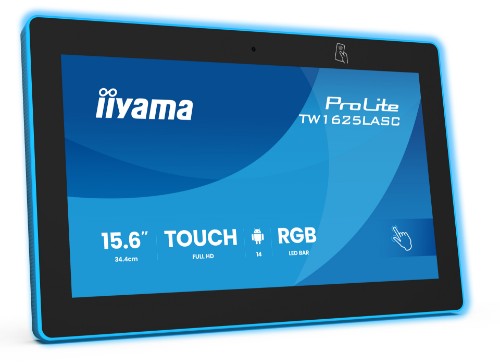

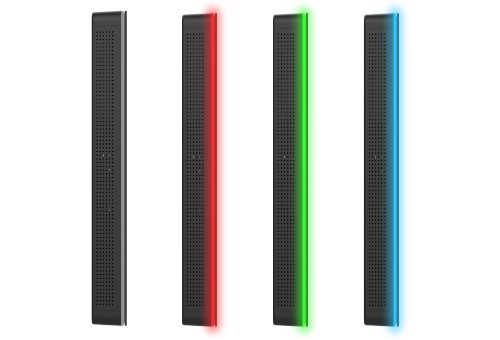

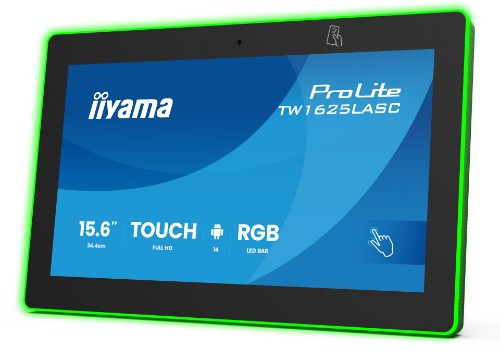

RGB Led bar

The RGB Led bar will clearly and intuitively indicate the room's availability status and can display a wide range of colors.

NFC & RFID reader

Thanks to the NFC/RFID reader, the touch panel PC alows to communicate wirelessly with enabled devices or tags within close proximity.

Connectivity

The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Build-in webcam, microphone and speakers

Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.

Description

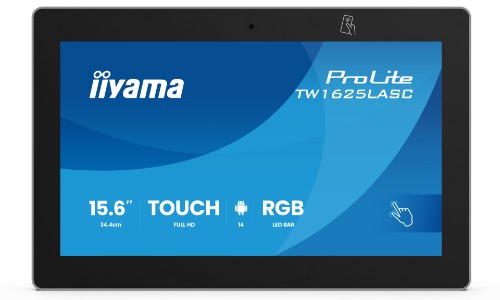

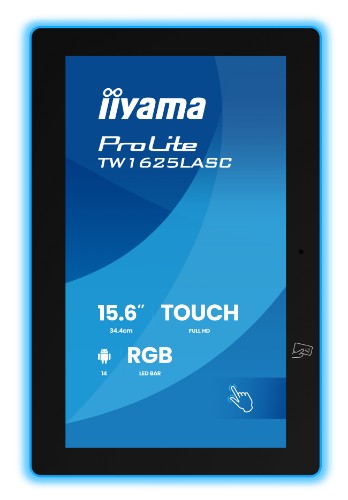

The ProLite TW1625LASC-B3PNR is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology with Optical Bonding ensures smooth and precise interaction with reduced glare, while protecting the display from humidity and moisture build-up. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. The integrated NFC/RFID reader enables contactless interaction with compatible tags or devices – ideal for quick check-in to rooms, employee authentication or triggering automated actions such as starting a presentation. The RGB LED bar integrated into the bezel shows the availability of rooms at a glance. With a built-in 5MP camera, microphone, and speakers, the TW1625LASC-B3PNR delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Specifications

Display
Display diagonal	39.6 cm (15.6")
Display technology	LED
Display resolution	1920 x 1080 pixels
Pixel pitch	0.1792 x 0.1792 mm
Response time	20 ms
LED backlight	Yes
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Display brightness	390 cd/m²
Contrast ratio (typical)	1000:1
Number of simultaneous touchpoints	10
Fingerprint resistant	Yes
Design
Housing colour	Black
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA

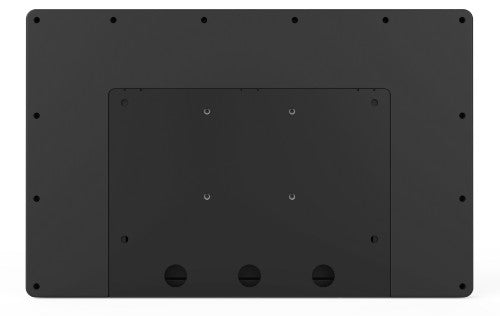

VESA mounting	Yes
Panel mounting interface	75 x 75 mm
USB port	Yes
Performance
Built-in processor	Yes
Processor manufacturer	ARM
Processor cores	8
Operating system installed	Android
Processor family	ARM Rockchip
Audio
Built-in speaker(s)	Yes
Number of speakers	2
Camera
Built-in camera	Yes
Network
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Bluetooth	Yes
Bluetooth version	5.3
Wi-Fi	Yes
Ethernet LAN	Yes
Ports & interfaces
USB port	Yes
Weight & dimensions
Width	397 mm
Depth	28.5 mm
Height	256 mm
Weight	2 kg
Packaging data
Package width	495 mm
Package depth	75 mm
Package height	305 mm
Package weight	3 kg
Packaging content
Quick start guide	Yes
Packaging content	AC adapter, interchangeable plugs (EU/UK)
Sustainability
Sustainability certificates	ErP
Technical details
Compliance certificates	CE, EAC, REACH, RoHS, UKCA, WEEE
Sustainability certificates	ErP
Features
Built-in speaker(s)	Yes
