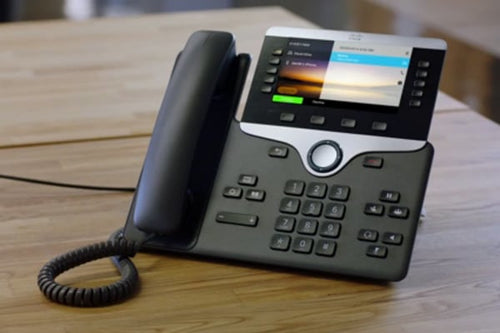

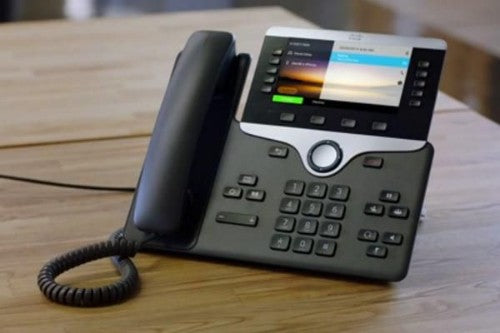

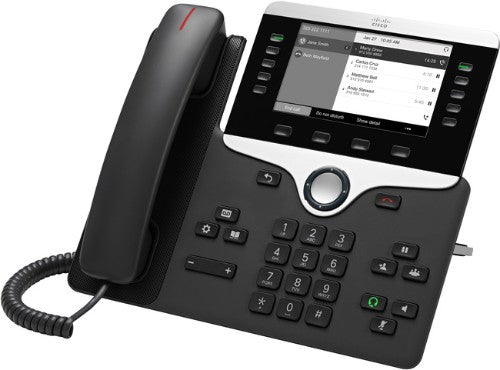

Cisco 8811 IP phone Black LCD

800 × 480, RJ-9, 10/100/1000BASE-T Ethernet, PoE, QoS, 1.17 kg, 3rd Party Call Ctrl

Description

The Cisco® IP Phone 8811 is a cost-effective, business-class collaboration endpoint that delivers high-fidelity, reliable, secure, and scalable voice communications for midsize to large enterprise businesses.

With the Cisco IP Phone 8811, you can increase personal productivity through an engaging user experience that is both powerful and easy-to-use. The IP Phone 8811 combines an attractive new ergonomic design with wideband audio for crystal clear voice communications, “always-on” reliability, encrypted voice communications to enhance security, and access to a comprehensive suite of unified communications features from Cisco communication servers.

The Cisco IP Phone 8811 supports five programmable line keys. You can configure keys to support either multiple directory numbers or calling features such as speed dial. You can also boost productivity by handling multiple calls for each directory number, using the multicall-per-line feature. Fixed-function keys give you one-touch access to applications, messaging, directory, as well as often-used calling features such as hold/resume, transfer, and conference. Backlit acoustic keys provide flexibility for audio path selection and switching.

Other key features of the phone follow:

- The Cisco IP Phone 8811 offers a 5-in. high-resolution (800 x 480) widescreen backlit grayscale display. Localized language support, including right-to-left on-screen text, meets the needs of global users.
- The phone supports a built-in Gigabit Ethernet switch for your PC connection.
- Support for Cisco EnergyWise™ technology makes the Cisco IP Phone 8811 more energy-efficient and ecofriendly; the phone is qualified by the Energy Star organization.
- An optional wall-mount kit is orderable separately for customers seeking this capability.

Specifications

Features
Handset type	Wired handset
Mounting	Desk/Wall
Device lock	Yes
Wall mountable	Yes
Product colour	Black
Backlight keypad	Yes
Technical details
Handset type	Wired handset
Mounting	Desk/Wall
Device lock	Yes
Speakerphone	No
Backlight keypad	Yes
Harmonized System (HS) code	85171800
Security
Security algorithms	EAP-FAST, EAP-TLS, HTTPS, SRTP, SSH, SSL/TLS
Design
Product type	IP Phone
Handset type	Wired handset
Mounting	Desk/Wall
Device lock	Yes
Wall mountable	Yes
Product colour	Black
Backlight keypad	Yes
Phone features
Speed dialling	Yes
Redialing	Yes
Caller ID	Yes
Call waiting	Yes
Call park	Yes
Call forwarding	Yes
Display
Touchscreen	No
Display resolution	800 x 480 pixels
Display	LCD
Audio
Ringer type	Polyphonic
Voice codecs	G.711a, G.722, G.729A
Speakerphone	No
Microphone mute	Yes
Network
Networking standards	IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Wi-Fi	No
Supported network protocols	SIP, SPD, UDP, GARP, DNS, TFTP, HTTPS, VLAN, RTP, RTCP, PPDP,
Security algorithms	EAP-FAST, EAP-TLS, HTTPS, SRTP, SSH, SSL/TLS
Quality of Service (QoS) support	Yes
Ethernet LAN	Yes
DHCP client	Yes
Bluetooth	No
Colour
Product colour	Black
Microphone
Microphone mute	Yes
Ergonomics
Wall mountable	Yes
Ports & interfaces
RJ-9 ports quantity	1
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Power
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	257.3 mm
Depth	40 mm
Height	229.1 mm
Weight	1.17 kg
Packaging content
Number of handles included	1 pc(s)
Logistics data
Harmonized System (HS) code	85171800
