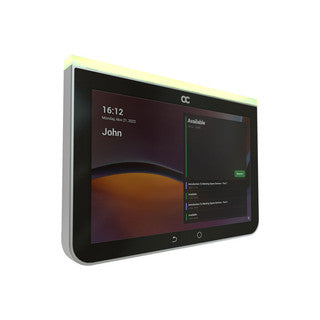

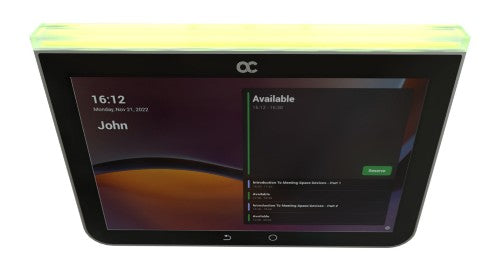

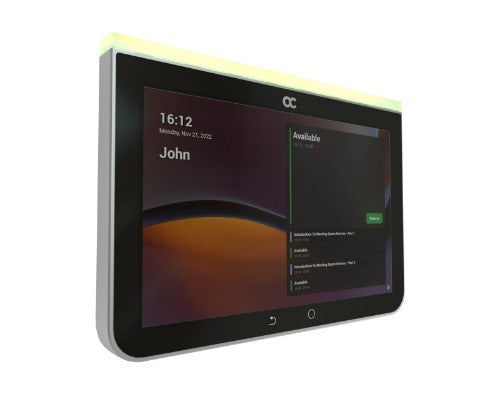

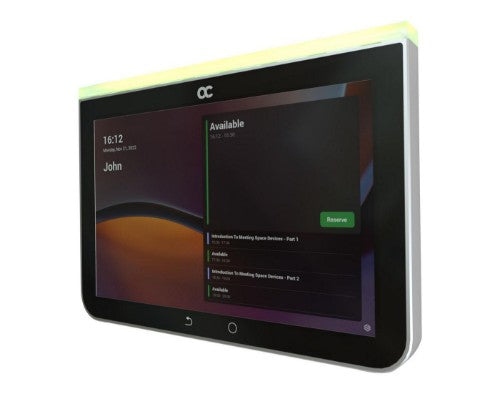

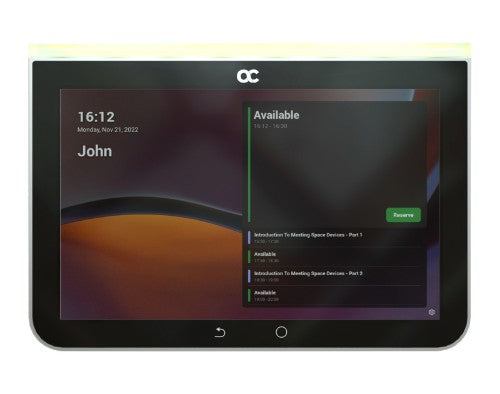

AudioCodes RX PANEL Touch Scheduler for Microsoft T Video conferencing service management system Black

RX Panel - Meeting Room Controller for Microsoft Teams

Key Features

• Utilizes plug-and-play simplicity to boost the meeting room experience with a dedicated panel showing the meeting details and room availability
• Easily reserve the room for ad hoc meetings
• Unique, clearly visible status LED indicating meeting space availability
• Glass and wall mountable for a professional and spotless appearance
• Dedicated special touch buttons (Home and Back)
• High-resolution 8-inch touchscreen
• Runs Android 12 for improved security
• Can be managed by AudioCodes Device Manager

Reasons To Buy

Microsoft Teams Meeting Room Scheduler

The AudioCodes RX-PANEL Meeting Room Scheduler is
a purpose-built Microsoft Teams Panel with an intuitive
touchscreen display. Neatly installed right at the
entrance to the meeting room, the RX-PANEL’s brightly coloured status LED enables
users to quickly see the meeting room’s availability from a distance. Users can also
view the meeting details on its sleek and clear LCD screen, and reserve a meeting
room on the spot.

Description

The AudioCodes RX-PANEL Meeting Room Scheduler is a purpose-built Microsoft Teams Panel with an intuitive touchscreen display. Neatly installed right at the entrance to the meeting room, the RX-PANEL’s brightly coloured status LED enables users to quickly see the meeting room’s availability from a distance. Users can also view the meeting details on its sleek and clear LCD screen, and reserve a meeting room on the spot.

The RX-PANEL Meeting Room Scheduler can be installed at the entrance to any meeting room – from large conference rooms to smaller meeting spaces and huddle rooms – helping employees find the right location for their next session simply and rapidly. It can be easily and neatly mounted on walls and glass making it suitable for any office design.

Specifications

Features
Product type	Video conferencing service management system
Product colour	Black
Placement supported	Wall
On/off switch	No
Wall mountable	Yes
Housing material	Plastic
Bluetooth	Yes
Bluetooth version	5.0
Reset function	Yes
LED indicators	Status
Networking cable category	5e
Rubber feet	No
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Proximity sensor	Yes
Wi-Fi	Yes
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Display
Display diagonal	20.3 cm (8")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
Power
Power source type	DC, PoE
DC input voltage	12 V
Weight & dimensions
Width	24.4 mm
Depth	223.4 mm
Height	155.9 mm
Weight	800 g
