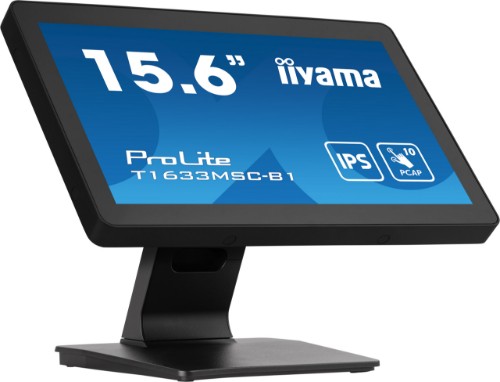

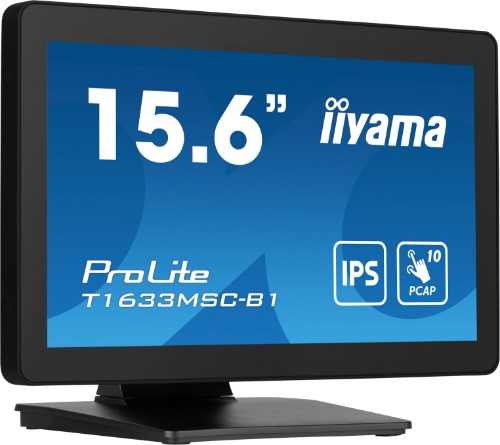

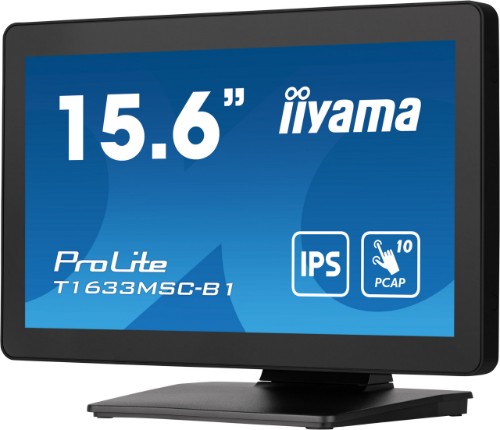

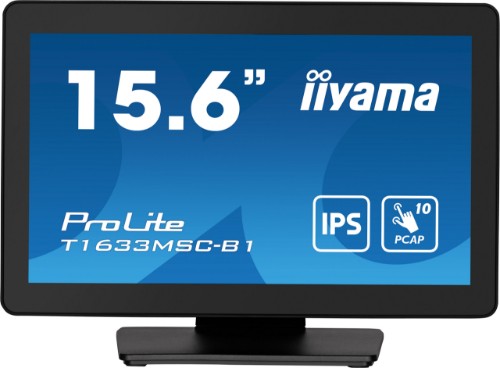

iiyama ProLite T1633MSC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LCD Touchscreen Black

15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology

Key Features

• projective capacitive
• HDMI x1
• DisplayPort x1

Reasons To Buy

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Scratch resistance

Scratch resistance is a critical requirement for touch solutions deployed in commercial, educational, and industrial environments. A protective glass overlay covering the screen provides enhanced durability, ensuring reliable touch performance over time. The touch functionality remains fully operational and unaffected.

IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

LED-backlit

A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO 2 emission into the environment making this LCD a true ECO-Friendly product.

Description

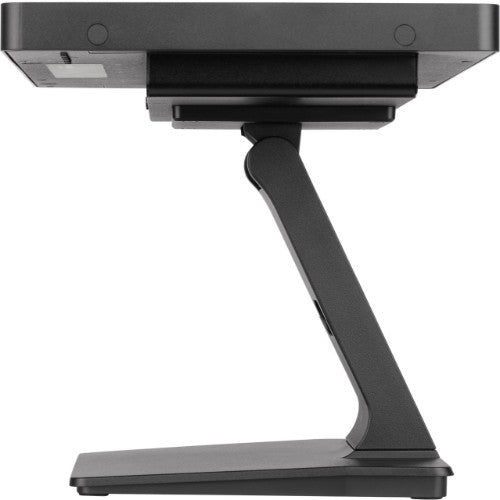

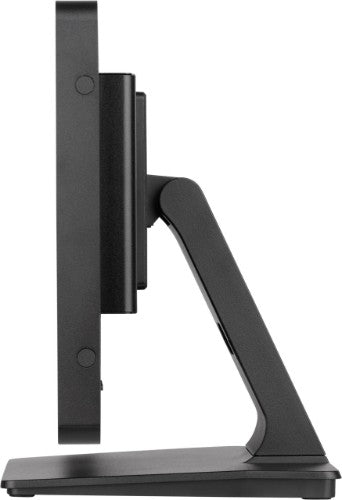

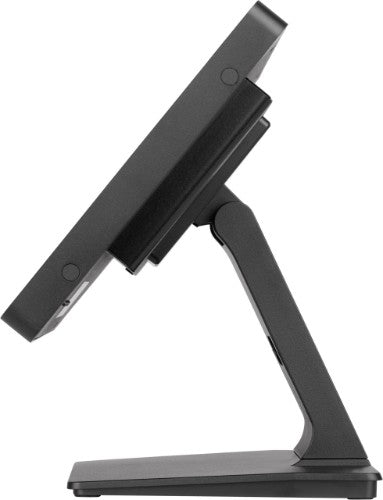

The ProLite T1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for retail applications.

Specifications

Display
HDCP	Yes
Display brightness (typical)	450 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
HD type	Full HD
Display technology	LCD
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.179 x 0.179 mm
Horizontal scan range	30 - 68 kHz
Viewable size, horizontal	34.4 cm
Viewable size, vertical	19.4 cm
Display resolution	1920 x 1080 pixels
Response time	5 ms
Display diagonal	39.6 cm (15.6")
Contrast ratio (typical)	1000:1
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	IPS
Display diagonal (metric)	39.5 cm
Touchscreen technology	Projected capacitive system
Display brightness	385 cd/m²
Response time measurement type	GTG (Gray to Gray)
Audio
Built-in speaker(s)	Yes
RMS rated power	4 W
Performance
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in camera	No
AMD FreeSync	No
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
NVIDIA G-SYNC	No
Low Blue Light technology	Yes
Palm rejection	Yes
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	12
On Screen Display (OSD) languages	Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in camera	No
Design
Market positioning	Home
Certification	CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP54
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	Yes
USB hub version	2.0
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
HDMI	Yes
USB Touch port	Yes
Number of downstream ports	2
Technical details
Cable lock slot	Yes
HDMI	Yes
Product colour	Black
User controls	Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information)
Front bezel colour	Black
Sustainability certificates	ErP
Compliance certificates	CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Packaging content	AC adapter
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	385 cd/m²
Power supply type	External
Active display area (W x H)	344.2 x 193.6 mm
Weight (with stand)	3.4 kg
Touch method	stylus, finger, glove (latex)
Touchscreen	Yes
Number of simultaneous touchpoints	10
Ergonomics

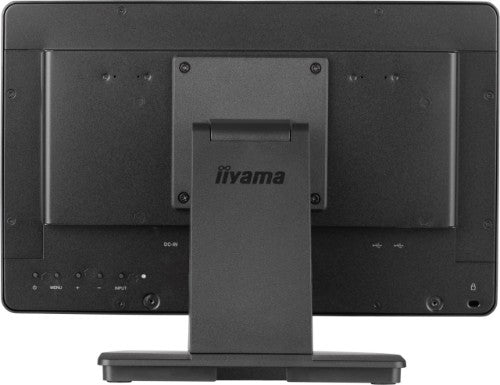

VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	90 - 5°
On Screen Display (OSD)	Yes
Number of OSD languages	12
On Screen Display (OSD) languages	Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Height adjustment	No
Cable lock slot type	Kensington
Cable management	Yes
Tilt adjustment	Yes
Power
Power supply type	External
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	8 W
Power consumption (typical)	12 W
Power consumption (off)	0.5 W
Energy efficiency scale	A to G
AC adapter output voltage	12 V
Energy efficiency class (SDR)	C
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	7.7 kWh
Weight & dimensions
Width (with stand)	389 mm
Depth (with stand)	200 mm
Height (with stand)	284 mm
Weight (with stand)	3.4 kg
Weight (without stand)	5.3 kg
Package width	475 mm
Package depth	169 mm
Package height	343 mm
Package weight	5.3 kg
Width	389 mm
Weight	3.4 kg
Height	284 mm
Depth	200 mm
Packaging data
Package width	475 mm
Package depth	169 mm
Package height	343 mm
Package weight	5.3 kg
Package type	Box
AC adapter included	Yes
Quick start guide	Yes
Cables included	AC, USB, HDMI
Power adapter included	Yes
Packaging content
Quick start guide	Yes
Cables included	AC, USB, HDMI
Power adapter included	Yes
AC adapter included	Yes
Sustainability
Sustainability certificates	ErP
Other features
Packaging content	AC adapter
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	385 cd/m²
Active display area (W x H)	344.2 x 193.6 mm
USB ports quantity	2
AC adapter included	Yes
Certification	CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
User controls	Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information)
Touch method	stylus, finger, glove (latex)
International Protection (IP) code	IP54
Width	389 mm
Weight	3.4 kg
Height	284 mm
Depth	200 mm
Compliance certificates	CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Control panel	Power, Menu, Volume +, Volume -, Input
Quick start guide	Yes
HDMI	Yes
Energy efficiency scale	A to G
Power supply type	External
Touchscreen	Yes
Number of simultaneous touchpoints	10
Package type	Box
Front bezel colour	Black
Certificates
Certification	CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
