Axis | SKU:
5801-692

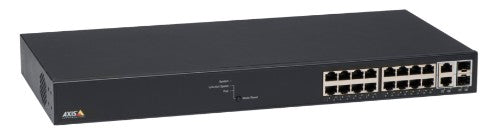

Axis 5801-692 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
€749.14
Unit price
/
Unavailable
Shipping calculated at checkout.
Axis 5801-692 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Throughput: 26.8 Mpps, Switching capacity: 36 Gbps, MAC table: 8 K, Jumbo frames: 9216 Bytes, 442 x 211 x 44 mm, 3 kg, Black
Key Features
- 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 240 W; Gigabit switch; Intuitive graphic topology for system overview
Description
AXIS T8516 PoE+ Network Switch is an easy to install 16-port managed Gigabit switch - a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. AXIS T8516 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 16 PoE cameras.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Virtual LAN features | |
| VLAN support | Yes |
| Technical details | |
| Product colour | Black |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| Throughput | 26.8 Mpps |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Security algorithms | HTTPS, SNMP, SSH |
| Access Control List (ACL) | Yes |
| Design | |
| Reset button | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Speed, System |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Activity, Link, PoE, Speed, System |
| Power | |
| Power consumption (max) | 285 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output power | 240 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 211 mm |
| Height | 44 mm |
| Weight | 3 kg |
| Packaging data | |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| AC adapter included | Yes |
| Rubber feet | Yes |
