Axis | SKU:
01535-001
Axis 01535-001 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Aluminium
€8,478.39
Unit price
/
Unavailable
Shipping calculated at checkout.
Axis 01535-001 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Aluminium is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
4x30W PoE, 289x289x227mm, 16kg, Aluminium
Key Features
- ATEX, IECEx Ex d IIC/IIIC; Extends the camera’s temperature range; Four 30 W PoE-ports; Resistant to corrosion; Single-mode or multi-mode fiber variants
Description

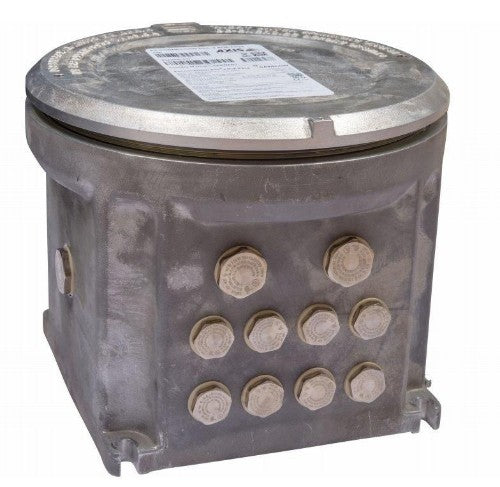

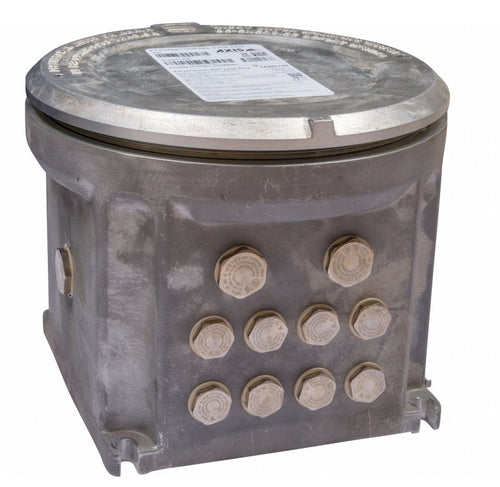

Ex Connection Rail 4-Port PoE is a high performance PoE switch and 24 V DC power supply for hazardous areas. It is designed to connect explosion-protected network cameras over long distances. The network connection can be realized via optical fiber or copper-bound Ethernet, and is available for single-mode or multi-mode fiber. The power supply provides additional power to the cameras heater to extend the temperature range. The Ex d-rated enclosure is made from seawater-resistant copper-free aluminum and is ready for wall mounting.Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Technical details | |
| Product colour | Aluminium |
| Housing material | Aluminium |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX |
| Networking standards | IEEE 802.3at |
| 10G support | No |
| Certificates | |
| Certification | ATEX, IECEx, EAC |
| Design | |
| Product colour | Aluminium |
| Housing material | Aluminium |
| Certification | ATEX, IECEx, EAC |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Output voltage | 24 V |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -60 - 50 °C |
| Operating temperature (T-T) | -60 - 50 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 289 mm |
| Depth | 289 mm |
| Height | 227 mm |
| Weight | 16 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
