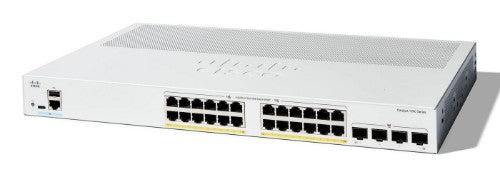

Cisco Catalyst 1200-24P-4G Smart Switch, 24 Port GE, PoE, 4x1GE SFP, Limited Lifetime Protection (C1200-24P-4G)

Catalyst 1200-24P-4G Smart Switch, 24 Port GE, PoE, 4x1GE SFP, Limited Lifetime Protection (C1200-24P-4G)

Key Features

• SWITCH PORTS: 24 ports 10/100/1000 + 4x 1GE SFP (total PoE power budget: 195W, PoE, PoE+)
• SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
• SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
• ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
• PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

Description

The Cisco Catalyst 1200-24P-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

Specifications

Management features
Reset button	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Switch layer	L2
Configuring Location Settings (CLI)	Yes
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	28
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/USB Type-C
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	255
Link aggregation	Yes
Broadcast storm control	Yes
10G support	No
GARP VLAN Registration Protocol (GVRP)	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	1.5 MB
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Forwarding rate	41.66 Mpps
Number of VLANs	255
Security
Loop protection	Yes
Access Control List (ACL) rules	512
Security algorithms	802.1x RADIUS
Queue scheduling algorithms	Weighted Round Robin (WRR)
DoS attack prevention	Yes
Multicast features
Multicast support	Yes
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
Design
Reset button	Yes
Form factor	1U
Product colour	White
LED indicators	Yes
Rack mounting	Yes
Country of origin	China
Certification	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Performance
Processor frequency	1.4 MHz
Memory type	DDR4-SDRAM
Mean time between failures (MTBF)	698220 h
Internal memory	1000 MB
Flash memory	512 MB
Firmware upgradeable	Yes
Built-in processor	Yes
Packet buffer memory	1.5 MB
Power
Power plug type	Type C
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	10.65 W
Power source	AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	195 W
Power over Ethernet (PoE)	Yes
Other features
Packaging content	Switch, power cable, USB Type C cable and mounting hardware
Country of origin	China
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Number of VLANs	255
Weight & dimensions
Width	298.7 mm
Depth	444.5 mm
Height	43.9 mm
Weight	3.53 kg
Packaging data
Package width	430 mm
Package depth	575.1 mm
Package height	105.9 mm
Package weight	5.82 kg
Technical details
Form factor	1U
Product colour	White
Processor frequency	1.4 MHz
Mean time between failures (MTBF)	698220 h
Firmware upgradeable	Yes
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	1.5 MB
Memory type	DDR4-SDRAM
Internal memory	1000 MB
Flash memory	512 MB
Certificates
Certification	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Indication
LED indicators	Yes
Packaging content
Packaging content	Switch, power cable, USB Type C cable and mounting hardware
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Logistics data
Country of origin	China
