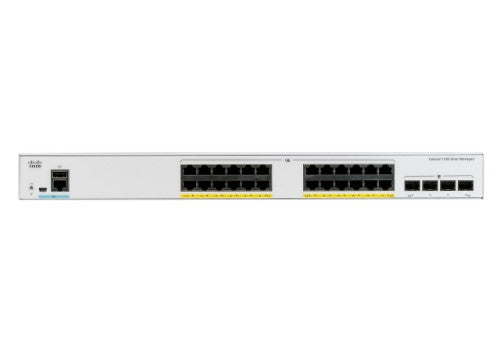

Cisco Catalyst 1000-24T-4G-L Network Switch, 24 Gigabit Ethernet (GbE) Ports, four 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-24T-4G-L)

Catalyst 1000-24T-4G-L Network Switch, 24 Gigabit Ethernet (GbE) Ports, four 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-24T-4G-L)

Key Features

• HARDWARE CONFIGURATION: 24 10/100/1000 Gigabit Ethernet (GbE) Data ports, 4 SFP uplink ports
• MANAGEMENT: Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool
• SECURITY: Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single 'Auto-Secure' command along with 802.1x support for all connected devices
• Enterprise Class Hardware: Tamper-proof switch designed with the best of Cisco's trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product
• PEACE OF MIND: Enhanced limited lifetime warranty

Description

The Cisco Catalyst 1000-24T-4G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.

Specifications

Management features
Multicast support	Yes
Traffic classification	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
MIB support	Yes
Switch layer	L2
Configuring Location Settings (CLI)	Yes
Network
IGMP snooping	Yes
IPv6 multicast entries	1024
IPv4 multicast entries	1024
IGMP entries	1024
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Number of VLANs	4094
Link aggregation	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
Number of VLANs	4094
Data transmission
Number of VLANs	4094
Jumbo frames	10240
Number of static routes	16
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	41.67 Mpps
Technical details
Product colour	Grey
Processor frequency	800 MHz
Mean time between failures (MTBF)	2026793 h
Built-in processor	Yes
Products per shipping (inner) case	1 pc(s)
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity	1
Console port	RJ-45/Mini-USB
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	Web-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
IGMP entries	1024
DHCP features	DHCP snooping
Multicast features
Multicast support	Yes
IPv6 multicast entries	1024
IPv4 multicast entries	1024
Certificates
Certification	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24 Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU Common Language Equipment Identifier (CLEI) code
Memory
Memory type	DRAM
Internal memory	512 MB
Flash memory	256 MB
Design
Country of origin	China
Product colour	Grey
LED indicators	Yes
Certification	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24 Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU Common Language Equipment Identifier (CLEI) code
Market segment	Business
Performance
Processor frequency	800 MHz
Memory type	DRAM
Mean time between failures (MTBF)	2026793 h
Internal memory	512 MB
Flash memory	256 MB
Built-in processor	Yes
Processor model	ARM7
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Packaging content
Packaging content	C1000-24T-4G-L Switch, Accessory Kit, 1 printed document
Power
Power plug type	Type C
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4500 m
Weight & dimensions
Width	444.5 mm
Depth	240 mm
Height	44 mm
Weight	2.63 kg
Packaging data
Package width	336.6 mm
Package depth	549.4 mm
Package height	147.6 mm
Package weight	4.41 kg
Logistics data
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
Other features
Packaging content	C1000-24T-4G-L Switch, Accessory Kit, 1 printed document
Ethernet LAN data rates	10,100,1000 Mbit/s
Country of origin	China
