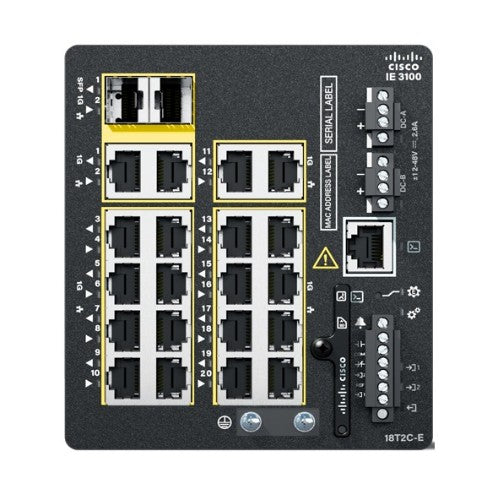

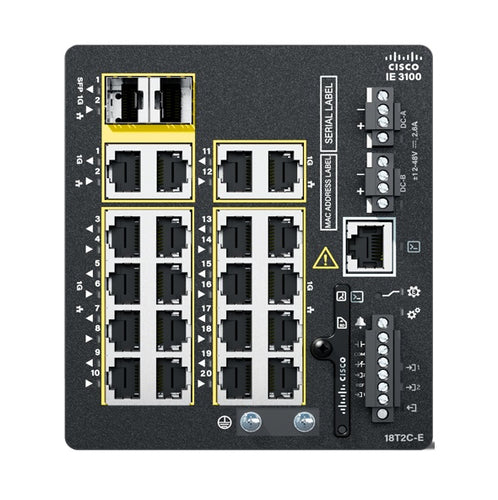

Cisco Catalyst IE3100 Managed L2/L3 Gigabit Ethernet (10/100/1000) Black

Catalyst IE3100 w/18 Ports GE Copper and 2 GE Combo uplinks, NE

Key Features

• ​​18 GE downlink and 2 GE dual-media uplink ports​
• ​​Industrial protocols, security, and redundancy features​
• Network Essentials

Description

Fast, secure network connectivity, even in tight spaces​

Extend fast, secure, and fully managed connectivity to devices in harsh operating conditions and space-constrained environments.

Easily place in confined spaces. Integrate within connected industrial solutions that are custom-built and turnkey.​

Incorporate within turnkey industrial solutions​
Deliver fully managed, secure, and reliable custom-built machinery by connecting individual devices within your industrial solution.

Join the circular economy
Invest in products that are designed, built, and delivered with sustainability in mind. The Catalyst IE3100 Rugged Series eliminates the use of paint with anodization and uses 100% recyclable packaging.

​​Bring the best of IT networking into your operations
Gain enterprise-grade networking capabilities with the modern Cisco IOS-XE operating software, management by Cisco DNA Center, and fast recovery for resilient operations.

​​Protect your operations with best-in-class security​
​​Reduce risk and defend your operations against cyberthreats with device authentication, access control, and network segmentation.​

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L2/L3
Network
IGMP snooping	Yes
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Number of VLANs	256
Link aggregation	Yes
10G support	No
IPv4 routes	2000
Virtual LAN features
VLAN support	Yes
Number of VLANs	256
Data transmission
Number of multicast groups filtered	512
Number of VLANs	256
MAC address table	8000 entries
Number of queues	8
Performance
Stackable	No
Memory type	DRAM
Mean time between failures (MTBF)	642050 h
Internal memory	4000 MB
Power
Power connector	DC-in jack
Power supply included	Yes
Power consumption (typical)	36.7 W
Input voltage	12 - 48 V
Input current	4.2 - 1.3 A
Power source	DC
Technical details
Product colour	Black
Stackable	No
Mean time between failures (MTBF)	642050 h
Rack mounting	Yes
Sustainability compliance	Yes
Warranty period	5 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), ICES, KCC
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	2
Compatible memory cards	SD
Console port	RS-232/Micro-USB
Power connector	DC-in jack
Security
IGMP snooping	Yes
DHCP features	DHCP server, DHCP snooping
Multicast features
Number of multicast groups filtered	512
Multicast support	Yes
Memory
Memory type	DRAM
Internal memory	4000 MB
Design
DIN rail mounting	Yes
Product colour	Black
Stackable	No
Rack mounting	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 4572 m
Non-operating altitude	0 - 12192 m
Weight & dimensions
Width	109.2 mm
Depth	129 mm
Height	127 mm
Weight	1.27 kg
Sustainability
Sustainability compliance	Yes
Other features
Input voltage	12 - 48 V
