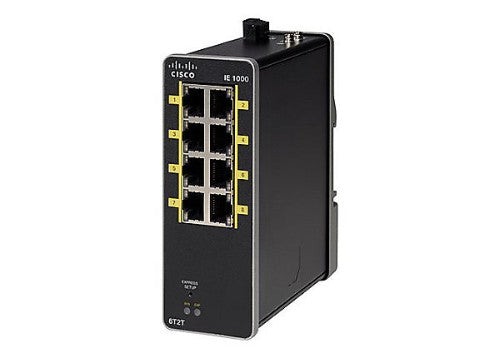

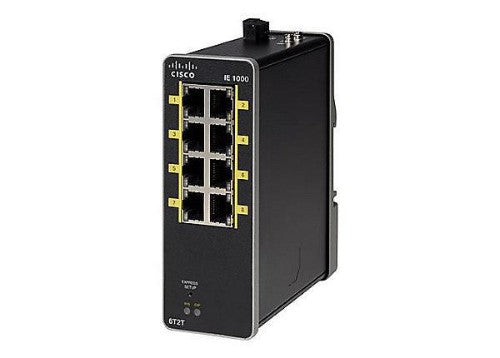

Cisco IE-1000-6T2T-LM network switch Managed Fast Ethernet (10/100) Black

8x RJ-45, 12-24 V, 45.7x115x127 mm, 570 g

Description

The Cisco® Industrial Ethernet (IE) 1000 Series Switches are compact rugged switches aimed to operational technology (OT) users with limited IT network knowledge. The IE 1000 Series Switches provide an easy transformation from the legacy factory to digital solution. For machine builders and machine-to-machine (M2M) solutions is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces, and is Power over Ethernet (PoE) capable with and zero IT management.

The IE 1000 is ideal for industrial Ethernet applications where small and easy-to-be-managed hardened products are required, including factory automation, intelligent transportation systems, city-surveillance programs, building automations etc.

The Cisco IE 1000 Series Switches complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3000, IE 4000 and IE 5000 Series managed Switches.

The IE 1000 can be easily installed on your network. Through a user-friendly web device manager, the IE 1000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced and secure multiservices over industrial networks.

Features and Benefits

The Cisco IE 1000 Series Switches are designed for low cost, low ports, and small sizes. They offer:

- Scalability: Four models are available supporting 5, 6, 8 and 10 Ethernet ports, with Fast Ethernet (FE) and Gigabit Ethernet (GE), copper and fiber uplinks options
- Easy integration: Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP)IP addressing and simple web GUI-based management
- Fast startup time: Starts 30 seconds from cold boot
- Manageability: Web GUI interface, and diagnostics and analysis options through Simple Network Management Protocol (SNMP) and syslog
- Security: secure access; port-security
- Minimize data load: VLAN aware, Internet Group Management Protocol (IGMP) and DHCP snooping to filter unwanted data
- Lightly-managed: Spanning-tree protocol (STP), Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol aware
- Gigabit uplink: Two fiber-optic SFP based. uplink for up to 50 miles (80 kilometers) links
- Industrial PoE: Up to eight PoE (IEEE 802.af) and PoE+ (802.3at) supported on selected models
- Redundant voltage feeds, alarm relays support and DIN rail mount
- Industrial environmental compliance and certifications

Specifications

Network
IGMP snooping	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
Technical details
Product colour	Black
Mean time between failures (MTBF)	374052 h
Management features
Switch type	Managed
Web-based management	Yes
System event log	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Security
BPDU filtering/protection	Yes
Static port security	Yes
Security algorithms	SNMP, SSH
IGMP snooping	Yes
DHCP features	DHCP server, DHCP snooping
Certificates
Safety	UL/CSA 60950-1, EN 60950-1, IEC 60950-1, NOM - NOM-019-SCF1, UL/CSA/IEC/EN 61010-2-201, CE
Electromagnetic compatibility	FCC 47 CFR 15 A, EN 55022/CISPR 22 A, EN 55016-1-1, -1-4, -2-3 AVCCI A, RoHS, AS/NZS CISPR 22 A, AS/NZS CISPR 24, CISPR11 Class A, CISPR22 A, ICES 003 A, KCC, CE, RCM, EAC, Anatel, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-29
Memory
Memory type	DDR2-SDRAM
Internal memory	128 MB
Flash memory	160 MB
Design
International Protection (IP) code	IP30
DIN rail mounting	Yes
Safety	UL/CSA 60950-1, EN 60950-1, IEC 60950-1, NOM - NOM-019-SCF1, UL/CSA/IEC/EN 61010-2-201, CE
Product colour	Black
Electromagnetic compatibility	FCC 47 CFR 15 A, EN 55022/CISPR 22 A, EN 55016-1-1, -1-4, -2-3 AVCCI A, RoHS, AS/NZS CISPR 22 A, AS/NZS CISPR 24, CISPR11 Class A, CISPR22 A, ICES 003 A, KCC, CE, RCM, EAC, Anatel, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-29
Performance
Memory type	DDR2-SDRAM
Mean time between failures (MTBF)	374052 h
Internal memory	128 MB
Flash memory	160 MB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	205.2 W
Power consumption (typical)	5.3 W
DC input voltage	12 - 24 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	45.7 mm
Depth	115 mm
Height	127 mm
Weight	570 g
Logistics data
Harmonized System (HS) code	85176990
