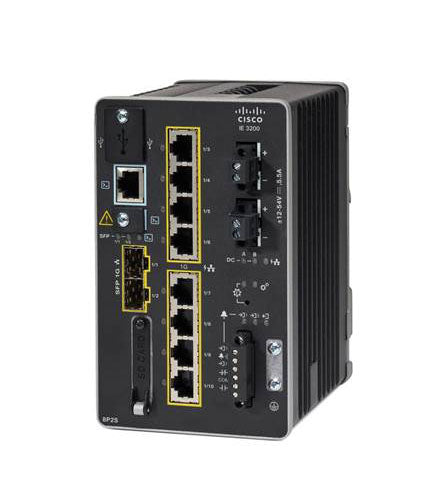

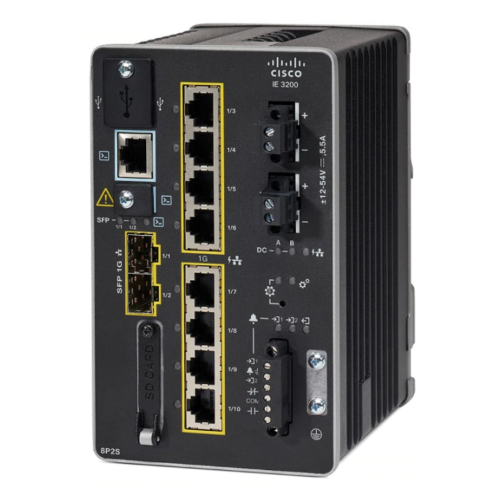

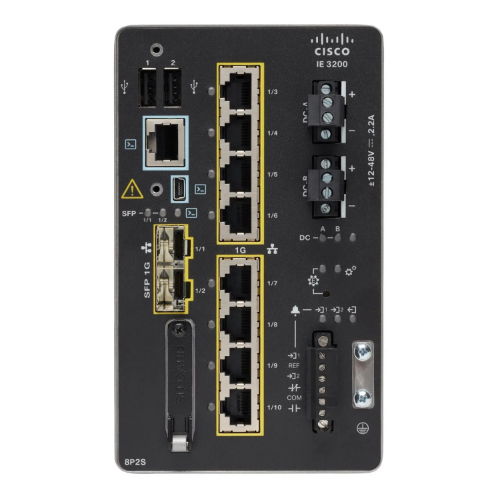

Cisco IE-3200-8P2S-E network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black

IE-3200-8P2S-E, 10x RJ-45, 2x SFP, 8x PoE/PoE+, SD, RS-232, USB Mini B, 152.4x91.44x134.62 mm

Key Features

• Built for harsh environments and temperature ranges (-40°C to +75°C)
• Fanless, convection-cooled with no moving parts for extended durability
• Hardened for vibration, shock and surge, and electrical noise immunity
• Complies with multi-industry specifications for automation, ITS, and substation environments
• Improves uptime, performance, and safety of industrial systems and equipment
• Covers a wide range of Power over Ethernet (PoE) application requirements
• Alarm I/O for monitoring and signaling to external equipment
• Supports up to 8 PoE or PoE+ ports
• Controls costs by limiting wiring, distribution panels, and circuit breakers
• Reduces equipment needs, thus requiring less space and reducing heat dissipation
• Enables ready-to-use PoE devices, such as IP phones, cameras, and wireless access points

Description

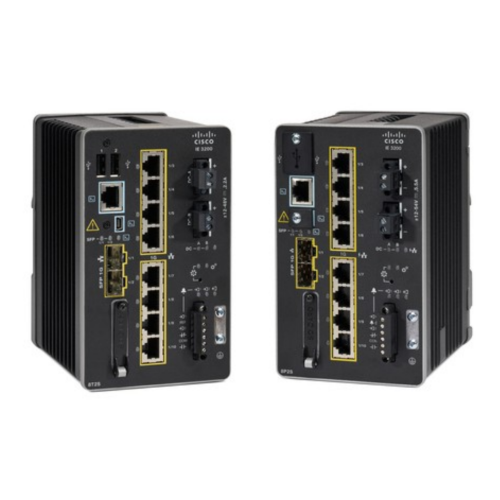

The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.

These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3200 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI.

The IE3200 Series provides an option for up to eight ports of Power over Ethernet Plus (PoE+), with a product SKU that is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.

Specifications

Management features
Multicast support	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Network
IGMP snooping	Yes
IGMP entries	1000
Networking standards	IEEE 802.1x, IEEE 802.3
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Number of VLANs	256
Broadcast storm control	Yes
10G support	No
Virtual LAN features	VLAN Identifier ( VLAN ID)
Virtual LAN features
VLAN support	Yes
Number of VLANs	256
Virtual LAN features	VLAN Identifier ( VLAN ID)
Data transmission
Number of VLANs	256
MAC address table	8000 entries
Number of queues	8
Technical details
Product colour	Black
Mean time between failures (MTBF)	613125 h
Dying Gasp	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Compatible memory cards	SD
Console port	RJ-45
Security
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication
Access Control List (ACL) rules	1500
Security algorithms	SNMP, SNMPv3, SSH
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
IGMP entries	1000
DHCP features	DHCP server, DHCP snooping
Multicast features
Multicast support	Yes
Certificates
Electromagnetic compatibility	FCC 47 CFR 15 B A, EN 55032/CISPR 32 A, VCCI A, AS/NZS CISPR 32 A, CISPR 11 A, ICES 003 A, CNS 13438 A, KN 32 A, EN 300 386
Certification	UL/CSA 60950-1,CB to IEC 60950-1, UL/CSA 62368-1, CB to IEC 62368-1, UL/CSA 61010-2-201, CB IEC/EN 61010-2-201, UL121201(l, Div 2, A-D), SA 213 (l, Div 2, A-D), UL/CSA 60079-0, -15 (l, 2, Gc/IIC), IEC 60079-0, -15 IECEx (l, 2, Gc/IIC), EN 60079-0, -15 ATEX (l, 2, Gc/IIC), EN 61000-6-2 EN 61000-6-4 EN 61000-6-1 EN 61326-1 IEEE 1613 EN/IEC 61850-3 EN50121-4 ODVA
Memory
Memory type	DRAM
Internal memory	2048 MB
Flash memory	1500 MB
Design
International Protection (IP) code	IP30
DIN rail mounting	Yes
Product colour	Black
Electromagnetic compatibility	FCC 47 CFR 15 B A, EN 55032/CISPR 32 A, VCCI A, AS/NZS CISPR 32 A, CISPR 11 A, ICES 003 A, CNS 13438 A, KN 32 A, EN 300 386
Certification	UL/CSA 60950-1,CB to IEC 60950-1, UL/CSA 62368-1, CB to IEC 62368-1, UL/CSA 61010-2-201, CB IEC/EN 61010-2-201, UL121201(l, Div 2, A-D), SA 213 (l, Div 2, A-D), UL/CSA 60079-0, -15 (l, 2, Gc/IIC), IEC 60079-0, -15 IECEx (l, 2, Gc/IIC), EN 60079-0, -15 ATEX (l, 2, Gc/IIC), EN 61000-6-2 EN 61000-6-4 EN 61000-6-1 EN 61326-1 IEEE 1613 EN/IEC 61850-3 EN50121-4 ODVA
Performance
Memory type	DRAM
Mean time between failures (MTBF)	613125 h
Internal memory	2048 MB
Flash memory	1500 MB
Dying Gasp	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (typical)	35 W
Redundant power supply (RPS) support	Yes
Input current	5.5 A
DC input voltage	9.6 - 60 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	91.4 mm
Depth	134.6 mm
Height	152.4 mm
Weight	1.7 kg
Logistics data
Harmonized System (HS) code	85176990
