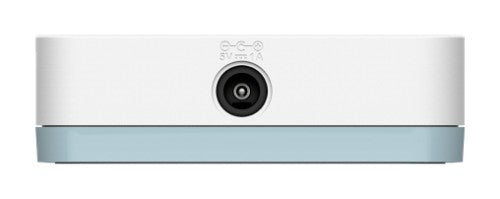

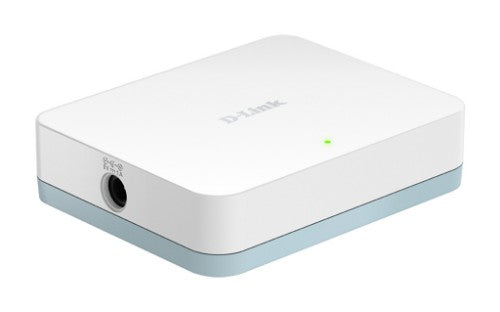

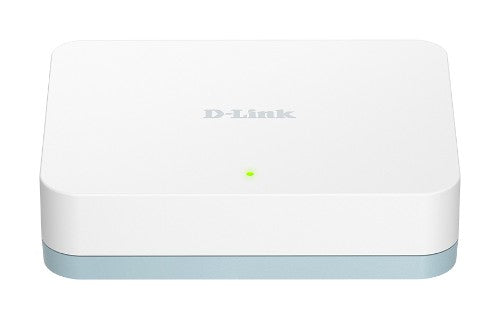

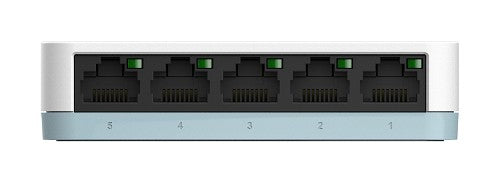

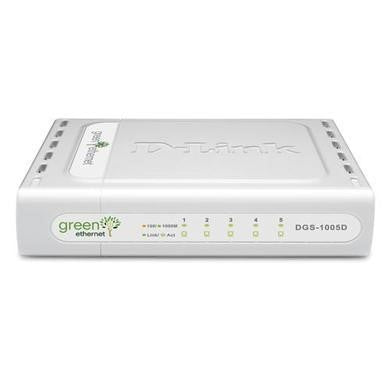

D-Link 5-Port Gigabit Unmanaged Desktop Switch

DGS-1005D - Gigabit unmanaged Layer 2 Switch with (5) 10/100/1000BASE-T Ports

Key Features

• Connectivity
• Five Gigabit Ethernet LAN ports for high-speed wired connections
• Cable Diagnostics Function notifies users of cable conditions through product LEDs Green Ethernet
• Features
• Reduces power to a port when no link is detected
• Adjust power to a port by detecting the length of the connected Ethernet cable

Description

The DGS-1005D 5-Port Gigabit Desktop Switch is part of D-Link’s series of SOHO devices that allows you to easily expand and upgrade your network. D-Link’s Green Technology provides energy savings, reduces heat, and a longer product life without sacrificing performance or functionality. DGS-1005D provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (EnergyStar Level V qualified), minimised use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Fast and Reliable Networking
The D-Link DGS-1005D 5-Port Gigabit Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to five PCs or other devices. The DGS-1005D also features QoS, which prioritises network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.
Conserve Energy
The 5-Port Gigabit Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

Specifications

Management features
Switch type	Unmanaged
Web-based management	No
Quality of Service (QoS) support	Yes
Switch layer	L2
Cloud-managed	No
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
I/O ports	5x 10/100/1000BASE-T
Network
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Networking standards	IEEE 802.3
Full duplex	Yes
10G support	No
Data transmission
Packet buffer memory	0.112 MB
MAC address table	8000 entries
Switching capacity	10 Gbit/s
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Security
Access Control List (ACL)	No
Protocols
Data link protocols	Ethernet, Fast Ethernet, Gigabit Ethernet
Design
Safety	CSA
Product colour	White
Stackable	No
LED indicators	Power
Housing material	Plastic
Rack mounting	No
Power
Power supply included	Yes
Power consumption (typical)	4.5 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Data transfer rate	1000 Mbit/s
Dimensions (WxDxH)	142 x 107 x 30 mm
Connectivity technology	Wired
I/O ports	5x 10/100/1000BASE-T
Electromagnetic emissions	CE Mark, FCC Class B
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Weight	80 g
Packaging content
Batteries included	No
Packaging data
Package width	100 mm
Package depth	116 mm
Package height	82 mm
Package weight	222 g
Performance
Packet buffer memory	0.112 MB
Stackable	No
Harmonized System (HS) code	85176990
Technical details
Product colour	White
Stackable	No
Housing material	Plastic
Rack mounting	No
Shipping (inner) case width	25.3 cm
Shipping (inner) case net weight	3.28 kg
Shipping (inner) case length	43.2 cm
Shipping (inner) case height	23.5 cm
Products per shipping (inner) case	20 pc(s)
Products per pallet (sea)	1600 pc(s)
Products per pallet (air)	1600 pc(s)
Pallet gross width	120 cm
Pallet gross length	110 cm
Pallet height (sea)	2.02 m
Pallet height (air)	2.02 m
Pallet gross weight (sea)	411.6 kg
Pallet gross weight (air)	411.6 kg
Master (outer) cases per pallet (sea)	80 pc(s)
Master (outer) cases per pallet (air)	80 pc(s)
Shipping (inner) case gross weight	4.91 kg
Certificates
Safety	CSA
Electromagnetic emissions	CE Mark, FCC Class B
Memory
Packet buffer memory	0.112 MB
Indication
LED indicators	Power
Logistics data
Harmonized System (HS) code	85176990
