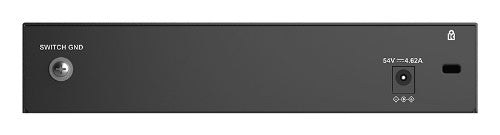

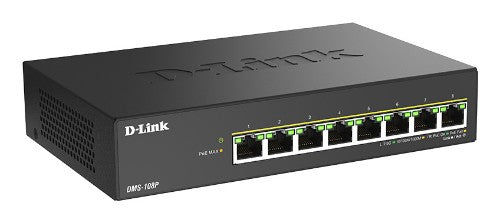

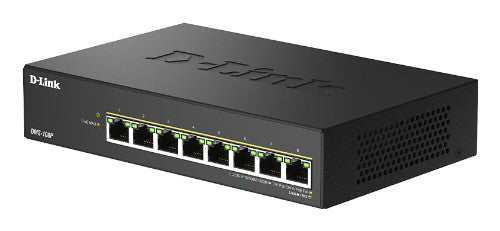

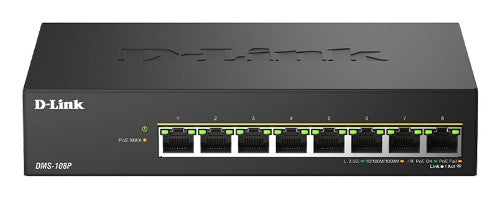

D-Link 8-Port 2.5G Multi-Gigabit PoE++ Unmanaged Switch

8 x 10/100Mbps/1G/2.5G PoE, 40 Gbps, 29.76 Mpps, 190 x 120 x 38 mm, 0.753 Kg

Key Features

• 8-port 2.5GE connectivity for high performance networking
• IEEE 802.3af/at/bt PoE (up to 90W/port), 230W power budget
• Plug and Play simplicity for easy installation
• Fanless design for enhanced reliability and silent performance
• Durable metal housing enhances product durability
• IGMP snooping for optimized bandwidth utilization
• Auto MDI/MDI-X crossover on all ports simplifies setup
• IEEE 802.3x flow control prevents packet loss
• Quality of Service (QoS) ensures uninterrupted connectivity
• IEEE 802.3az reduces power consumption and operating cost

Description

Plug & Play
No complex configurations required for fast and easy network connectivity

Multi-Gigabit​
Multi-Gigabit ports for high data rate transmission

High Power Budget
230W PoE total budget to power more devices

IEEE802.3bt
Up to 90W per port enables high-power devices (PD)

Multicast Optimization
IGMP snooping feature prevents network flooding

Silent Operation
Fanless design for a noise-free working environment

Unleash Wi-Fi 6 via 2.5G Ports
As Wi-Fi 6 (802.11ax) delivers ultra-fast speeds and low latency, standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, unlocking the full potential of Wi-Fi 6 for smoother 4K/8K streaming, HD surveillance, AR/VR gaming, data transfer, and data-intensive environments. Future-proof your network and experience Wi-Fi 6 at its best—fast, reliable, and unrestricted.

Small Size, Big Power
The DMS-108P with IEEE 802.3bt (PoE++) delivers up to 90W per port with a 230W total power budget, enabling high-performance devices without additional power supplies. Ideal for Wi-Fi 6 access points, PTZ cameras, kiosks, smart LED lighting systems, and much more. PoE++ simplifies installation, reduces cabling costs, and enhances energy efficiency.

Smarter Multicast, Smoother Performance
The DMS-108P enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

Prioritize Traffic for Optimized Performance
With the DMS-108P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

Specifications

Management features
Traffic classification	Yes
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
MAC address table	4000 entries
Switching capacity	40 Gbit/s
Store-and-forward	Yes
Forwarding rate	29.76 Mpps
Design
Product colour	Black
Stackable	Yes
LED indicators	Yes
Certification	CB; UL; LVD; FCC; VCCI; IC; BSMI
Performance
Mean time between failures (MTBF)	140688261 h
Stackable	Yes
Power
Power consumption (max)	261.02 W
Power supply included	Yes
Input current	4.62 A
DC input voltage	54 V
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	290 W
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	890.6 BTU/h
Weight & dimensions
Width	190 mm
Depth	120 mm
Height	38 mm
Weight	753 g
Technical details
Product colour	Black
Stackable	Yes
Mean time between failures (MTBF)	140688261 h
Certificates
Certification	CB; UL; LVD; FCC; VCCI; IC; BSMI
Indication
LED indicators	Yes
Other features
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
