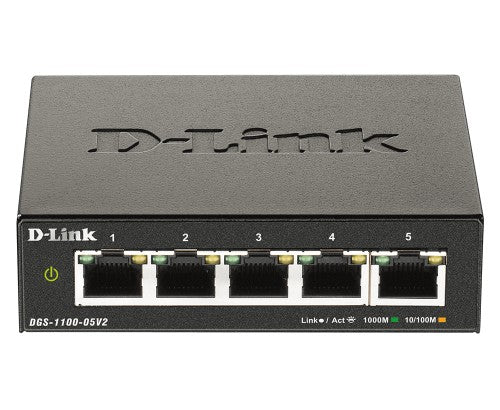

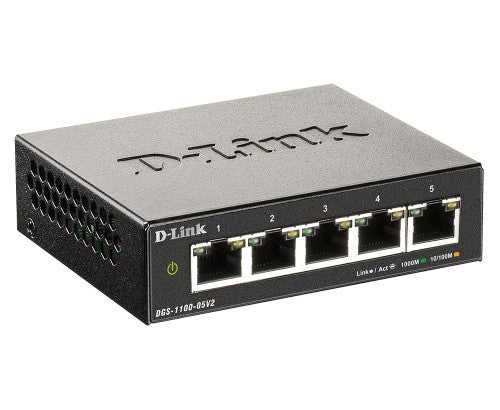

D-Link 5-Port Gigabit Smart Managed Switch

5 x 10/100/1000 Mbps RJ-45, 10 Gbps, 7.44 Mpps, 2K MAC, 100.5 x 82 x 28 mm, UK

Key Features

• 5 x 10/100/1000BASE-T ports
• Compact design for convenient placement
• Fanless design for silent operation
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management

Description

Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

Specifications

Management features
Reset button	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	1000BASE-T
Network
Copper ethernet cabling technology	1000BASE-T
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames	9216
Packet buffer memory	1 MB
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames support	Yes
Forwarding rate	7.4 Mpps
Design
Reset button	Yes
Product colour	Black
Rack mounting	No
Number of fans	0 fan(s)
Performance
Noise level	0 dB
Fanless	Yes
Packet buffer memory	1 MB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	3.42 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	1 A
DC input voltage	5 V
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 2000 m
Weight & dimensions
Width	100.5 mm
Depth	28 mm
Height	82 mm
Weight	230 g
Technical details
Product colour	Black
Noise level	0 dB
Rack mounting	No
Memory
Packet buffer memory	1 MB
Logistics data
Harmonized System (HS) code	85176990
