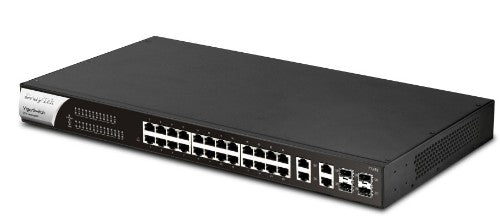

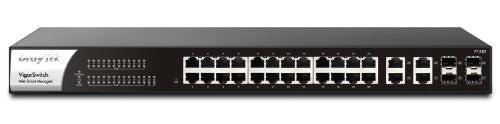

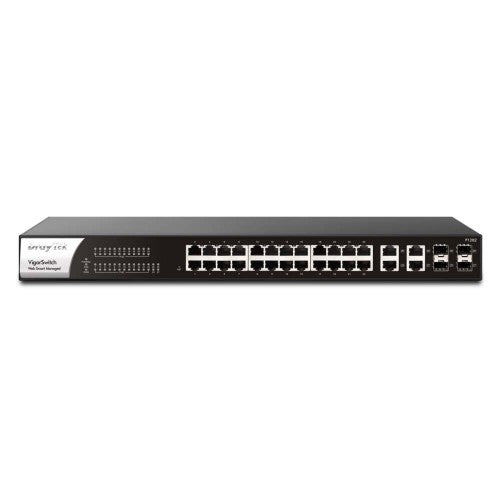

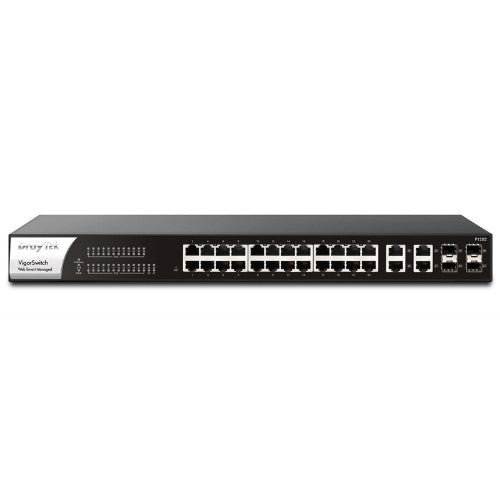

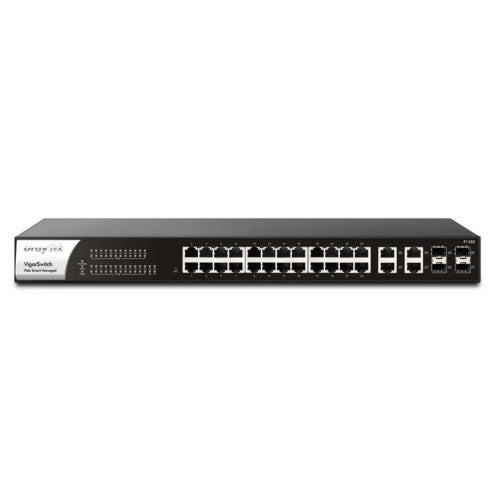

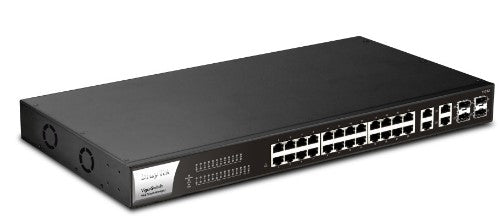

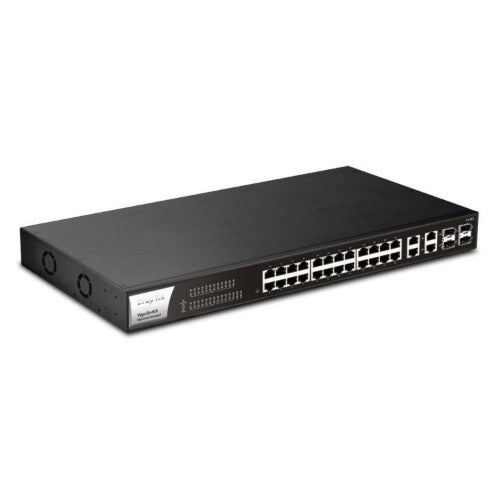

Draytek P1282 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

24 x RJ-45, 4 x RJ-45 / SFP, 400 W, 1U, 441 x 281 x 44 mm, 4.3 Kg

Key Features

• Manage Centrally or Stand-Alone
• Automatic VLAN Assignment
• Useful Security Features
• Smart Power over Ethernet
• IP Camera Management
• 4 SFP Ports for Uplinks

Description

Smart Managed Gigabit Switch with 24 Gigabit PoE+ Ports & 4 SFP Ports The VigorSwitch P1282 is a high-performance, Smart Managed Gigabit Ethernet switch with 4 SFP uplink ports. With 24 PoE+ (Power over Ethernet) RJ-45 LAN ports, it's ideal for powering connected IP phones, IP cameras and wireless access points. The 400 watt PoE power budget provides ample power through Ethernet, to each of its 24 PoE / PoE+ enabled Gigabit LAN ports. Designed for centralised management, the VigorSwitch P1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely. Manage Centrally or Stand-Alone Configure and monitor the switch through the VigorACS cloud management platform, through VigorConnect, through a DrayTek Vigor router, or directly via the device's Web Interface. Automatic VLAN Assignment Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in. Useful Security Features Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard. Smart Power over Ethernet Provides ample power through Ethernet to each of the 24 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & Device Check features ensure your PoE devices are powered and working. IP Camera Management Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems. 4 SFP Ports for Uplinks Uplink to Fibre or direct-attach to additional switches, with 4x Gigabit SFP Ports. Connect switches over long distances with SFP Fibre modules.

Specifications

Management features
Reset button	Yes
Multicast support	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
Console port	RJ-45
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Spanning tree protocol	Yes
Port mirroring	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support	No
Performance
Packet buffer memory	4.1 MB
Fanless	Yes
Technical details
Form factor	1U
Product colour	Black
Rack mounting	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Jumbo frames support	Yes
Forwarding rate	41.7 Mpps
Security
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Memory
Packet buffer memory	4.1 MB
Design
Reset button	Yes
Form factor	1U
Product colour	Black
Rack mounting	Yes
Power
Power consumption (max)	450 W
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (typical)	400 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	441 mm
Depth	281 mm
Height	44 mm
Weight	4.3 kg
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
